Optoma Technology EH330UST Overview
Enjoy bright, clear images at short throw distances with the Optoma EH330UST 3600-Lumen Full HD Ultra-Short Throw DLP Projector. Its 3600 lumens of brightness will overcome ambient light in many settings, while its 20,000:1 dynamic contrast ratio and Full HD 1920 x 1080 native resolution will help ensure that detail is clear. It has an ultra-short 0.25:1 throw ratio, which will allow you to place the projector just 6 to 9" from the screen to prevent the casting of shadows by people walking in front of it; despite this close placement, 80 to 100" images can be produced.
The EH330UST has a VGA and two HDMI inputs to support a variety of devices; a VGA output allows you to daisy-chain the image to another projector or display, while the analog audio input and output will do the same for your audio. A USB Wi-Fi adapter is included to enable wireless presentation from your compatible device. The EH330UST has a built-in 16-Watt speaker to eliminate the need for a separate speaker system. It is controllable via Ethernet, RS-232, or the included IR remote control. A remote control is included as an additional convenience.
- 3600 lumens of brightness and a 20,000:1 dynamic contrast ratio help provide sharp, detailed images
- Computer-free USB image viewer and office document reader
- Wireless presentations and images with the included HDCast Pro Wi-Fi adapter
- USB display screen mirroring with compatible iOS and Android devices
- LAN display via Ethernet with Windows and Mac OS X computers
- Auto keystone and four-corner correction helps simplify installation
Key Features
- Brightness of 3600 Lumens
- Full HD (1920 x 1080) Native Resolution
- Ultra-Short 0.25:1 Throw Ratio
- VGA, 2x HDMI Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Integrated 16W Speaker
- Ethernet, RS-232, and USB Controllable
- USB Wi-Fi Adapter, IR Remote Included
Optoma Technology EH330UST Specs
Image Display
| Display System | 0.65" DMD DLP |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 3600 Lumens |
| Uniformity | 80% |
| Offset | 119% ± 3% |
| Aspect Ratio | Native: 16:9 Supported: 16:10 Supported: 4:3 |
| Dynamic Contrast Ratio | 20,000:1 |
| DLP Link 3D | Yes |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15.375 to 91.146 kHz Vertical: 24 to 85 Hz or 120 Hz |
Lens
| Focus | Manual |
| Optical Zoom | None |
| Throw Distance | 6 - 9" / 15.24 - 22.86 cm |
| Throw Ratio | 0.25:1 |
| Projection Size | 80 - 100" / 203.20 - 254.00 cm |
Features
| Built-In Speaker | Yes |
| Speaker Power | 16W |

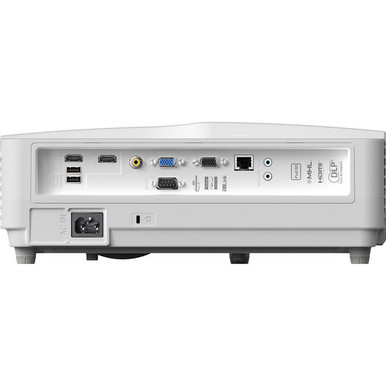

Input/Output Connectors
| Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x RS-232 (DE-9/DB-9) Control 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) LAN 1 x USB 2.0 (USB Type-A) Audio, Remote, Video |
Hardware
| Wireless LAN / Wi-Fi | Yes, with Included Adapter |
General
| Light Source | Lamp |
| Lamp Power | 240 W |
| Expected Lamp Life | Full Brightness: 4000 Hours Medium Brightness: 10,000 Hours Low Brightness: 15,000 Hours |
| Security | Cable Lock Slot |
| Supported Document File Types | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 285 W Low Brightness: 205 W |
| Dimensions (W x H x D) | 13.5 x 4.8 x 15.0" / 34.3 x 12.2 x 38.1 cm |
| Weight | 8.7 lb / 3.95 kg |
Packaging Info
| Package Weight | 12.98 lb |
| Box Dimensions (LxWxH) | 19.7 x 18.2 x 4.9" |
