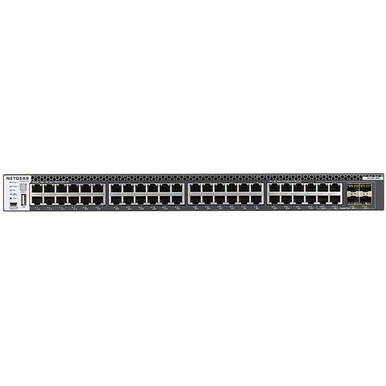

Inputs/Outputs 48x RJ45 10 GbE 4x SFP+ 10 GbE 1x RJ45 Gigabit Ethernet LAN 1x RJ45 RS-232 (Console) 1x Micro-USB 1x USB-A
Stackable Yes
Switching Bandwidth 960 Gb/s (Non-Blocking)
PoE Power Budget 480 W
Layer Services Supported Layer 2, Layer 3, Layer 4
Supported Protocols Auto-VoIP DHCP Server IGMP Snooping IPv4 IPv6 Link Aggregation RADIUS
MAC Address Table Size 128K
Security Features DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control
Latency 1.5 to 2.4 s
Forwarding Rate 714 Mpps
Packet Buffer 56 Mb
Flash Memory 256 MB
CPU Single-Core: Up to 800 MHz
Memory 1 GB
PoE per Port 30 W
Power Draw 577.00 W (Max)
Input Power 110 to 220 VAC, 50 / 60 Hz
Power Supply Type Internal
Certifications CE, EN, VCCI, RCM, CCC, FCC, ANSI, BSMI
Noise Level 40.3 dB
Cooling System Fan
Mean Time Between Failures (MTBF) 0.2 Million Hours
Indicator Lights Yes
Rack Mountable Yes 1 RU
Dimensions 17.3 x 13.6 x 1.7″ / 44 x 34.5 x 4.4 cm
Weight 14.44 lb / 6.55 kg
Package Weight 17.71 lb
Box Dimensions (LxWxH) 22.8 x 17.4 x 3.6″

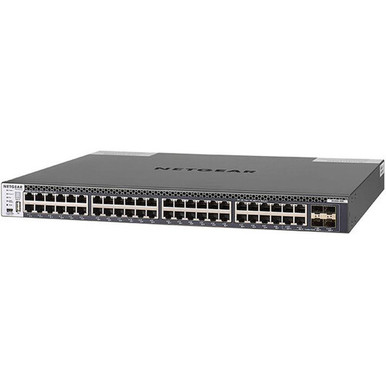

Netgear XSM4348CS-100NES Overview Reliability High Availability (HA)
Netgear XSM4348CS-100NES Overview Nonstop forwarding (NSF) virtual chassis architectures with hitless failover across the stack. Multi-Resiliency
Netgear XSM4348CS-100NES Overview Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities. PVST+ Interoperability
Netgear XSM4348CS-100NES Overview Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP). Link Dependency
Netgear XSM4348CS-100NES Overview Enables or disables ports based on link state of different ports. Advanced IPv4/IPv6 Security
Netgear XSM4348CS-100NES Overview Fully functional web console (GUI) for IT admins who prefer an intuitive graphical interface. Flexible & Efficient
Netgear XSM4348CS-100NES Overview Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks. Mix & Match Stacking
Netgear XSM4348CS-100NES Overview Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit. Room to Grow With PoE+, plug-and-play ports, and hot-swap, you’re ready to grow whenever you need to. Ready for AV-over-IP Zero-Touch AV-over-IP
Netgear XSM4348CS-100NES Overview Preconfigured for out-of-box L2 multicast (SDVoE-ready). No Delay
Netgear XSM4348CS-100NES Overview Non-blocking fabric for near-zero switch latency. Netgear IGMP Plus
Netgear XSM4348CS-100NES Overview Prevent network flooding with multicast implementation of Layer 2 multicast.
Netgear XSM4348CS-100NESSpecs Inputs/Outputs 48x RJ45 10 GbE 4x SFP+ 10 GbE
1x RJ45 Gigabit Ethernet LAN 1x RJ45 RS-232 (Console) 1x Micro-USB 1x USB-A Stackable Yes Switching Bandwidth 960 Gb/s (Non-Blocking)
Netgear XSM4348CS-100NES Overview Single-Core Up to 800 MHz Memory 1 GB Electrical PoE per Port 30 W
PoE Power Budget 480 W Power Draw 577.00 W (Max), Supply Type Internal General Certifications
PoE Power Budget 480 W Input Power 110 to 220 VAC, 50 / 60 Hz
PoE Power Budget 480 W CE, EN, VCCI, RCM, CCC, FCC, ANSI, BSMI
PoE Power Budget 480 W Noise Level 40.3 dB Cooling System Fan
PoE Power Budget 480 W Mean Time Between Failures (MTBF) 0.2 Million Hours Indicator Lights Yes Rack Mountable Yes 1 RU Dimensions 17.3 x 13.6 x 1.7″ / 44 x 34.5 x 4.4 cm Weight 14.44 lb / 6.55 kg Packaging Info Package Weight 17.71 lb
PoE Power Budget 480 W Box Dimensions (LxWxH) 22.8 x 17.4 x 3.6″
