Inputs/Outputs 24x RJ45 10 GbE 4x SFP+ 10 GbE 1x RJ45 Gigabit Ethernet 1x RJ45 RS-232 (Console) 1x Mini-USB LAN 1x USB-A
Stackable No
Switching Bandwidth 480 Gb/s (Non-Blocking)
Layer Services Supported Layer 2, Layer 3, Layer 4
Supported Protocols Auto-MDIX/MDI Auto-VoIP DHCP Server DoS IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS TLS
Queuing Strict Priority
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 16K
Security Features DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control
Latency 1.3 to 2.7 s
Forwarding Rate 357 Mpps
Priority Queues 8
Packet Buffer 32 MB
Flash Memory 256 MB
CPU Single-Core: Up to 800 MHz
Memory 1 GB
Power Draw 125.00 W (Max)
Input Power 110 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal
Operating Temperature 32 to 122 F / 0 to 50 C
Operating Humidity 90%
Storage Temperature -4 to 158 F / -20 to 70 C
Storage Humidity 95% (Non-Condensing)
Noise Level 37.0 dB
Certifications CE, VCCI, RCM, FCC, CCC, CB, BSMI, UL
Cooling System Fan
Mean Time Between Failures (MTBF) 0.2 Million Hours
Indicator Lights Yes
Rack Mountable Yes 1 RU
Dimensions 13.58 x 8.35 x 1.73″ / 34.49 x 21.21 x 4.39 cm
Weight 9.12 lb / 4.14 kg
Package Weight 12.555 lb
Box Dimensions (LxWxH) 23.1 x 13.8 x 3.5″

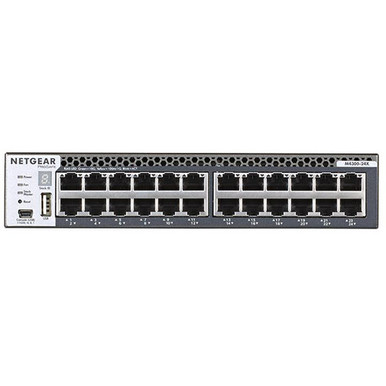

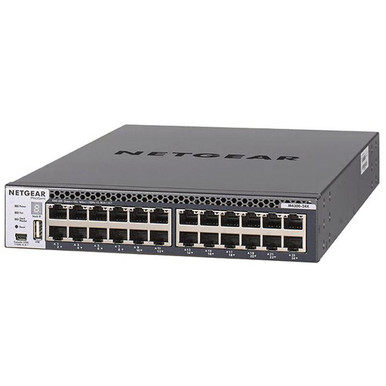

Netgear XSM4324CS-100NES Overview Reliability High Availability (HA)
Netgear XSM4324CS-100NES Overview Nonstop forwarding (NSF) virtual chassis architectures with hitless failover across the stack. Multi-Resiliency
Netgear XSM4324CS-100NES Overview Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities. PVST+ Interoperability
Netgear XSM4324CS-100NES Overview Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP). Link Dependency
Netgear XSM4324CS-100NES Overview Enables or disables ports based on link state of different ports. Advanced IPv4/IPv6 Security
Netgear XSM4324CS-100NES Overview Fully functional web console (GUI) for IT admins who prefer an intuitive graphical interface. Flexible & Efficient
Netgear XSM4324CS-100NES Overview Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks. Mix & Match Stacking
Netgear XSM4324CS-100NES Overview Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit. Room to Grow With PoE+, plug-and-play ports, and hot-swap, you’re ready to grow whenever you need to.
Ready for AV-over-IP Zero-Touch AV-over-IP Preconfigured for out-of-box L2 multicast (SDVoE-ready). No Delay
Ready for AV-over-IP Zero-Touch AV-over-IP Non-blocking fabric for near-zero switch latency. Netgear IGMP Plus
Ready for AV-over-IP Zero-Touch AV-over-IP Prevent network flooding with multicast implementation of Layer 2 multicast.
Netgear XSM4324CS-100NESSpecs Inputs/Outputs 24x RJ45 10 GbE 4x SFP+ 10 GbE 1x RJ45 Gigabit Ethernet 1x RJ45 RS-232 (Console)
Ready for AV-over-IP Zero-Touch AV-over-IP Single-Core Up to 800 MHz Memory 1 GB Electrical
Ready for AV-over-IP Zero-Touch AV-over-IP Power Draw 125.00 W (Max)
Ready for AV-over-IP Zero-Touch AV-over-IP Input Power 110 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal Environmental Operating Temperature 32 to 122 F / 0 to 50 C
Power Supply Type Internal Environmental Operating Humidity 90% Storage Temperature -4 to 158 F / -20 to 70 C Storage Humidity 95% (Non-Condensing)
Power Supply Type Internal Environmental Noise Level 37.0 dB General Certifications
Power Supply Type Internal Environmental CE, VCCI, RCM, FCC, CCC, CB, BSMI, UL Cooling System Fan
Power Supply Type Internal Environmental Mean Time Between Failures (MTBF) 0.2 Million Hours Indicator Lights Yes Rack Mountable Yes 1 RU Dimensions 13.58 x 8.35 x 1.73″ / 34.49 x 21.21 x 4.39 cm Weight 9.12 lb / 4.14 kg Packaging Info Package Weight 12.555 lb
Power Supply Type Internal Environmental Box Dimensions (LxWxH) 23.1 x 13.8 x 3.5″
