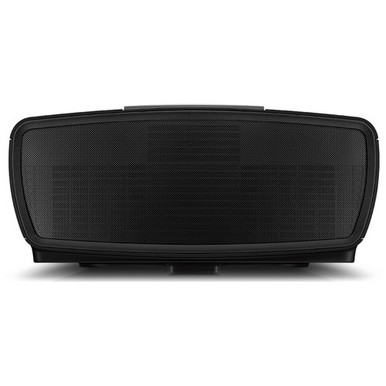

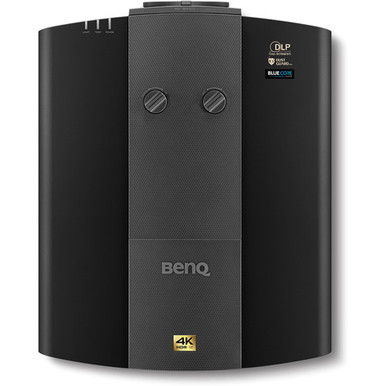

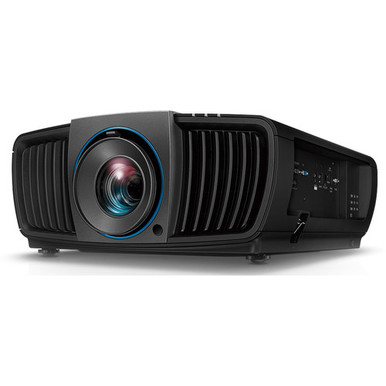

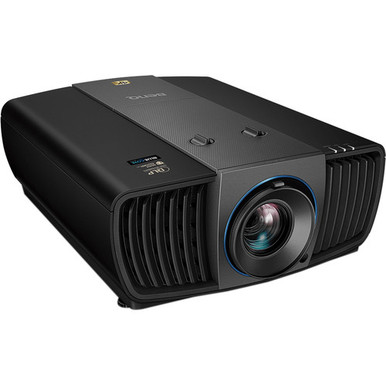

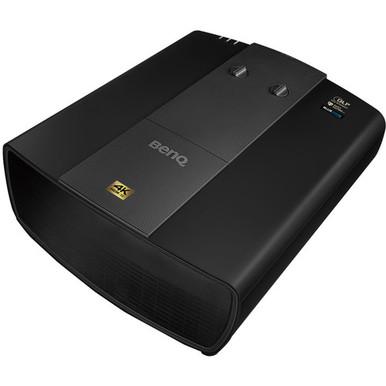

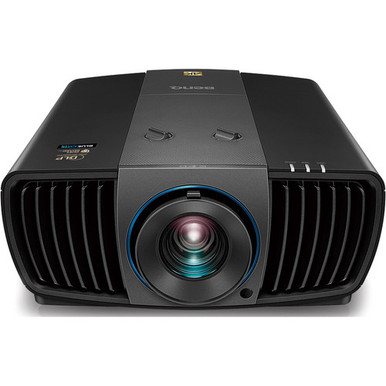

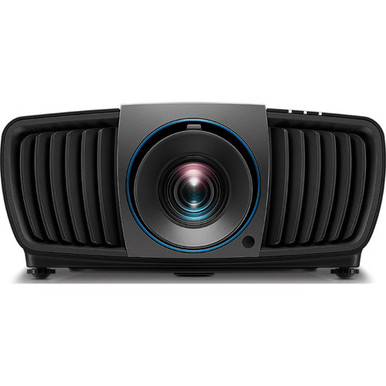

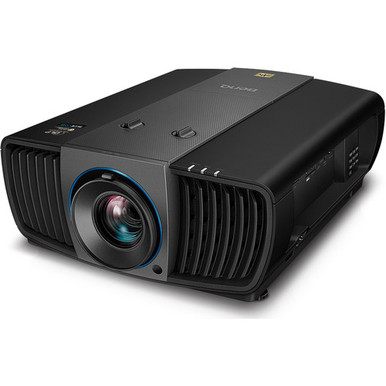

Enjoy UHD 4K resolution with compatible content in nearly any environment with the BenQ LK990 6000-Lumen XPR 4K UHD Laser DLP Projector. Its 6000 lumens of brightness overcomes ambient light in many situations, while its 3,000,000:1 dynamic contrast ratio helps keep images and text clear and distinct. Its 1.38 to 2.02:1 throw ratio and 1.47x zoom provide a range of installation options.

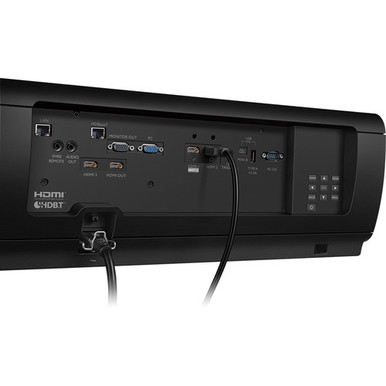

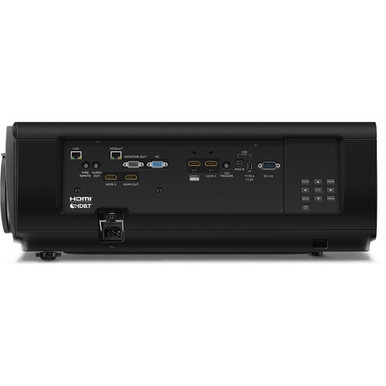

The LK990 has HDBaseT, VGA, and three HDMI inputs to support both analog and digital video sources. Its HDMI output allows you to daisy-chain multiple projectors or displays to show the same video source, and the 1/8″ audio output to connect external speakers. It is controllable via Ethernet, HDBaseT, or RS-232 and includes a remote control.
Key Features
- Brightness of 6000 Lumens
- XPR 4K UHD On-Screen Resolution
- 1.38 to 2.02:1 Throw Ratio
- HDBaseT, VGA, 3x HDMI-In
- HDMI Output for Loop-Through
- Analog Audio Input and Output
- Controllable by Popular Control Systems
- HDBaseT, Ethernet, RS-232 Controllable
- IR Remote Included
BlueCore Laser Technology
Enhanced Brightness
The virtually zero-deviation alignment of the BlueCore laser diodes helps boost luminous flux into the light tunnel to produce up to 6000 lumens of brightness.
Secondary Yellow-Infused Color Wheel
Dual synchronized BlueCore color wheels use an additive yellow segment, simulating the RGBY spectrum for augmented chromatic performance that achieves up to 92% of Rec.709 color coverage.
Hermetically Sealed DLP Chip
The DLP chip is hermetically sealed to resist heat to help it provide up to 100,000 hours of life without degradation.
Designed for Long-Lasting Image Quality
XPR 4K UHD Resolution for Enhanced Detail
XPR technology combines image processing with the ability of the DMD’s mirrors to shift at the microsecond level to allow each mirror to project two pixels per frame, creating a UHD 4K image from an otherwise non-UHD chip.
DLP Technology
The BlueCore line of projectors use a single-chip DLP designed to produce true-to-life colors and legible text with virtually no blurring, shadowing, or interference patterns. The DLP chip can last up to 100,000 hours without degradation.
HDR10 Compatibility
With HDR10 support and BenQ’s Auto HDR Color Rendition, the LK990 is engineered to provide enhanced brightness, contrast, and image optimization in a single step.
Auto HDR Natural Color Rendition
This technology is designed to provide lifelike color performance that’s automatically tuned to reflect nature.
4K Image Amplifying Technology with Pixel Enhancer 4K
4K Image Amplifying Technology is engineered to automatically upgrade the resolution of all projected images to 4K for enhanced detail. Additionally, the LK990 also has Pixel Enhancer 4K, a motion-adaptive edge-enhancement feature designed to detect changes in the color between an object and its background to help produce sharp edges and precise surface textures.
High Brightness for Clarity in Bright Environments
The LK990 outputs up to 6000 lumens of brightness for enhanced image quality in bright environments like sports bars, private guesthouses, or weather-protected outdoor installations.
Laser-Powered High Dynamic Contrast
Thanks to its laser light source, the LK990 provides up to a 3,000,000:1 dynamic contrast ratio for deep blacks, vivid colors, and fine detail. It also features spontaneous response, requiring virtually no wait time to turn it on or resume from screen blanking.
DICOM Simulation Mode
The LK990 offers a DICOM Simulation Mode that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function, for display of grayscale images. The DICOM Simulation Mode, which supports both Blue and Clear Base, adjusts the gradation between the minimum and the maximum luminance, so gradation is distributed optimally. This feature is optimized for displaying medical images such as X-rays, CAT scans, and MRIs, which makes the LK990 useful for non-diagnostic purposes such as lectures, academic meetings, and hospital conferences. This feature is recommended for use in medical schools for training and educational use only.
Engineered for Enhanced Reliability
Designed for up to 20,000 Hours of Performance
The laser light source can last up to 20,000 hours, resisting color decay over time, making the LK990 well suited for presentation or exhibition applications.
Dustproofing for Severe Conditions
The LK990 is designed with sealed laser modules and enclosed light engines to help protect the DMD chip, color wheel sensor, laser light source, and other optical components. The lock-and-key design hermetically seals the engine from dust (IEC Standard 60529IP6X) to help prolong projector lifespan.
Dual Integrated Cooling Systems
The LK990 uses two cooling systems designed to help ensure optimal thermal conduction during operation. The circulatory liquid cooling system helps protect the laser light source and DLP engine, even after constant operation in ambient temperatures up to 104°F, while the heat pipe cooling system cools the DMD chip for enhanced reliability. Additionally, the LK990 has a series of embedded thermal sensors to control the projector’s temperature and ensure optimal operation. These sensors can detect the temperature of the laser system and surrounding environment in real time and automatically adjust the speed of the fans.
High Altitude Mode for Elevated Environments
Equipped with an integrated air pressure sensor, the LK990’s High Altitude Mode automatically alerts you to enable efficient cooling and properly maintain operating temperatures in high-altitude environments with thinner atmospheres.
Installation Flexibility
360° Rotation Projection
The LK990 can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors, or angled signage to fulfill nearly any projection demand.
Zoom and Lens Shift
The horizontal and vertical lens shift options, as well as 1.47x zoom, help you align images in nearly any challenging venue, such as when lights or vents are located in the mounting area. Lens shift enables you to move the image up or down by 60% of the screen height or left or right by 25% of the screen width, while the zoom offers a wider range of throw distances for installation flexibility in various scenarios.
Digital Image Shrink
This feature lets installers shrink the image to 75% of its original size in 0.5% increments via the OSD menu, allowing installers to more easily fit an image within the desired frame.
Remote Control ID Setting for Independent Control
Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.
Integrated Network Control and Management System Compatibility
Designed for Comprehensive Control System Compatibility
The LK990 is compatible with a number of projector control systems, including Crestron, AMX, and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, the LK990 also supports RS-232 for reliable long-distance installations up to 49′.
Centralized Control with BenQ MDA Software
BenQ Multiple Display Administrator (MDA) software provides centralized multiple-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.
HDBaseT Compatibility
HDBaseT connectivity combines video, audio, and device control signals from multiple sources including computers, laptops, document cameras, and Blu-ray players onto a single CAT5 cable, helping to ensure seamless transmissions up to 328′.
Engineered for Low Maintenance Costs
Laser Light Source Provides Value over Time
With the laser light source lasting up to 20,000 hours of maintenance-free operation, the costs associated with lamp replacement and maintenance are virtually eliminated. Based on the average brightness cutoff of typical lamps, the laser light source can exceed 10 lamp replacements over the lifetime of the laser.
BenQ LK990 Specs
Image Display
| Display System | 0.67″ DC3 DMD DLP |
| Native Chip Resolution | 2716 x 1528 |
| On-Screen Resolution | Up to UHD 4K (3840 x 2160) via Pixel-Shift Technology |
| Maximum Brightness | 6000 Lumens |
| Aspect Ratio | Native: 16:9 |
| Dynamic Contrast Ratio | 3,000,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 135 kHz Vertical: 23 to 120 Hz |
Lens
| Focus | Manual |
| Lens Shift | Horizontal: ± 25% Vertical: ± 60% |
| Optical Zoom | Manual: 1.47x |
| Throw Ratio | 1.38 to 2.02:1 |
| Projection Size | 30 – 300″ / 76.20 – 762.00 cm |
Features
| Keystone Correction | None |
| Ceiling Mountable | Yes |
| Built-In Speaker | None |
| Projection Tilt Option | Yes |
Input/Output Connectors
| Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Control, Video Input/Output 3 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDMI (HDMI Type-A) Audio, Video Output 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN Input/Output 1 x 1/8″ / 3.5 mm Mini Remote Input 1 x 12 V Trigger Control Output 1 x RS-232 (DE-9/DB-9) Control Input 1 x USB 2.0 (Mini-USB) Service Input 1 x USB 2.0 (USB Type-A) Power Output |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Full Brightness: 37 dB Low Brightness: 34 dB |
| Security | Security Bar |
| Supported Languages | Arabic Bulgarian Croatian Czech Danish Dutch English Finnish French German Greek Hindi Hungarian Indonesian Italian Japanese Korean Norwegian Persian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 745 W Medium Brightness: 655 W Low Brightness: 470 W Standby Mode (Lamp Off): < 2 W |
| Dimensions (W x H x D) | 18.5 x 8.9 x 22.2″ / 470.7 x 224.9 x 564.7 mm |
| Weight | 44.53 lb / 20.2 kg |
