Image Sensor 1/2.3″-Type CMOS
Sensor Resolution Actual: 9.03 Megapixel Effective: 8.93 Megapixel
Optical Zoom Ratio 12x
Max Digital Zoom 1.7x
External Recording Modes SDI/BNC / HDMI 3840 x 2160 up to 29.97 fps
Broadcast Output NTSC
Supported Control Protocols IP RS-232
PoE Support PoE++ 802.3bt
Focus Control Autofocus Manual Focus
Minimum Illumination 100 Lux
Flip / Mirror Support Mirror (Vertical)
White Balance Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Focal Length 10 to 120mm
Field of View Horizontal: 74 to 4.8
Presets 16
Pan/Tilt Pan: 320 (-160 to 160 ) at 0.35 to 120 /s Tilt: 120 (-30 to 90 ) at 0.35 to 120 /s
Video I/O 1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output
Other I/O 1x RJ45 (RS-232) 1x RJ45 (LAN)
Power Consumption Power Supply: 12 VDC at 3 A
Operating Conditions 23 to 140 F / -5 to 60 C at 20 to 80% Humidity
Storage Conditions -4 to 140 F / -20 to 60 C at 20 to 95% Humidity
Certifications CE, FCC, TAA, UL
Dimensions (W x H x D) 8 x 7.9 x 7.7″ / 20.3 x 20.1 x 19.6 cm
Weight 6 lb / 2.7 kg (Body Only)
Package Weight 11.2 lb
Box Dimensions (LxWxH) 13.5 x 13.5 x 11.8″
Purple boot-up and Standby modes
Blue normal operation and is a power on, ready condition
Blinking blue the camera has received IR from the remote or other IR source
Red tally function shows that the camera is on-air
Blinking red fault condition
Yellow firmware update is in progress
Vaddio RoboSHOT 20 Overview The PTZ camera features a 20x total zoom range with 74 angle of view at wide, with a 4.8 angle of view at maximum zoom in. The OneLINK features HDMI, HDBaseT, IP, and HD-SDI video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet.
Vaddio RoboSHOT 20 Overview Vaddio RoboSHOT 20 UHD Ultra High Definition PTZ Camera (White), OneLINK Bridge A/V Interface Receiver for HDBaseT Cameras (North America)

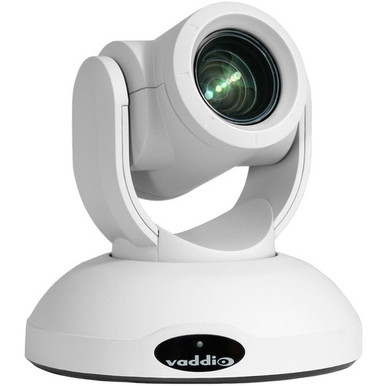

Vaddio RoboSHOT 20 Overview This white RoboSHOT 20 UHD Ultra High-Definition PTZ Camera from Vaddio is suitable for use in distance learning, corporate, and house of worship. It captures UHD 4K (3840 x 2160) at 30p from a single 1/2.3″ type Exmor R sensor. Featuring a 12x optical zoom, with a 1.67x digital zoom for a 20x total zoom range, the camera has a 74 angle of view at wide, with a 4.8 angle of view when zoomed in all the way.
The camera simultaneously outputs HDMI, HDBaseT, 3G-SDI, and IP streaming, so there is no concern about selecting an output port. You can control the camera from a networked computer via the Ethernet port, and an included IR remote provides local control. You can tell at a glance the status of the unit thanks to a built-in LED that changes color to indicate the state of the camera.
The camera’s outputs are active at all times, so there is no need to select one output over another. This also allows you to output to more than one display device or recorder at the same time. The built-in IP streaming simplifies streaming your video over a network.
HDBaseT provides power over an Ethernet cable, so you are not limited where you can mount the camera by needing an AC outlet. You can mount this camera wherever you can run an Ethernet cable. Please note that you will need a network that supports HDBaseT to take advantage of this feature.
Vaddio RoboSHOT 20 Overview You can control the camera via the included IR remote commander, the RS-232 port, or the HDBaseT port.
Vaddio RoboSHOT 20 Overview The camera features built-in web based interface for control via your browser. Status Indicator LED
Vaddio RoboSHOT 20 Overview Purple boot-up and Standby modes
Vaddio RoboSHOT 20 Overview Blue normal operation and is a power on, ready condition
Vaddio RoboSHOT 20 Overview Blinking blue the camera has received IR from the remote or other IR source
Vaddio RoboSHOT 20 Overview Red tally function shows that the camera is on-air
Vaddio RoboSHOT 20 Overview Blinking red fault condition
Vaddio RoboSHOT 20 Overview Yellow firmware update is in progress
Vaddio RoboSHOT 20 Overview The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328′.
Vaddio RoboSHOT 20 Overview Converts any conference room to a BYOD environment, delivering a USB stream for soft conferencing clients
Vaddio RoboSHOT 20 Overview Connects professional A/V equipment to PC applications via USB 3.0 media stream
Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3 Gb/s HD-SDI
Two balanced audio inputs and two balanced audio outputs
Vaddio RoboSHOT 20 Overview Control via web interface or Telnet Status lights Vaddio RoboSHOT 20Specs Key Specs Image Sensor
Vaddio RoboSHOT 20 Overview Actual 9.03 Megapixel
Vaddio RoboSHOT 20 Overview Effective 8.93 Megapixel
Vaddio RoboSHOT 20 Overview Optical Zoom Ratio 12x Max Digital Zoom 1.7x External Recording Modes SDI/BNC / HDMI 3840 x 2160 up to 29.97 fps Broadcast Output NTSC Supported Control Protocols IP RS-232 PoE Support PoE++ 802.3bt Imaging Image Sensor
Vaddio RoboSHOT 20 Overview Focus Control Autofocus Manual Focus Exposure Control Minimum Illumination 100 Lux Flip / Mirror Support Mirror (Vertical) White Balance
Vaddio RoboSHOT 20 Overview Presets ATW, Auto, Indoors, Manual, One Push, Outdoors Lens
Focal Length 10 to 120mm Optical Zoom Ratio 12x Max Digital Zoom 1.7x Field of View
Focal Length 10 to 120mm Horizontal 74 to 4.8
Focal Length 10 to 120mm Video Capture External Recording Modes SDI/BNC / HDMI 3840 x 2160 up to 29.97 fps Broadcast Output NTSC Control Presets 16 Pan/Tilt, I/O 1x BNC (3G-SDI) Output
Focal Length 10 to 120mm Pan 320 (-160 to 160 ) at 0.35 to 120 /s
Focal Length 10 to 120mm Tilt 120 (-30 to 90 ) at 0.35 to 120 /s Supported Control Protocols IP RS-232 Interface
Focal Length 10 to 120mm 1x HDMI (Unspecified Signal) Output Other I/O 1x RJ45 (RS-232) 1x RJ45 (LAN) Power PoE Support PoE++ 802.3bt
Power Consumption Power Supply 12 VDC at 3 A Environmental
Power Consumption Operating Conditions 23 to 140 F / -5 to 60 C at 20 to 80% Humidity Storage Conditions
Power Consumption -4 to 140 F / -20 to 60 C at 20 to 95% Humidity General Certifications CE, FCC, TAA, UL
Power Consumption Dimensions (W x H x D) 8 x 7.9 x 7.7″ / 20.3 x 20.1 x 19.6 cm Weight 6 lb / 2.7 kg (Body Only) Packaging Info Package Weight 11.2 lb
Power Consumption Box Dimensions (LxWxH) 13.5 x 13.5 x 11.8″
