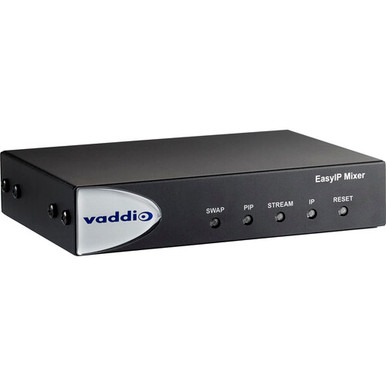

The EasyIP Video Mixer from Vaddio combines Dante audio sources and four VaddioEasyIP cameras to deliver our easiest production switcher todate. The EasyIP Mixer revolutionizes the complex classroom A/Vsystem, replacing expensive HDMI cable runs with categorycables and saving precious time with simple video and audiorouting in an intuitive web-based user interface. Pair the EasyIP Mixer with up to four EasyIP cameras located on the network. The additional HDMI input allows you to connect a PC for simple content sharing on a platform that easily switchesbetween sources and delivers useful picture-in-picture (PIP) layouts. Simultaneous 1080p/60 USB 3.0 and HDMI outputs allow for multipurpose video distribution. Use the EasyIP Mixer to simultaneously record to a local PC and magnify the speakervideo through a room projector. Or use the USB 3.0 interface with popular videoconferencing applications – including UVC control of connected cameras.

The system is based around a PoE+ network switch that provides the power and control capabilities for the EasyIP Cameras as well as the EasyIPCeilingMIC D microphones. Next, pair the EasyIP Mixer to the same network and pair the desired endpoints with the included web-based user interface. No expensive external processors, no costly management software tools – the whole system can beconfigured in minutes.

• Mix up to 4 x EasyIP Cameras
• Mix up to 4 x Dante I/O, 2 x Analog I/O
• PoE+ Switch Provides Power & Control
• Dante I/O for Scalable Networked Audio

Specifications

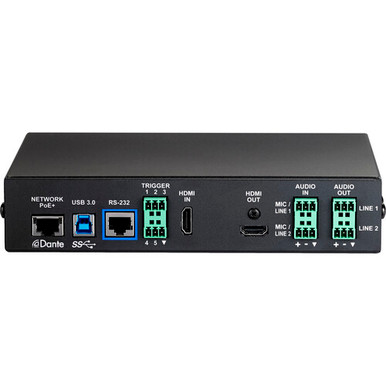

Connections
Video Inputs :
HDMI In, up to 1080p/60 resolution (Full HD), Pair with up to 4 EasyIP cameras

HDMI Input :
Video and audio; up to1080p/60 Resolution (Full HD)

HDMI Output : Video and audio; up to1080p/60 Resolution (Full HD)

Audio Inputs :
Stereo USB, Stereo HDMI, Two balanced mic/line-level inputs, 4 Dante Input
Channels

Audio Outputs :
Stereo USB, Stereo HDMI, Two balanced line-level outputs, 4 Dante Output
Channels

Standards
USB Audio :
(record, playback)
2 channel (UAC), 16-bit resolution, 48 KHz sample rate
Audio Line :

Out 4-pin Phoenix type terminal block, Impedance: 50 ohms, Frequency response 20Hz –
20KHz, THD + noise < 0.02%, Maximum output level +12 dBu differential audio

Software
Browser-based user interface for configuration and administration; front panel
controls for IP address toggle, power reset, and factory reset; Telnet and RS-232
for external control

General
Power Requirements :

PoE+, 30W allocated, 14W typical use
Phantom Power to
Microphones :
48 VDC, 10 mA
Height : 1.72 in. (4.4 cm)
Width : 8.38 in. (21.3 cm)
Depth : 6.0 in. (15.2 cm)
Weight : 2.65 lb. (1.2 kg)
Operating temperature :

32° to 104° F (0° to 40° C)
Storage temperature :

23° to 140° F (-5° to 60° C)

Humidity (relative) : Operating and Storage: 20% to 80% non-condensing
