Tripp Lite B013-HU-4K: HDBaseT KVM and HDMI Extender

The Tripp Lite B013-HU-4K is a complete KVM (Keyboard, Video, Mouse) console extender kit designed to overcome distance limitations in commercial, industrial, and IT environments. This solution uses the reliable HDBaseT standard to transmit high-definition video, two-port USB, and IR control signals over a single, inexpensive Cat6 cable.

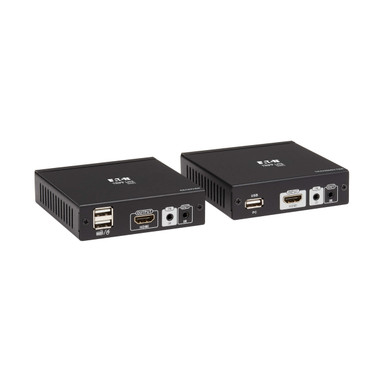

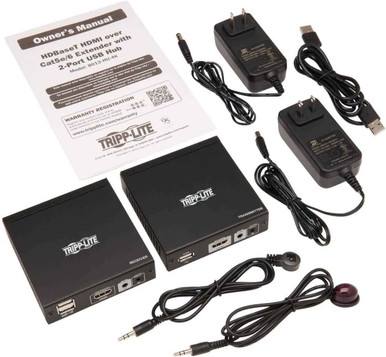

The kit consists of a transmitter (connects to the source computer) and a receiver (connects to the console/peripherals), offering flexible distance capabilities:

• 4K times 2K (3840 * 2160$) @ $30 Hz: Up to 130 ft 40m

• 1080p @ 60Hz: Up to 230ft 70m

Key Features & Technical Specifications

• Signal Extension: KVM (USB), HDMI Video, and Bi-directional IR Control.

• Technology: HDBaseT (Simplified single-cable installation).

• Resolution/Distance: $4text{K}@30text{Hz}$ up to $40text{ m}$; $1080text{p}@60text{Hz}$ up to $70text{ m}$.

• USB Support: The receiver includes two USB ports for connecting a keyboard, mouse, or other USB 2.0 peripherals

• IR Control: Bi-directional IR pass-through allows control of the source device (e.g., Blu-ray player) from the remote console or vice-versa.

• PoE Support: Supports Power over Cable (PoC), meaning only one unit (typically the transmitter) needs a power connection, powering the remote unit over the Cat6 cable.

• Compliance: HDCP 1.4 compliant.
