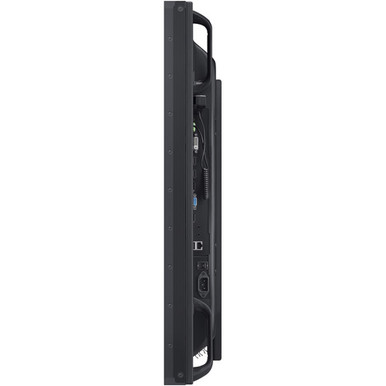

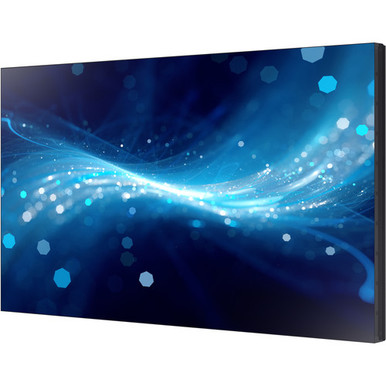

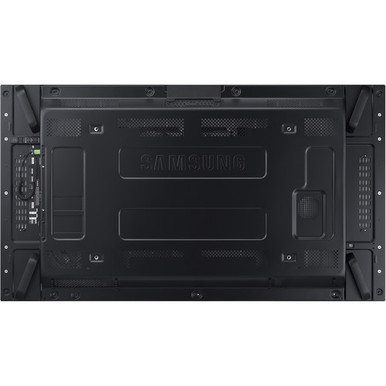

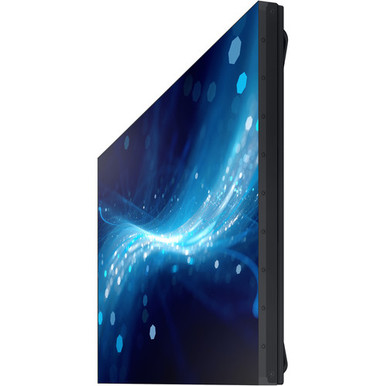

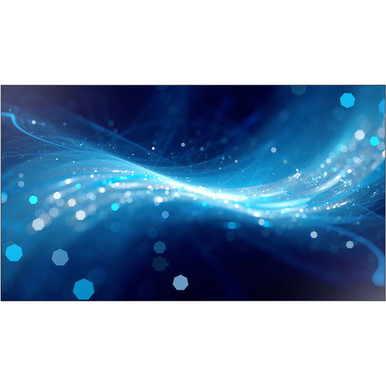

Display your advertising and signage content in bright indoor settings with the Samsung UHN-E Series 46″ Class Full HD Video Wall Display. Its 700 cd/m² brightness and 4000:1 contrast ratio help provide easily readable text and bright graphics in environments with high ambient light. You can mount it in landscape or portrait orientation and create video walls thanks to its slim bezel design. DisplayPort, DVI-D, and two HDMI inputs let you connect various types of source devices, and a DisplayPort output daisy chains multiple displays together for simplified video wall installation.
Key Features
- Full HD (1920 x 1080) Native Resolution
- Brightness of 700 cd/m²
- 8 ms Response Time
- 4000:1 Contrast Ratio
- Built-In Ethernet Connectivity
- DisplayPort, DVI-D, VGA, 2x HDMI Inputs
- Landscape or Portrait Orientation
- Digital Signage-Capable
- Suitable for 24/7 Use
Narrow Bezel Design
The UH46N-E features a bezel-to-bezel thickness of just 1.7mm so you can create virtually seamless video walls.
Non-Glare, 700 cd/m² Panel for Enhanced Visibility
The non-glare panel features 700 cd/m² brightness to help improve visibility of your message in bright ambient light.
Built for 24/7 Use
This display is built for continuous 24/7 use with commercial-level cooling technologies, so you can meet around-the-clock operating requirements in venues ranging from retail storefronts to public spaces.
Factory Calibration
Factory calibration helps ensure uniform brightness and minimize color differences across multiple displays, so you can experience color uniformity right out of the box for consistent video wall matrices. You can also manage the brightness and color uniformity with Samsung’s Color Expert Pro, a free digital signage software program.
Easy Mobile Calibration
Samsung’s Color Expert Pro Mobile solution provides quick and easy video wall calibration through a mobile camera. With the software’s interface, you can adjust the white balance of multiple displays simultaneously in up to a 5×5 video wall without additional equipment.
Create 4K UHD Video Walls
Daisy chain up to 25 displays with the DisplayPort loop-out feature to achieve 4K UHD resolution to deliver content with fine detail for an impactful experience without additional computers, graphics cards, or splitters.
Additional Features
- MEGA DCR contrast ratio technology
- Detachable IR & ambient sensor
- ACM (Advanced Color Management) support
- Auto source switching & recovery
- Temperature sensor
- RS232C/RJ45 MDC
- Plug and Play (DEDC2B)
- Video wall compatible (up to 15×15 via OSD)
- Pivot display
- Image rotation
- Button lock
- HDCP support
- Smart F/W update
- Clock battery (up to 80 hours clock keeping)
- Optional SBB (slide in), signage player box
Samsung UH46N-E Specs
Display
| Screen Size (Diagonal) | 46″ |
| Resolution | 1920 x 1080 |
| Panel Type | LCD |
| Brightness | 700 cd/m² (Maximum) |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Direct LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 Audio, Video 1 x 15-Pin VGA Video 1 x DVI-D Video 1 x DisplayPort 1.2 Audio, Video 1 x 1/8″ / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort 1.2 – Audio, Video 1 x 1/8″ / 3.5 mm – Audio |
| USB Ports | 1 x USB (Version Unspecified) Type-A – Service |
| Ethernet Ports | 1 |
| Control | RS-232C via DE-9/DB-9 Input RS-232C via DE-9/DB-9 Output |
| Other I/O | 1 x 1/8″ / 3.5 mm IR / Ambient Sensor Input |
| Number of OPS/Expansion Slots | 1 |
General
| TV Tuner | No |
| HDCP Support | Yes, Version 2.2 |
| Maximum Multiple Display Configuration | 15 x 15 |
| Ambient Light Sensor | Yes |
Surface
| Haze Level | 25% |
Audio
| Built-In Speakers | None |
Electrical
| Power Consumption | Typical: 102.0 W Maximum: 187.0 W Standby: < 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
Physical
| Wall Mounting | 600 x 400 mm |
| Bezel Thickness | 1.15 mm (Top/Left) 0.55 mm (Bottom/Right) 1.7 mm (Bezel-to-Bezel) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 40.2 x 22.6 x 3.8″ / 102.1 x 57.4 x 9.7 cm |
| Weight | 34.6 lb / 15.7 kg |
