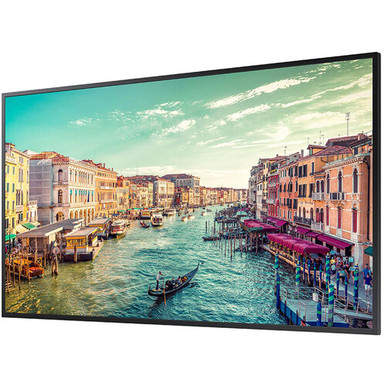

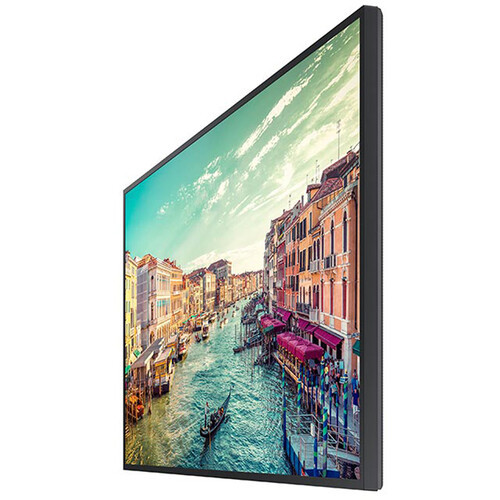

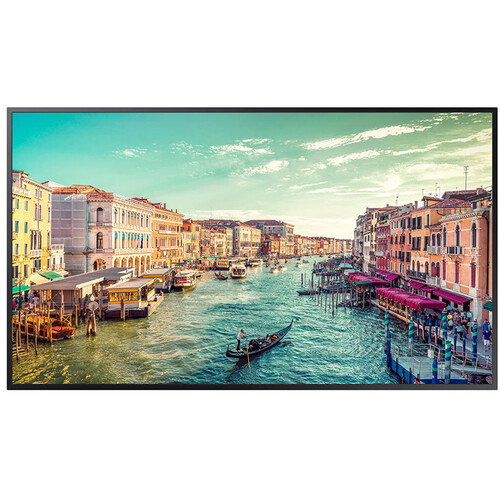

The 50” UHD Display Monitor by Samsung display solutions is a dynamic equipment that delivers life-like imagery on the screen. The Samsung digital signage TV delivers UHD resolution with Dynamic Crystal Color technology. This unit is equipped with the Crystal Processor 4k technology. This monitor has a non-glare display for better visibility. It can display up to 24 hours with premium-grade performance. The symmetrical and slim design with organized cable management of this unit makes it suitable for residential and commercial purposes.

• UHD resolution
• Crystal Processor 4k technology
• Dynamic Crystal Color
• Non-Glare Display
• Slim Design
• 24 x 7 cycle
• Clean cable management
• Compatible with Tizen 4.

Specifications:

Panel

• Diagonal Size50"
• TypeEdge LED BLU
• Resolution3840*2160 (4K UHD)
• Pixel Pitch(mm)0.285 x 0.285
• Active Display Area(mm)1073.78(H) x 604.00(V)
• Brightness(Typ.)500 nit
• Contrast Ratio4000:1
• Viewing Angle(H/V)178/178
• Response Time(G-to-G)8ms(Typ.)
• Display Colors16.7M(True Display)1.07B(Ditherd 10bit)
• Color Gamut92% (DCI-P3, CIE 1976)
• Operation Hour24/7
• Haze28%

Display

• Dynamic C/RMEGA
• H-Scanning Frequency30 ~ 81kHZ
• V-Scanning Frequency48 ~ 75HZ
• Maximum Pixel Frequency594MHz

Sound

• Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

Input

• RGBDisplay Port 1.2 (1)
• VideoHDMI 2.0 (2)
• HDCPHDCP2.2
• AudioStereo Mini Jack, HDMI/Audio(Common)
• USBUSB 2.0 x 2

Output

• AudioStereo mini Jack

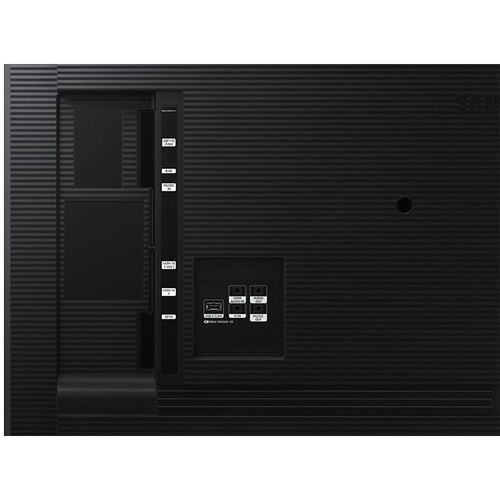

• External ControlRS232C(in/out) thru stereo jack, RJ45
• External SensorIR

Power

• TypeInternal
• Power SupplyAC 100 - 240 V, 50/60 Hz

Power Consumption

• Max[W/h]170.5
• Typical[W/h]117.0
• Rating[W/h]155.0
• BTU(Max)581.4
• Sleep mode0.5

Mechanical Specification

Dimension (mm)

• Set1121.4 x 643.9 x 46.3
• Package1269 x 784 x 152

Weight (kg)

• Set13.4
• Package17.6

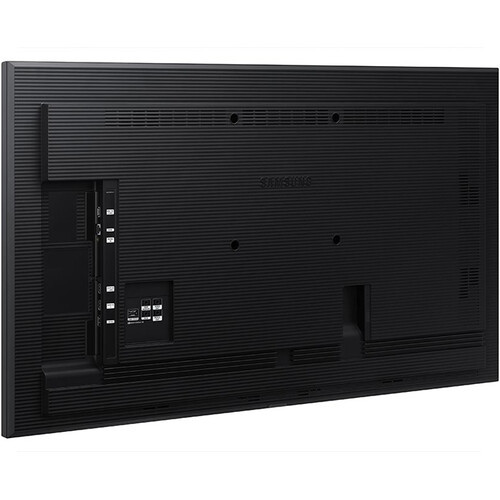

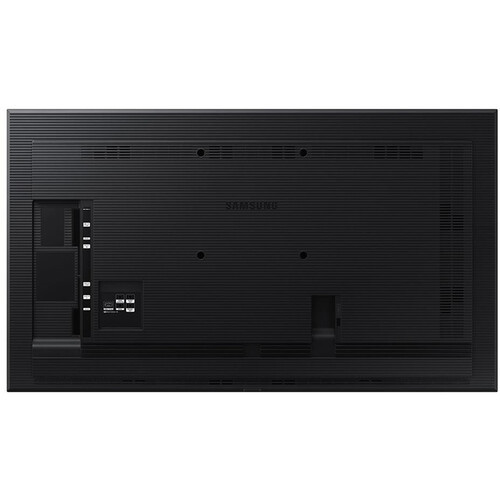

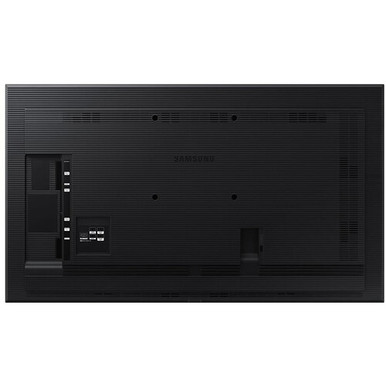

• VESA Mount (mm)200 X 200
• Stand TypeFoot Stand (Optional)
• Bezel Width (mm)9.2mm(U/L/R), 11.2mm(B)

Operation

• Operating Temperature 0    ~   40
• Humidity 10.0  %  ~   80.0   %

Feature

• Key FeaturesUHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
• OrientationLandscape / Portrait
• Remote ControlN/A

• Special Features H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player

• ProcessorCortex A72 1.7GHz Quad-Core CPU
• On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
• Clock Speed1.7GHz
• Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit
• GraphicsGraphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
• Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
• Multimedia*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
• IO PortsUSB 2.0
• Operating SystemTizen 4.0 (VDLinux)

Certification

• Safety60950-1
• EMCClass B
• Security802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

Accessory

• IncludedQuick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional

• StandSTN-L4355F
• Mount WMN4070SE (Land Only) WMN750ME
• SpecialtyCML400XK
