Diagonal Size 65″ (165 cm)
Panel Type 60 Hz LED
Resolution 1920 x 1080 (FHD)
Pixel Pitch (H x V) 0.744 (H) x 0.744 (V)
Brightness 400 cd/m 2
Viewing Angle 178 horizontal and vertical
Display Colors 10-Bit Dithering: 1.07 billion
Active Display Size (H V) 56 x 31″ (143 x 80 cm)
Contrast Ratio 4000:1
Response Time 6 ms
Color Gamut 70%
Dynamic Contrast Ratio Mega. DCR (AV Mode), Mega. DCR (AV Mode) Scanning Frequency
Scanning Frequency Vertical: 48 to 75 Hz Horizontal: 30 to 81 kHz
Pixel Frequency 148.5 MHz maximum
Speaker Built in speaker (10 + 10 W)
Input RGB: Analog D-sub, DVI-D Video: CVBS, Component, HDMI Audio: Stereo mini jack USB: USB player
Output Audio: Stereo mini jack
External Control RS232C (in/out) thru stereo jack
External Sensor Yes
Type Internal
Power Supply 100 to 240 VAC ( 10%), 50/60 Hz
Power Consumption Maximum: 253 W/hour Typical: 180 W/hour BTU (maximum): 862.73 Sleep Mode: Less than 0.5 W Off Mode: Less than 0.5 W
Key Features LED LFD
Special Features Built in speaker (10 + 10 W), PIP/PBP, narrow bezel, light weight, RS232 in/out 1 x D-Sub & 1 x HDMI
Hours of Operation 16/7
Operating Temperature 32 to 104 F (0 to 40 C)
Humidity 10 to 80%
Safety EN60950-1
EMC Class A
VESA Mount 400 x 400 mm
Bezel Width Top/Left/Right: 0.4″ (11 mm) Bottom: 0.6″ (16.9 mm)
Dimensions 57.9 x 33.3 x 2.2″ (147 x 84.8 x 5.62 cm)
Weight 60.4 lb (27.4 kg)
Package Weight 84 lb
Box Dimensions (LxWxH) 62 x 38.5 x 11″

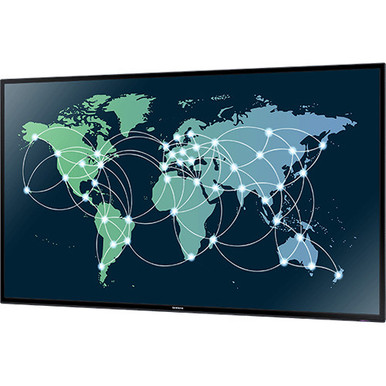

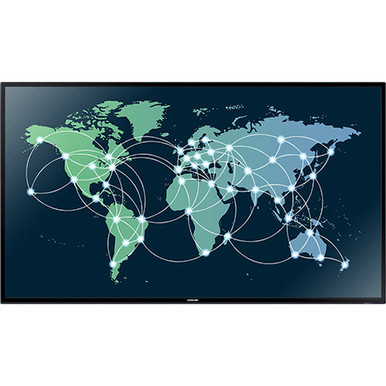

Samsung ED65E Overview The EDE Series 65″ Digital Signage Display from Samsung is equipped with a direct-lit LED panel to provide crisp, clear full HD images and realistic color on a sleek display. A sleek, lightweight design, and slim bezels keep your viewers focused on your presentation. A pivot function gives you the flexibility to display your message vertically or horizontally for the optimal view.
Samsung ED65E Overview Offers crisp, clear full HD images and realistic color on a sleek display with Samsung d-LED technology

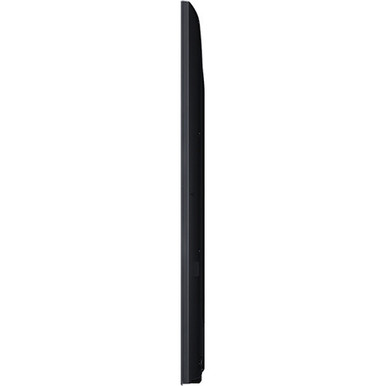

Samsung ED65E Overview Sleek, lightweight design and slim bezels keep your audience focused on your message
Samsung ED65E Overview The pivot function gives you the flexibility to display your message vertically or horizontally for the optimal view With its slim and lightweight design, the display is easy and economical to install, further helping to reduce startup cost
Samsung ED65E Overview Requires less energy, emits less heat, and is durable Samsung ED65E Specs Panel Diagonal Size 65″ (165 cm) Panel Type 60 Hz LED Resolution 1920 x 1080 (FHD) Pixel Pitch (H x V) 0.744 (H) x 0.744 (V) Brightness 400 cd/m 2 Viewing Angle 178 horizontal and vertical Display Colors
10-Bit Dithering 1.07 billion
Active Display Size (H V) 56 x 31″ (143 x 80 cm)
Samsung ED65E Overview Contrast Ratio 4000:1 Response Time 6 ms
Samsung ED65E Overview Color Gamut 70% Display
Samsung ED65E Overview Vertical 48 to 75 Hz
Samsung ED65E Overview Horizontal 30 to 81 kHz Pixel Frequency 148.5 MHz maximum Sound Speaker Built in speaker (10 + 10 W) Connectivity Input
Samsung ED65E Overview RGB Analog D-sub, DVI-D
Samsung ED65E Overview Video CVBS, Component, HDMI
Samsung ED65E Overview Audio Stereo mini jack, Stereo mini jack External Control
Samsung ED65E Overview USB USB player Output
Samsung ED65E Overview RS232C (in/out) thru stereo jack External Sensor Yes Power Type Internal
Samsung ED65E Overview Power Supply 100 to 240 VAC ( 10%), 50/60 Hz
Power Consumption Maximum 253 W/hour
Power Consumption Typical 180 W/hour
Power Consumption BTU (maximum) 862.73
Power Consumption Sleep Mode Less than 0.5 W
Power Consumption Off Mode Less than 0.5 W Features Key Features LED LFD Special Features
Power Consumption Built in speaker (10 + 10 W), PIP/PBP, narrow bezel, light weight, RS232 in/out 1 x D-Sub & 1 x HDMI
Power Consumption Operation Conditions Hours of Operation 16/7
Power Consumption Operating Temperature 32 to 104 F (0 to 40 C) Humidity 10 to 80% Certification Safety EN60950-1 EMC Class A Mechanical VESA Mount 400 x 400 mm Bezel Width
Top/Left/Right 0.4″ (11 mm)
Power Consumption Bottom 0.6″ (16.9 mm) Dimensions 57.9 x 33.3 x 2.2″ (147 x 84.8 x 5.62 cm) Weight 60.4 lb (27.4 kg) Packaging Info Package Weight 84 lb
Power Consumption Box Dimensions (LxWxH) 62 x 38.5 x 11″
SKU ED65E
Brand Samsung
MPN ED65E
GTIN 00887276119090, 887276119090
UPC 887276119090
