Display System 3-Chip LCD
Native Chip Resolution 1024 x 768 (XGA), 1024 x 768 (XGA) Supported Resolutions
Supported Resolutions Maximum: Full HD 1080p - 1920 x 1080
Max Brightness White: 3300 Lumens Color: 3300 Lumens
Aspect Ratio Native: 4:3 Supported: 16:9 Supported: 16:10 Supported: 14:9
Dynamic Contrast Ratio 20,000:1
Color Depth 8-Bit (16.78 Million Colors)
Scan Horizontal: 15 to 106 kHz Vertical: 50 to 120 Hz
Focus Manual
Lens f = 19 - 23 mm
Optical Zoom Manual: 1.2x
Throw Distance 33 - 427" / 83.82 - 1084.58 cm
Throw Ratio 1.5 to 1.8:1
Projection Size 30 - 300" / 76.20 - 762.00 cm
Keystone Correction Vertical: 30
Built-In Speaker Yes
Speaker Power 1W

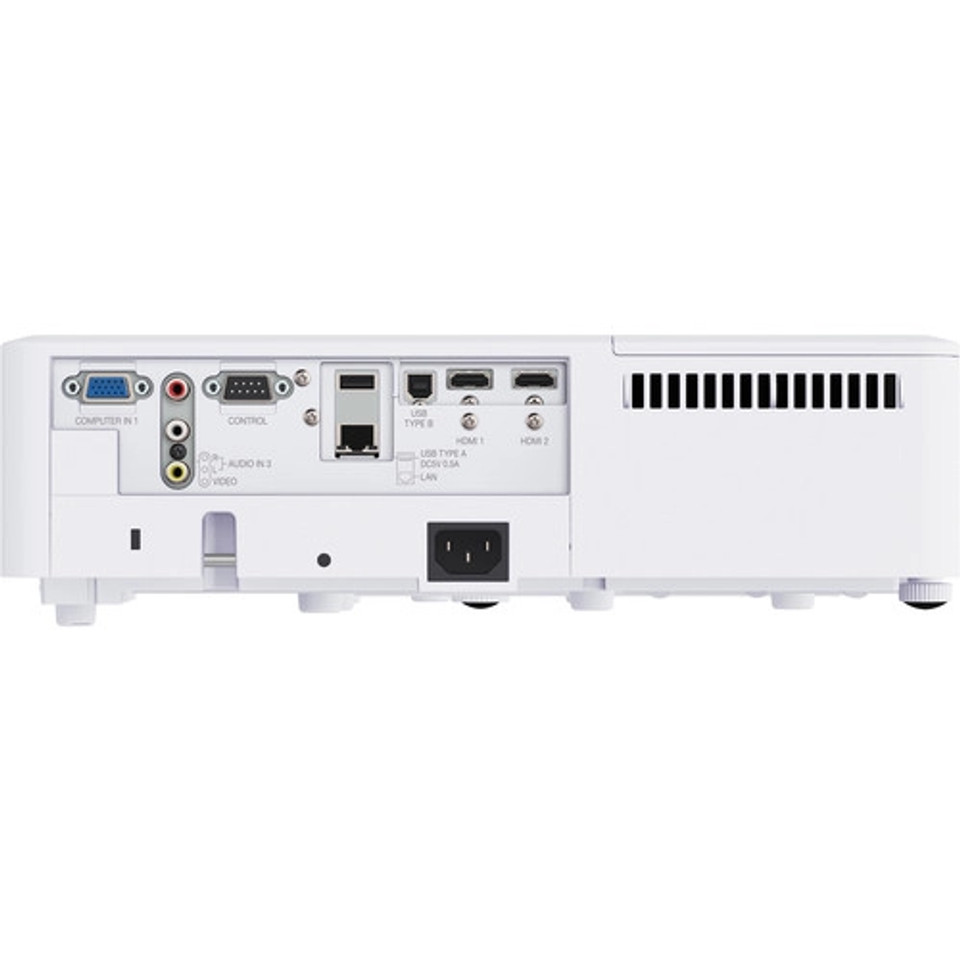

Inputs/Outputs 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Input/Output 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x RS-232 (DE-9/DB-9) Control
Wireless LAN / Wi-Fi None
Light Source Lamp
Lamp Power 230 W
Expected Lamp Life Full Brightness: 6000 Hours Low Brightness: 12,500 Hours
Security Cable Lock Slot Password Protection Security Bar
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 290 W
Operating Temperature 32 to 95 F / 0 to 35 C
Dimensions (W x H x D) 13.7 x 3.5 x 10.4" / 34.8 x 8.9 x 26.4 cm Excluding Protrusions
Weight 7.7 lb / 3.49 kg Approximately
Package Weight 10.94 lb
Box Dimensions (LxWxH) 18.4 x 14.7 x 7.7"
Maximum Full HD 1080p - 1920 x 1080 Max Brightness
White 3300 Lumens
Color 3300 Lumens
Aspect Ratio Native 4:3
Aspect Ratio Supported 16:9, 16:10, 14:9
Aspect Ratio Color Depth 8-Bit (16.78 Million Colors) Scan
Aspect Ratio Horizontal 15 to 106 kHz
Aspect Ratio Vertical 50 to 120 Hz Focus Manual Lens
Aspect Ratio f = 19 23 mm Optical Zoom
Aspect Ratio Manual 1.2x
Throw Distance 33 427" / 83.82 - 1084.58 cm
Throw Distance Throw Ratio 1.5 to 1.8:1
Projection Size 30 300" / 76.20 - 762.00 cm Keystone Correction
Projection Size Vertical 30 Built-In Speaker Yes Speaker Power 1W Inputs/Outputs
1 x HDMI (HDMI Type-A) Audio, Video Input
Projection Size 1 x VGA (DE-15/DB-15) Video Input, x VGA (DE-15/DB-15) Video Input/Output, x Composite (RCA) Video Input
1 x 2RCA Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x RS-232 (DE-9/DB-9) Control
Projection Size Wireless LAN / Wi-Fi None Light Source Lamp Lamp Power 230 W Expected Lamp Life
Projection Size Full Brightness 6000 Hours
Projection Size Low Brightness 12,500 Hours Security Cable Lock Slot Password Protection Security Bar
Projection Size AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 290 W
Power Consumption Operating Temperature 32 to 95 F / 0 to 35 C
Power Consumption Dimensions (W x H x D) 13.7 x 3.5 x 10.4" / 34.8 x 8.9 x 26.4 cm Excluding Protrusions Weight 7.7 lb / 3.49 kg Approximately Package Weight 10.94 lb
Power Consumption Box Dimensions (LxWxH) 18.4 x 14.7 x 7.7"
SKU MC-EX303E
Brand Maxell
