Projection System High-aperture Epson 3-chip, 3LCD technology
Projection Method Front / rear / ceiling mount
Driving Method Epson Poly-silicon TFT Active Matrix
Pixel Number 1,024,000 pixels x 3LCDs
Color Brightness – Color Light Output 9,200 lumens
White Brightness – White Light Output 9,200 lumens
Aspect Ratio Native 16:10 (supports 4:3, 16:9, 5:4)
Native Resolution WXGA (1280 x 800)
Lamp Type Normal: ECO mode: Up to 4000 hours2 Normal mode: Up to 2000 hours Portrait: Normal mode: Up to 1000 hours
Lamp Life Normal: 380 W x 2 UHE Portrait: 304 W x 2 UHE
Brightness Uniformity 90%
Pixel Arrangement Cross stripe
Throw Ratio Range 1.74 2.82 (standard lens)
Size – projected distance 60″ 500″
Keystone Correction Vertical: -30 degrees to +30 degrees Horizontal: -30 degrees to +30 degrees
Contrast Ratio Normal, Dynamic Mode: Up to 15,000:1
Color Processing 10 bit
Color Reproduction Up to 1.07 billion colors
Temperature Normal: 32 to 122 F (0 to 50 C) Above 4900 feet: 32 to 104 F (0 to 40 C)
Security Kensington - style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cable wrap
Type Powered zoom / focus
F-number 1.65 2.51 (standard lens), lens not included
Focal Length 36 mm 57.35 mm (standard lens)
Zoom Ratio Optical zoom 1.0 1.61 (standard lens)
Lens Shift Powered Vertical: 60% Horizontal: 18%
Video Processing Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Video Standards 3D Y/C separation, 3D noise reduction, mosquito noise reduction DCDi Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
Super Resolution FineFrame Interpolation 8:8 Pull-down Processing Closed Captioning
Standard Connectivity Wired: Integrated 100Mbps Wireless: Optional 802.11b/g/n Wireless Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
Remote Control and Management Epson EasyMP Monitor Network projection Multi-projection AMX Device Discovery Crestron Integrated Partner and Crestron RoomView Extron IP Link and XTP PJLink
Interfaces HDMI x 1 DVI-D x 1 HDBase-T x 1 Computer: D-sub 15 pin x 2 Video: BNC x 5 Composite Video: BNC x 1 Wired Network: RJ-45 x 1 Wireless Network: Optional Serial: Rs-232c x 1 Hardwired Remote Jack x 1 Monitor-Out: D-sub 15 pin x 1 USB Type-A: For wireless only USB Type-B: For service only
Speaker None
Fan Noise ECO mode: 35 dB Normal mode: 38 dB
Audio Output None
Weight – with standard lens 58 lb
Excluding feet – with standard lens 21.02″ x 29.17″ x 10.04″ (W x D x H)
Including feet – with standard lens 21.02″ x 29.17″ x 7.76″ (W x D x H)
Operating Distance 98 ft
Operating Angle Front Right / Left: 60 degrees Upper / Lower: -45 to +15 degrees Rear Right / Left: 60 degrees Upper / Lower: -40 to +15 degrees
Power Supply Voltage 100 240 V 10%, 50/60 Hz AC
Power Consumption ECO mode: 821 W Normal mode: 995 W Communication on: 2.7 W standby Communication off: 0.26 W standby
WXGA 3LCD Projector w/out Lens, 9000 Lumens 16 10 (White)
WXGA (1280 x 800) native resolution 9,200 lumens brightness
WXGA 3LCD Projector w/out Lens, 9000 Lumens 16:10 (White)
9,200 lumens of color brightness

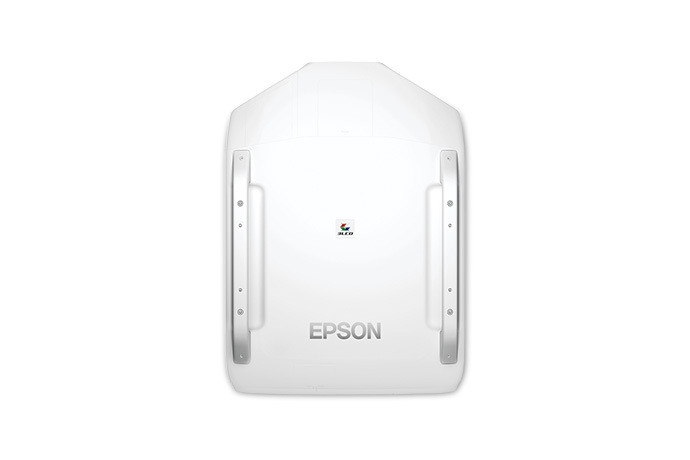

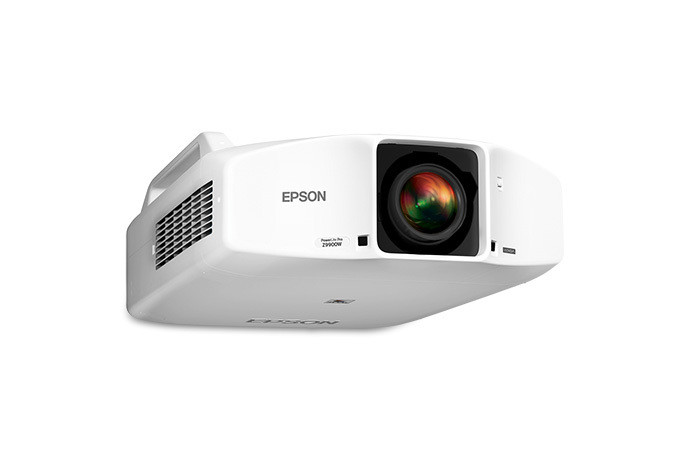

The Epson V11H609920 PowerLite Pro Z9900WNL projector combines high-lumen projection with WXGA, native widescreen performance – perfect for installation in auditoriums, lecture halls, and other large venues. Offering 3x brighter colors than competitive models, Epson projectors ensure vivid images. With 9,200 lumens of color brightness and 9,200 lumens of white brightness, the Z9900WNL makes content shine, even in high ambient light.
High-aperture Epson 3-chip 3LCD Featuring 3LCD, 3-chip technology, and an array of connectivity options – including HDBaseT – this powerful performer delivers uncompromised image quality and professional-grade reliability. And, installation has never been more flexible, with seven optional lenses, lens shift, Curved Edge Blending, Portrait Mode, and 360-degree projection features.
3x brighter colors with Epson
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x brighter colors than leading competitive projectors. Delivering 9,200 lumens of color brightness and 9,200 lumens of white brightness, the Pro Z9900WNL projector uses 3LCD, 3-chip technology for brilliant images with true-to-life color. In The Box
High-aperture Epson 3-chip 3LCD PowerLite Pro Z9900WNL projector
High-aperture Epson 3-chip 3LCD Power cable Computer cable
High-aperture Epson 3-chip 3LCD Projector remote control Batteries Cable cover User manual CD Quick Setup Sheet PrivateLine support card Password protection sticker Monitor and Control CD Manuals/Guides Manuals Quick Reference User Guide Spec Sheets
High-aperture Epson 3-chip 3LCD Dimensional Drawing Data Sheet Manufacturer Specs
High-aperture Epson 3-chip 3LCD Model V11H609920 Specifications
Projection System High-aperture Epson 3-chip, 3LCD technology
Projection System Projection Method Front / rear / ceiling mount Driving Method
Projection System Epson Poly-silicon TFT Active Matrix Pixel Number 1,024,000 pixels x 3LCDs
Projection System Color Brightness – Color Light Output 9,200 lumens
Projection System White Brightness – White Light Output 9,200 lumens
Aspect Ratio Native 16:10 (supports 4:3, 16:9, 5:4)
Aspect Ratio Normal mode Up to 2000 hours Portrait: Normal mode: Up to 1000 hours Lamp Life
Aspect Ratio Normal 380 W x 2 UHE
Aspect Ratio Portrait 304 W x 2 UHE
Aspect Ratio Brightness Uniformity 90% Pixel Arrangement Cross stripe
Aspect Ratio Size projected distance 60″ 500″ Keystone Correction
Aspect Ratio Vertical -30 degrees to +30 degrees
Aspect Ratio Horizontal -30 degrees to +30 degrees
Normal, Dynamic Mode Up to 15,000:1
Contrast Ratio Color Processing 10 bit
Contrast Ratio Color Reproduction Up to 1.07 billion colors Temperature
Contrast Ratio Normal 32 to 122 F (0 to 50 C)
Above 4900 feet 32 to 104 F (0 to 40 C) Security
Contrast Ratio Kensington style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cable wrap
Projection Lens Type Powered zoom / focus F-number
Projection Lens Type Focal Length 36 mm 57.35 mm (standard lens)
Zoom Ratio Optical zoom 1.0 1.61 (standard lens)
Lens Shift Powered Vertical 60%
Lens Shift Powered Horizontal 18% Video
Video Processing Analog NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Video Processing HDMI 480i / 576i / 480p / 576p / 720p /1080i / 1080p
Video Processing DVI-D 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
3D Y/C separation, 3D noise reduction, mosquito noise reduction
Video Standards DCDi Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection) Super Resolution FineFrame Interpolation 8:8 Pull-down Processing Closed Captioning Connectivity Projector Standard Connectivity
Video Standards Wired Integrated 100Mbps
Video Standards Wireless Optional 802.11b/g/n, Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
Video Standards Remote Control and Management Epson EasyMP Monitor Network projection Multi-projection AMX Device Discovery
Video Standards Crestron Integrated Partner and Crestron RoomView Extron IP Link and XTP PJLink
Projector Details Interfaces HDMI x 1 DVI-D x 1 HDBase-T x 1
Projector Details Interfaces Computer D-sub 15 pin x 2
Projector Details Interfaces Video BNC x 5
Projector Details Interfaces Composite Video BNC x 1
Projector Details Interfaces Wired Network RJ-45 x 1
Projector Details Interfaces Wireless Network: Optional
Projector Details Interfaces Serial Rs-232c x 1 Hardwired Remote Jack x 1
Projector Details Interfaces Monitor-Out D-sub 15 pin x 1
Projector Details Interfaces USB Type-A For wireless only
Projector Details Interfaces USB Type-B For service only Speaker None
Fan Noise ECO mode 35 dB
Fan Noise Normal mode 38 dB
Projector Dimensions Weight – with standard lens 58 lb
Projector Dimensions Excluding feet with standard lens 21.02″ x 29.17″ x 10.04″ (W x D x H) Including feet – with standard lens 21.02″ x 29.17″ x 7.76″ (W x D x H) Remote Control Features
Projector Dimensions Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screen
Projector Dimensions Operating Distance 98 ft
Operating Angle Front Right / Left 60 degrees
Operating Angle Front Upper / Lower -45 to +15 degrees Rear, -40 to +15 degrees Power
Power Consumption ECO mode 821 W
Power Consumption Normal mode 995 W
Power Consumption Communication on 2.7 W standby
Power Consumption Communication off 0.26 W standby Tech Specs
SKU PL-Z9900WNL
Brand Epson
MPN V11H609920
GTIN 00010343914667, 010343914667
UPC 010343914667
