Contrast Ratio 2000:1
Wireless Networking Optional
Economode 4000 hours
Audible Noise 34 dB
Lamp Life 3000
Native Resolution 1920 x 1200, 1920 x 1200 Display Technology DLP
Display Technology DLP
Aspect Ratio 16:10 (WUXGA)
Image Size Diagonal Dependent upon lens

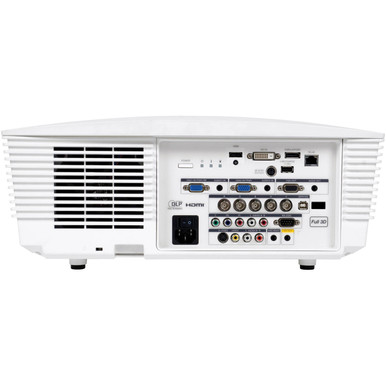

Inputs 1x HDMI (1.4a 3D support), 1x DVI-D, 1x DisplayPort, 1x 5BNC, 2x VGA-In (YPbPr/RGB), 1x Component Video (3 x RCA), 1x S-Video, 1x Composite, 5 x Audio In (RCA/3.5mm), USB (mouse/service), and one VGA out for analog content, vertical and horizontal lens shift, discrete audio inputs, 12-volt trigger for maximum installation convenience.
Lens Shift Horizontal & Vertical
Data / Video Signals NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
Digital Keystone Vertical
Throw Distance 0.77 ~ 5.30:1 "Lens dependent"
Unit Weight 18.6 lbs (8.4 kg) w/o lens
Lens 5 x lens Options "no lens supplied as standard", Shift Horizontal & Vertical
Projector Methods Front, Rear, Ceiling Mount, Table Top
Lumens (ANSI) 5000 ANSI Lumens
Dimensions (WxDxH) 16.9" x 7.1" x 13.4" (430 x 181 x 340 mm)
Installation flexibility lens shift, interchangeable lenses, off-axis short throw option
Powerful image-blending tools 3-axis color matching system and 10x lamp-power steps
amazingly bright, color-rich presentations with sharp, clear text and graphics.
Contrast Ratio 2000:1
Wireless Networking Optional Economode 4000 hours Audible Noise 34 dB Lamp Life 3000
Image Size Diagonal Dependent upon lens Inputs
1x HDMI (1.4a 3D support), 1x DVI-D, 1x DisplayPort, 1x 5BNC, 2x VGA-In (YPbPr/RGB), 1x Component Video (3 x RCA), 1x S-Video, 1x Composite, 5 x Audio In (RCA/3.5mm), USB (mouse/service)
Data / Video Signals
5 x lens Options "no lens supplied as standard"
Projector Methods Front, Rear, Ceiling Mount, Table Top Lumens (ANSI) 5000 ANSI Lumens
Projector Methods Dimensions (WxDxH) 16.9" x 7.1" x 13.4" (430 x 181 x 340 mm)
SKU EH505E
Brand Optoma
