Screen Size (Diagonal) 49"
Resolution 3840 x 2160
Panel Type IPS-Type LCD
Brightness 700 cd/m (Typical)
Viewing Angle (H x V) 178 x 178
Aspect Ratio 16:9
Contrast Ratio 1100:1
Response Time 8 ms (GtG)
Backlighting Technology LED
Primary Connectivity Location Display
Input Ports 3 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio
Output Ports 1 x DisplayPort Audio, Video 1 x 1/8" / 3.5 mm Audio
USB Ports 1 x USB 2.0 Type-A
Ethernet Ports 1
Control RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output IR via 1/8" / 3.5 mm Input
Wi-Fi Built-in
Number of OPS/Expansion Slots 1
Display Orientation 30 Downward Angle, Landscape, Portrait
Haze Level 3%
Built-In Speakers Yes
Operating System webOS
Power Consumption Typical: 100.0 W Maximum: 145.0 W Economy Mode: 75.0 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Adapter Type Internal
Operating Temperature 32 to 104 F / 0 to 40 C
Operating Humidity 10 to 80%
Certifications CB, CE, FCC-A, NRTL, as per Manufacturer
Wall Mounting 300 x 300 mm
IP Rating IP5X
IR Sensor Yes
Bezel Thickness 9.9 mm (Right/Top/Left) 14.4 mm (Bottom)
Duty Cycle 24 Hours
Dimensions 43.3 x 25.4 x 1.6" / 1098.6 x 644.5 x 39.9 mm
Weight 34.0 lb / 15.4 kg
Package Weight 41.5 lb
Box Dimensions (LxWxH) 49.25 x 31 x 6.5"

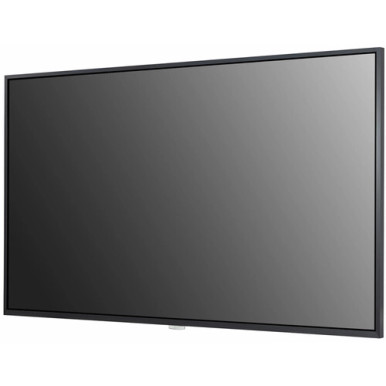

LG UH7F Overview Landscape and portrait orientation options let you show your content the way you want. You can even tilt the display downward up to 30 to better direct it towards viewers. The built-in speaker lets audio messages accompany your on-screen content to maximize effectiveness.
LG UH7F Overview Superb Picture Quality with 4K UHD Resolution
4K UHD resolution is four times higher than Full HD, which makes the color and details of compatible content more vivid and realistic. In addition, the IPS panel allows for wider viewing angles and provides clearer content with no distortion.
The UH7F-B series supports High Efficiency Video Coding (HEVC), which efficiently compresses/decompresses high-capacity UHD content, playing ultra-high-quality videos with half the network traffic when compared to the existing H.264 codec., series is equipped with a new transparent logo to help it blend into its surroundings. Also, its removable feature gives you added flexibility for installation. Content will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers. IP5X Certified Design, series is IP5X dustproof certified, which ensures that the product is completely protected from dust, eliminating the risk of performance degradation. 30 Tilting Installation, series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of the on-screen display and background content will be set when you turn on a display for the first time. Fine Adjustment, series is equipped with a horizontal sensor, which shows you the degree of tilt the display has, allowing for precise installation. Remote Monitoring With remote monitoring, the UH7F-B series can email notifications to you when there is a problem, such as tilting from external impact. You're then able to operate the product in a safer manner and get information quickly when a problem arises. Simple Accessibility, series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, and more. High-Performance with webOS, series displays have been certified Crestron Connected for compatibility with professional A/V controls. This helps to achieve seamless integration and automated control, boosting business management efficiency.
Detachable Logo and Built-In Speaker When a display is installed at high places, it is usually tilted for the user's comfort. The UH7F-B series supports installations with up to 30 of downward tilt (up to 86 F temperature and 50% humidity). Auto Screen Rotation
The built-in quad-core SoC (system on a chip) can execute several tasks at once while providing smooth content playback without the need for a media player. The LG webOS platform also enhances user convenience with an intuitive GUI and simple app development tools. Various Sensor Applications
Detachable Logo and Built-In Speaker The LG webOS smart signage platform easily supports connections with external sensors, such as GPIO, NFC/RFID, temperature sensors, and more via USB. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Compatibility with A/V Control Systems Compatibility with Cisco Systems For the optimal visual meeting, the UH7F-B series has certified its compatibility with Cisco Systems. They offer powerful, integrated control for a smarter video conference, making meeting setup easier and faster. Additional Features Up to 50,000-hour lifespan
Compatibility with A/V Control Systems SuperSign CMS content management software, Control/Control+ control and monitoring software Signage 365Care
Compatibility with A/V Control Systems Optional tabletop stand available separately LG UH7F Specs Display
Compatibility with A/V Control Systems Screen Size (Diagonal) 49" Resolution 3840 x 2160 Panel Type
IPS-Type LCD Brightness 700 cd/m (Typical) Viewing Angle (H x V) 178 x 178
Compatibility with A/V Control Systems Aspect Ratio 16:9
Compatibility with A/V Control Systems Contrast Ratio 1100:1 Response Time 8 ms (GtG) Backlighting Technology LED Connectivity
3 x HDMI Audio, Video
1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio, Video 1 x 1/8" / 3.5 mm Audio
1 x USB 2.0 Type-A
Ethernet Ports 1 Control RS-232C via 1/8" / 3.5 mm Input, via 1/8" / 3.5 mm Output IR via 1/8" / 3.5 mm Input Wi-Fi Built-in
Ethernet Ports 1 Control Number of OPS/Expansion Slots 1 General Display Orientation 30 Downward Angle, Landscape, Portrait Surface Haze Level 3% Audio Built-In Speakers Yes Hardware
Ethernet Ports 1 Control Operating System webOS Electrical
Power Consumption Typical 100.0 W
Power Consumption Maximum 145.0 W
Power Consumption Economy Mode 75.0 W
Power Consumption AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Adapter Type Internal Environmental Operating Temperature 32 to 104 F / 0 to 40 C
Power Adapter Type Internal Environmental Operating Humidity 10 to 80% Certifications
Power Adapter Type Internal Environmental CB, CE, FCC-A, NRTL, as per Manufacturer Physical Wall Mounting 300 x 300 mm IP Rating IP5X IR Sensor Yes Bezel Thickness 9.9 mm (Right/Top/Left) 14.4 mm (Bottom) Duty Cycle 24 Hours Dimensions 43.3 x 25.4 x 1.6" / 1098.6 x 644.5 x 39.9 mm Weight 34.0 lb / 15.4 kg Packaging Info Package Weight 41.5 lb
Power Adapter Type Internal Environmental Box Dimensions (LxWxH) 49.25 x 31 x 6.5"
SKU 49UH7F-BL
Brand LG
