What’s In The Box:

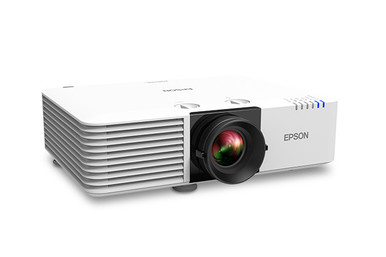

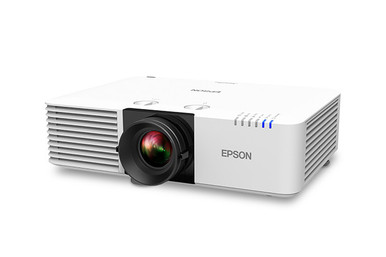

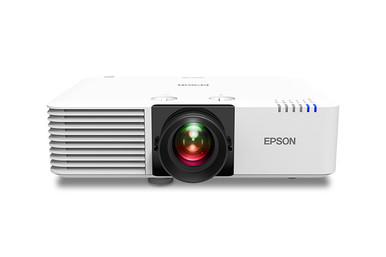

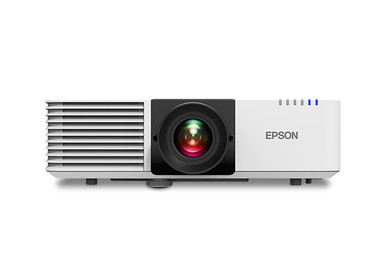

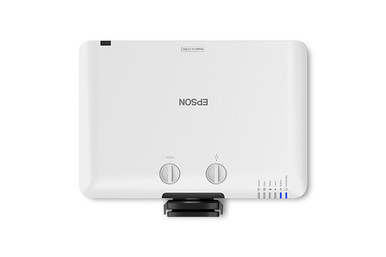

• PowerLite L770U laser projector
• Power cable
• Computer cable (HDMI)
• Projector remote control with batteries
• Quick Reference card
• Cable cover

Specifications
Projection System RGB liquid crystal shutter projection system

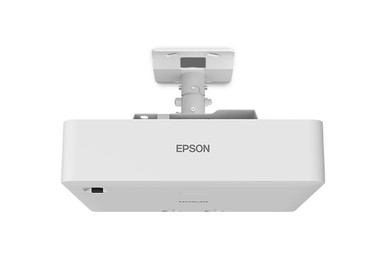

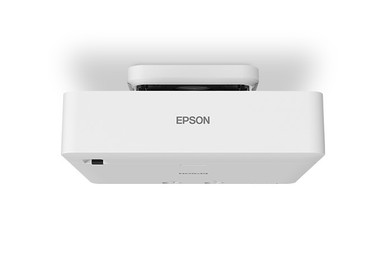

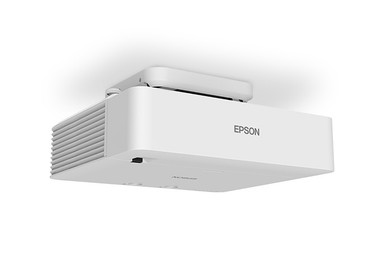

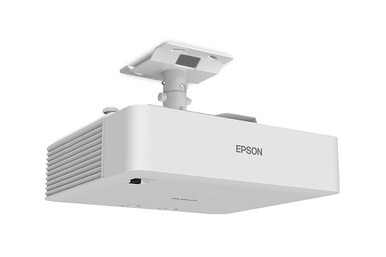

Projection Method Front/rear/ceiling mount
LCD Size 0.67″ (C2
Fine)
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3
Native Resolution 1920 x 1200 (WUXGA) 4KE1
Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Aspect Ratio Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
* With vertical image shift control within letterbox area.
Pixel Arrangement Cross stripe
Color Brightness3 Color Light Output: 7,000 lumens
White Brightness3 White Light Output: 7,000 lumens
Contrast Ratio Up to 2,500,000:1
Brightness Uniformity (Typical) 86%
Color Reproduction Up to 1.07 billion colors
Size (Projected Distance) 50″ – 500″
Projected Distance 80″ screen 2.33 m – 3.78 m
Lens Shift (Manual) Vertical: ±50%; Horizontal: ±20%
Keystone Correction Vertical: ±30 degrees;
Horizontal: ±30 degrees
Light Source Laser Diode
Laser Light Source Life4 Normal: 20,000 hours; Quiet: 20,000
hours; Extended: 30,000 hours

Projection Lens (Standard)
Type Optical Zoom (manual)/Focus (manual)
F-Number 1.5 – 1.7
Focal Length 20.0 mm – 31.8 mm
Zoom Ratio 1.00 – 1.6x (optical)
Throw Rate Range 1.35 – 2.20 (optical)
Lens Cover Lens cap (without string)

Other
Operating Temperature 32 ˚F to 113 ˚F (0 ˚C to 45 ˚C)
Power Supply Voltage 100 V – 240 V ±10%, 50/60 Hz AC
Auto Power On Signal Detection on HDMI/Plug-In Detection
Sleep Mode Yes (with timer)
HDMI CEC Control Yes
Power Consumption
382W (Normal)
285W (Quite)
275W (Extended)
2.0W Standby (Communication on)
0.5W Standby (Communication off)
Fan Noise 31 dB (Normal Mode); max. 23 dB (ECO Mode)
Security Security cable hole, Kensington lock provision

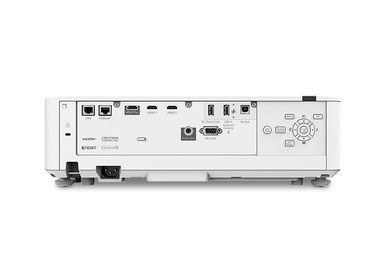

Interfaces
HDMI (HDCP 2.3) x 2
HDMI Out x 1
HDBaseT x 1
Variable Audio Out: Mini Stereo x 1
USB Connector Type A x 1
USB Connector Type B x 1
Serial: RS-232C x 1
Wired LAN RJ-45 x 1

Other (Continued)
Split Screen5 Yes (Up to 2 screens)
A/V Mute Yes
Camera Yes
Speaker(s) 10 W (mono)
Content Playback Yes
Quick Corner® Yes
Corner Wall Yes
Curved Surface Yes
Edge Blending Yes
Screen Sharing Yes

Effective Scanning Frequency Range (Digital)
Pixel Clock 25.1 MHz – 594 MHz
Horizontal 26 kHz – 135 kHz
Vertical 23.98/24/25/29.97/30/50/59.94/60 Hz

Dimensions (W x D x H)
Excluding Feet 17.32″ x 11.97″ x 4.80″
Including Feet 17.32″ x 12.59″ x 5.35″
Weight 19.1 lb

Remote Control
Features Source Search, HDMI, USB, Computer, LAN, Power,
Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu,
Home, Auto, Enter, Esc, Default
Operating Angle Rear: Right/Left: -55 to +55 degrees; Upper/
Lower: +75 to +15 degrees; Front: Right/Left: -30 to +30
degrees; Upper/Lower: 0 to +60 degrees
Operating Distance 19.7 ft (6 m)

Eco Features
RoHS compliant
Recyclable product8
Epson America, Inc. is a SmartWay® Transport Partner9

Support
Epson ConnectionSM
Pre-sales support: U.S. and Canada 800-463-7766
Internet website: www.epson.com
Service Programs
The projector has a limited warranty of 3 years. Epson Road
Service program with free Next-Business-Day replacement10,
PrivateLine® dedicated toll-free support (U.S. and Canada only)

What’s Included
PowerLite L770U laser projector, power cable, computer
cable (HDMI), projector remote control with batteries, Quick
Reference card, cable cover

Ordering Information
PowerLite L770U V11HA96020
Replacement Air Filter (ELPAF56) V13H134A56
Wireless LAN Adapter (ELPAP11) V12H005A02
Custom Micro-Adjustable Mount (ELPMBPRH) V12H809001
Universal Projector Mount (ELPMBPJG) V12H808001
PowerLite Pilot™ 3 (ELPCB03) V12H927020
Pixie Plus ELPSP10
External Camera V12HA46010
External Speaker (ELPSP02) V12H467020
DC-07 Document Camera V12H759020
DC-13 Document Camera V12H757020
DC-21 Document Camera V12H758020
1-Year Extended Service Plan EPPEXPE1
2-Year Extended Service Plan EPPEXPE2
