Resolution and Frame Rate “Panoramic 4K” (3840 x 960) at up to 30 fps “Panoramic 4K” (3840 x 640) at up to 30 fps 1080p at up to 30 fps
Image Sensor 1/2.7″-Type CMOS
Sensor Resolution 5 MP
System Connection USB-C 2.0
Number of Lenses 4
Aperture f/2.5
Field of View Horizontal: 360 Vertical: 60
Zoom No
Pan No
Tilt No
Focus Type Auto
Bluetooth No
Power Source AC Adapter, Bus Powered
Low-Light Correction No
OS Compatibility macOS / Windows, macOS Windows
Supported Formats/Protocols UVC 1.5
Microphone 7
Element Type MEMS
Pickup Range 16.4′ / 5 m
Sensitivity -35 dB
Signal-to-Noise Ratio (SNR) 68.75 dBA
Microphone Features Beam Forming
Cancellation Technology Echo, Noise
Built-In Speakers 1x 3 W
Privacy Shutter No
Security Kensington Lock Slot
Attachment Method 1/4″-20 Tripod
Built-In Light No
Certifications FCC-Class B
Operating Conditions 32 to 72 F / 0 to 40 C at 20 to 80% Humidity
Dimensions (W x H x D) 3.9 x 11.2 x 2.5″ / 100.0 x 285.0 x 64.0 mm
Weight 2.1 lb / 950 g
Package Weight 3.53 lb
Box Dimensions (LxWxH) 13.2 x 6.7 x 5.5″
This all-in-one web conferencing system features simple, quick setup using the included USB-C cable, providing up to 3840 x 960 panoramic 4K or 1080p30 USV 1.5 video that is easily linked to your Mac or PC. 360 Coverage/Multiple Views
The TY-CSP1 system uses four cameras to capture up to 360 with single, dual, multiview, and surround view options plus a fixed position view for whiteboards, charts, etc. Advanced Audio
Panasonic CSP1 Overview Advanced audio features include 360 audio captured using 7 integrated microphones, voice recognition at distanced up to 16′, a built-in speaker and both noise and echo cancellation technology. Sleek Design

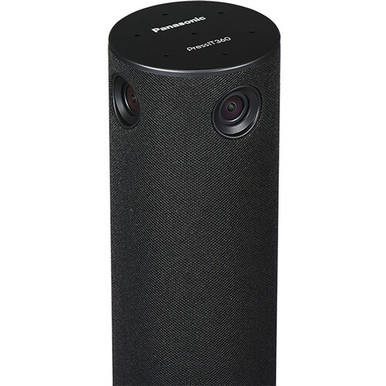

Panasonic CSP1 Overview Measuring approximately 11″ high and 2.5″ in diameter, the fabric-covered TY-CSP1 unit has a sleek, unobtrusive design that captures optimal angles from the center of your conference table. Panasonic CSP1 Specs
Resolution and Frame Rate “Panoramic 4K” (3840 x 960) at up to 30 fps, 4K” (3840 x 640) at up to 30 fps 1080p at up to 30 fps Image Sensor, 4K” (3840 x 640) at up to 30 fps 1080p at up to 30 fps Number of Lenses 4 Image Sensor
System Connection USB-C 2.0 Sensor, 2.0
Resolution and Frame Rate Horizontal 360
Resolution and Frame Rate Vertical 60 Zoom No Pan No Tilt No General
Focus Type Auto Bluetooth No Power Source AC Adapter, Bus Powered Low-Light Correction No OS Compatibility macOS / Windows OS Compatibility macOS Windows Supported Formats/Protocols UVC 1.5 Microphone Microphone 7 Element Type MEMS Pickup Range 16.4′ / 5 m Sensitivity -35 dB
Signal-to-Noise Ratio (SNR) 68.75 dBA Microphone Features Beam Forming Cancellation Technology Echo, Noise Speakers Built-In Speakers 1x 3 W Physical Privacy Shutter No Security Kensington Lock Slot Attachment Method 1/4″-20 Tripod Built-In Light No Certifications FCC-Class B
Focus Type Auto Bluetooth No Operating Conditions 32 to 72 F / 0 to 40 C at 20 to 80% Humidity
Focus Type Auto Bluetooth No Dimensions (W x H x D) 3.9 x 11.2 x 2.5″ / 100.0 x 285.0 x 64.0 mm Weight 2.1 lb / 950 g Packaging Info Package Weight 3.53 lb
Focus Type Auto Bluetooth No Box Dimensions (LxWxH) 13.2 x 6.7 x 5.5″
