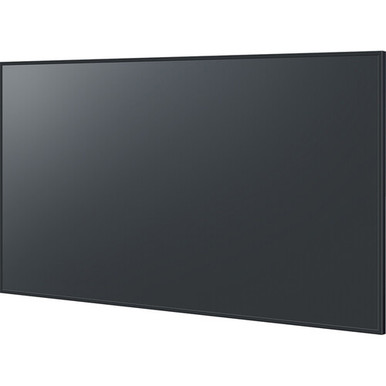

Create highly visible and reliable signage and presentations with the Panasonic SQ2HW Series 75″ UHD 4K Commercial Monitor. The TH-75SQ2HW is a 700 nits bright, anti-glare ADS LCD panel, with 24/7 operation capability, and built-in content management system, perfect for bright public display scenarios, like corporate centers and meeting rooms, retail, and education spaces.

Specifications

Key Specs
Display Size 75″
Native Resolution 3840 x 2160
Maximum Brightness 700 nits / cd/m2
Inputs
3x HDMI
1x DE-15/DB-15 (VGA)
1x 1/8″ / 3.5 mm (Analog Audio)
Outputs
1x 1/8″ / 3.5 mm (Analog Audio)
Wireless No
USB I/O
1x USB-C (Unspecified Version) (Audio/Photo/Video/Charging/DisplayPort Alt Mode)
2x USB-A (Unspecified Version) (Audio/Photo/Video/Charging)
Ethernet I/O 1x RJ45 (Unspecified Ethernet)
Other I/O
1x DE-9/DB-9 Serial (RS-232C) Control Input
1x 1/8″ / 3.5 mm IR Input
1x 1/8″ / 3.5 mm IR Output
1x 2.5 mm Ambient Sensor Input
Built-In Speakers Yes, 2x 10 W
Media Card Reader No

Display
Display Size 75″
Panel Type IPS-Type LCD
Aspect Ratio 16:9
Display Orientation Landscape, Portrait
Native Resolution 3840 x 2160
Maximum Brightness 700 nits / cd/m2
Lighting System Direct LED
Contrast Ratio 1200:1
Dynamic Contrast Ratio 50,000:1
Response Time 8 ms
Refresh Rate 60 Hz
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Viewing Angle (H x V) 178 x 178°
Screen Area 64.9 x 36.5″ / 1649.6 x 927.9 mm
Horizontal Frequency 15 to 135 kHz
Vertical Frequency 24 to 120 Hz
Pixels Per Inch (ppi) 59 ppi
Finish Anti-Glare / Matte

Surface
Haze Level 25%

Video
TV Tuner No

Connectivity
Inputs
3x HDMI
1x DE-15/DB-15 (VGA)
1x 1/8″ / 3.5 mm (Analog Audio)
Outputs
1x 1/8″ / 3.5 mm (Analog Audio)
HDCP Support Yes, Version 2.2
Wireless No
USB I/O
1x USB-C (Unspecified Version) (Audio/Photo/Video/Charging/DisplayPort Alt Mode)
2x USB-A (Unspecified Version) (Audio/Photo/Video/Charging)
Ethernet I/O 1x RJ45 (Unspecified Ethernet)
Other I/O
1x DE-9/DB-9 Serial (RS-232C) Control Input
1x 1/8″ / 3.5 mm IR Input
1x 1/8″ / 3.5 mm IR Output
1x 2.5 mm Ambient Sensor Input
Number of OPS/Expansion Slots 1
Ambient Light Sensor Yes

Speaker
Built-In Speakers Yes, 2x 10 W
Speaker Configuration 2-Channel

Hardware
Smart TV Yes
Mobile App Compatible Yes: Android & iOS
Media Card Reader No
Built-In Mic No

Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 80%

Electrical
Power Consumption
Typical: 194.0 W
Standby: < 0.5 W
Input Power 110 to 240 VAC, 50 / 60 Hz
Power Adapter Type Internal

General
Certifications
IEC 62368-1:2014, IEC 62368-1:2018, UL 62368-1:2019, CSA C22.2 NO.62368-1:19, EN 62368-1:2014, FCC CFR 47, Part 15, Subpart B 2015 Class A, ANSI C63.4-2014, ICES-003 Issue7:2020, EN 55032:2015, EN 55035:2017
Mounting-Hole Pattern 600 x 400 mm
Lighting Lifespan 50000 Hours
Material of Construction Metal, Plastic
IK Rating No
Lock Slot Yes, Kensington
Bezel Thickness 14.9 mm
Duty Cycle 24 Hours / 7 Days
Dimensions 66.3 x 37.9 x 2.8″ / 1684 x 962 x 70 mm (without Handle)66.3 x 37.9 x 3.8″ / 1684 x 962 x 96 mm
Weight 82.5 lb / 37.4 kg
