Screen Size (Diagonal) 65″
Resolution 3840 x 2160
Panel Type IPS-Type LCD
HDR Compatibility HDR10
Brightness 500 cd/m (Typical)
Viewing Angle (H x V) 178 x 178
Screen Area 56.22 x 31.61″ / 1428 x 803 mm
Aspect Ratio 16:9
Contrast Ratio 1100:1
Response Time 8 ms (GtG)
Backlighting Technology Edge LED
Primary Connectivity Location Display
Input Ports 1 x HDBaseT Audio, Video 2 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x 15-Pin VGA Video 2 x 1/8″ / 3.5 mm Audio
Output Ports 1 x DisplayPort Audio, Video
USB Ports 2 x USB 3.1 / USB 3.2 Gen 1 Type-A – Power
Ethernet Ports 1
Control IR via 1/8″ / 3.5 mm Input IR via 1/8″ / 3.5 mm Output RS-232C via DE-9/DB-9
Number of OPS/Expansion Slots 1
TV Tuner No
Display Orientation Landscape, Portrait
HDCP Support Yes, Version 2.2
Surface Treatment Anti-Glare
Haze Level 28%
Built-In Speakers Yes, 2 x 10 W
Speaker Configuration 2-Channel
External Speaker Output 2 x 15 W
Slot 1 x SDM
Power Consumption Operational: 320.0 W Standby: 0.5 W
Operating Temperature 32 to 104 F / 0 to 40 C
Operating Humidity 20 to 80%
Operating Altitude 0.00 to 9186′ / 0 to 2800 m
Wall Mounting 400 x 400 mm
Bezel Thickness 12.2 mm (Right/Left) 11.7 mm (Top) 15.3 mm (Bottom)
Duty Cycle 24 Hours / 7 Days
Dimensions 57.4 x 32.9 x 3.0″ / 1458.0 x 836.0 x 77.0 mm
Weight 79.4 lb / 36.02 kg
Package Weight 103.7 lb
Box Dimensions (LxWxH) 64 x 41.5 x 9.8″

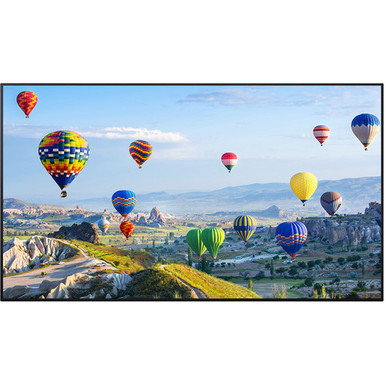

Panasonic SQ1W Overview Advertise your product or business digitally with the Panasonic SQ1W 65″ Class HDR 4K UHD Commercial IPS LED Display . It features a 4K UHD native resolution with support for the HDR10 format and BT.2020 emulation, allowing you to display highly detailed and vibrant signage and media with compatible content.
Panasonic SQ1W Overview The display has DisplayPort, DVI-D, and two HDMI inputs to support multiple source components. An SDM card can be installed to enable computer functionality. The SQ1W can be controlled via RS-232C, DIGITAL LINK, or wired IR controllers. Key Features 4K UHD (3840 x 2160) Native Resolution
Panasonic SQ1W Overview HDR10 Support / BT.2020 Emulation
Panasonic SQ1W Overview DisplayPort, DVI-D, 2x HDMI Inputs SDM Expansion Slot
RS-232C, Ethernet, Wired IR Control Dual Built-In 10W Speakers
Panasonic SQ1W Overview HDR Support with BT.2020 Emulation
4K UHD resolution is enhanced with HDR support and BT.2020 emulation. With a wide viewing angle and an anti-glare coating, the SQ1W is suitable for use in meeting rooms and signage applications where images are viewed up close. IPS Panel
Panasonic SQ1W Overview The IPS panel is designed for efficiency and enhanced reliability with 24/7 operation. Optimized Picture Modes
Panasonic SQ1W Overview The SQ1W series has a menu that lets you select the most suitable mode for the content to be displayed in its viewing environment. It also has 12-axis color management (RGB/CMY and intermediate colors) for simple, precise color adjustment.
Multi-Input Screen Capability The SQ1W can show two or four screens simultaneously in picture-in-picture or picture-by-picture mode. This helps make it easy to check details in various applications, including video conferences, digital signage, and surveillance monitoring. Expandable Design
PJLink- & DIGITAL LINK-compatible Ethernet ports
Multi-Input Screen Capability Power off power consumption of approximately 0.3W Panasonic SQ1W Specs Display
Multi-Input Screen Capability Screen Size (Diagonal) 65″ Resolution 3840 x 2160 Panel Type
IPS-Type LCD HDR Compatibility HDR10 Brightness 500 cd/m (Typical) Viewing Angle (H x V) 178 x 178 Screen Area 56.22 x 31.61″ / 1428 x 803 mm
IPS-Type LCD Aspect Ratio 16:9
IPS-Type LCD Contrast Ratio 1100:1 Response Time 8 ms (GtG) Backlighting Technology Edge LED Connectivity
1 x HDBaseT Audio, Video
2 x HDMI Audio, Video
1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x 15-Pin VGA Video 2 x 1/8″ / 3.5 mm Audio, Video
USB Ports Ethernet Ports 1 Control IR via 1/8″ / 3.5 mm Input IR via 1/8″ / 3.5 mm Output RS-232C via DE-9/DB-9
USB Ports Number of OPS/Expansion Slots 1 General TV Tuner No Display Orientation Landscape, Portrait HDCP Support Yes, Version 2.2 Surface Surface Treatment Anti-Glare Haze Level 28% Audio Built-In Speakers Yes, 2 x 10 W Speaker Configuration 2-Channel External Speaker Output 2 x 15 W Hardware Slot 1 x SDM Electrical
Power Consumption Operational 320.0 W
Power Consumption Standby 0.5 W Environmental
Power Consumption Operating Temperature 32 to 104 F / 0 to 40 C
Power Consumption Operating Humidity 20 to 80%, Altitude 0.00 to 9186′ / 0 to 2800 m Physical Wall Mounting 400 x 400 mm Bezel Thickness 12.2 mm (Right/Left) 11.7 mm (Top) 15.3 mm (Bottom) Duty Cycle 24 Hours / 7 Days Dimensions 57.4 x 32.9 x 3.0″ / 1458.0 x 836.0 x 77.0 mm Weight 79.4 lb / 36.02 kg Packaging Info Package Weight 103.7 lb
Power Consumption Box Dimensions (LxWxH) 64 x 41.5 x 9.8″
SKU TH-65SQ1W
Brand Panasonic
MPN TH-65SQ1W
GTIN 00885170371552, 885170371552
UPC 885170371552
