Power supply AC 120 V, 50/60 Hz, 1.2 A
Power consumption 125 W Standby Mode set to Eco *1 : 0.3 W Standby Mode set to Network *2 : 6 W Standby Mode set to Normal: 11 W, 125 W
Panel display method 0.45 inch DLP chip x 1, DLP projection system
Pixels 1,039,680 pixels
Resolution WXGA comparable
Lens 2.2x Powered zoom (throw ratio 1.5 3.3:1), powered focus, F 2.0 2.7, f 15.2 32.7 mm
Electric zoom 1.5 3.3:1
Light source Laser diode Laser class: Class 2 Light-source life: 20,000 hours (At this time the brightness will have decreased to approximately half of its original level)
Brightness *3 1,000 lm
Center-to-corner uniformity *3 80 %
Contrast ratio *3 1,000:1 (Full white/Full black)
Screen size 30 200 inches (0.76 5.08 m)
Scanning frequency HDMI IN: 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60p, 1125 (1080)/50p, VGA/60, SVGA/56, SVGA/60, XGA/60, SXGA/60, 1280 x 720/50, 1280 x 720/60, 1280 x 768/50, 1280 x 768/60, 1280 x 800/50, 1280 x 800/60, 1600 x 900/50, 1600 x 900/60
Optical axis shift (from center of screen) Vertical: 50 % (fixed)
Keystone correction range Vertical: 40 , Horizontal: 40
HDMI IN HDMI 19-pin x 1, compatible with HDCP
LAN RJ-45 x 1 for network connection, 100Base-TX, 10Base-T, compatible with PJLink (Class 1)
AUDIO OUTPUT M3 x 1 (L-R x 1) for output (variable)
DC OUT USB connector (Type A) x 1 for power supply (DC 5 V, maximum 900 mA )
Card slot SD Card slot *4 x 1 (Supports SDHC memory card)
Wireless LAN IEEE802.11a/b/g/n
Cabinet materials Molded plastic (black)
Weight *5 Approx. 7.3 lb (3.3 kg)
Operation noise *3 30 dB (Eco Mode), 36 dB (Normal Mode) [with ET-JPC100 mount] 32 dB (Eco Mode), 37 dB (Normal Mode) [with ET-JPF100 mount]
Temperature *6 32 104 F (0 40 C)
Humidity 10% to 80% (No condensation)
Supplied accessories Wireless remote control unit Batteries for remote control ( R03/AAA or LR03/AAA x 2 ) Software CD-ROM ( Multi Monitoring & Control Software, Wireless Manager ) Card slot cap
Note Mount not included., Mount not included. Key Features: Projection with a laser light source (20,000 hours with limited maintenance)

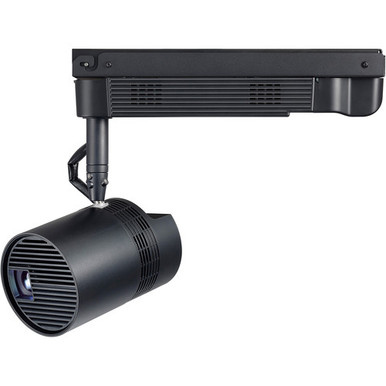

The PT-JW130FBU Space Player projector provides a hybrid illumination and image-projection solution to enhance displayed objects or create vivid signage in a variety of locations and applications.
Power supply AC 120 V, 50/60 Hz, 1.2 A
Standby Mode set to Normal 11 W Panel display method 0.45 inch DLP chip x 1, DLP projection system Pixels 1,039,680 pixels Resolution WXGA comparable Lens
Laser class Class 2
Light-source life 20,000 hours (At this time the brightness will have decreased to approximately half of its original level)
Brightness *3 1,000 lm Center-to-corner uniformity *3 80 %
Contrast ratio *3 1,000:1 (Full white/Full black) Screen size 30 200 inches (0.76 5.08 m) Scanning frequency
HDMI IN: 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60p, 1125 (1080)/50p, VGA/60, SVGA/56, SVGA/60, XGA/60, SXGA/60, 1280 x 720/50, 1280 x 720/60, 1280 x 768/50, 1280 x 768/60, 1280 x 800/50, 1280 x 800/60, 1600 x 900/50, 1600 x 900/60 Optical axis shift (from center of screen)
Vertical 50 % (fixed) Keystone correction range, 40 , Horizontal: 40 TERMINALS
HDMI IN HDMI 19-pin x 1, compatible with HDCP LAN
HDMI IN RJ-45 x 1 for network connection, 100Base-TX, 10Base-T, compatible with PJLink (Class 1)
AUDIO OUTPUT M3 x 1 (L-R x 1) for output (variable) DC OUT
AUDIO OUTPUT USB connector (Type A) x 1 for power supply (DC 5 V, maximum 900 mA ) Card slot
AUDIO OUTPUT SD Card slot *4 x 1 (Supports SDHC memory card)
AUDIO OUTPUT Wireless LAN IEEE802.11a/b/g/n Cabinet materials Molded plastic (black)
AUDIO OUTPUT Weight *5 Approx. 7.3 lb (3.3 kg)
AUDIO OUTPUT Operation noise *3 30 dB (Eco Mode), 36 dB (Normal Mode) [with ET-JPC100 mount] 32 dB (Eco Mode), 37 dB (Normal Mode) [with ET-JPF100 mount]
OPERATING ENVIRONMENT Temperature *6 32 104 F (0 40 C) Humidity 10% to 80% (No condensation) Supplied accessories
OPERATING ENVIRONMENT Wireless remote control unit
OPERATING ENVIRONMENT Batteries for remote control ( R03/AAA or LR03/AAA x 2 )
OPERATING ENVIRONMENT Software CD-ROM ( Multi Monitoring & Control Software, Wireless Manager ) Card slot cap
SKU PT-JW130FBU
