Display System 1-Chip 0.65″ DC3 DMD DLP
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Maximum: WUXGA – 1920 x 1200
Maximum Brightness 3200 Lumens
Uniformity 80%
Offset 120% 3%
Aspect Ratio Native: 16:10 Supported: 16:9 Supported: 4:3
DLP Link 3D Yes
Supported 3D Formats Frame Packing Side by Side Top Bottom
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15.375 to 91.146 kHz Vertical: 24 to 85 Hz or 120 Hz
Focus Manual
Lens f/2.5 – 3.26 (f = 20.91 – 32.62 mm)
Throw Distance 19.4 – 27″ / 49.276 – 68.58 cm
Throw Ratio 0.27:1
Projection Size 85 – 115″ / 215.90 – 292.10 cm
Keystone Correction Vertical: 40
Digital Zoom 2x
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes
Speaker Power 10W
Light Source Laser Phosphor
Expected Lamp Life Medium Brightness: 20,000 Hours
Fan Noise Medium Brightness: 32 dB
Security Cable Lock Slot Keypad Lock Security Bar
Supported Audio File Types MP3, WMA
Supported Document File Types DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX, DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX Supported Photo File Types BMP, GIF, JPEG
Supported Photo File Types BMP, GIF, JPEG
Supported Video File Types DivX, H.263, H.264/AVC, MKV, MPEG, MP4, MPEG2, , VC-1, WMV, Xvid
Power Consumption Full Brightness: 335 W Low Brightness: 225 W
Dimensions (W x H x D) 15.0 x 5.0 x 12.5″ / 38.1 x 12.7 x 31.8 cm
Package Weight 18.85 lb
Box Dimensions (LxWxH) 18.8 x 16.4 x 12.5″
The 3200 lumens of brightness and 100,000 1 dynamic contrast ratio of the ZW300UST combine to help produce bright imagery with sharp text.
The 3200 lumens of brightness and 100,000:1 dynamic contrast ratio of the ZW300UST combine to help produce bright imagery with sharp text.
The built-in computer-free USB media player supports playback of video and audio files along with shared images and presentations.

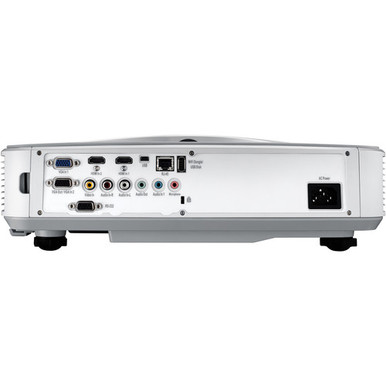

I/O connectivity includes HDMI, HDMI with MHL compatibility, VGA, Ethernet LAN, two audio inputs, and USB power.
The projector’s laser phosphor light source provides up to 20,000 hours of total projection time.
Optoma Technology ZW300UST Overview Built-in 10-Watt speakers help enhance presentations with audio.
Optoma Technology ZW300UST Overview Onboard HDMI MHL port supports a variety of optional HDMI dongles, including Optoma’s HDCast Pro, Chromecast, Fire TV, & more. In the Box

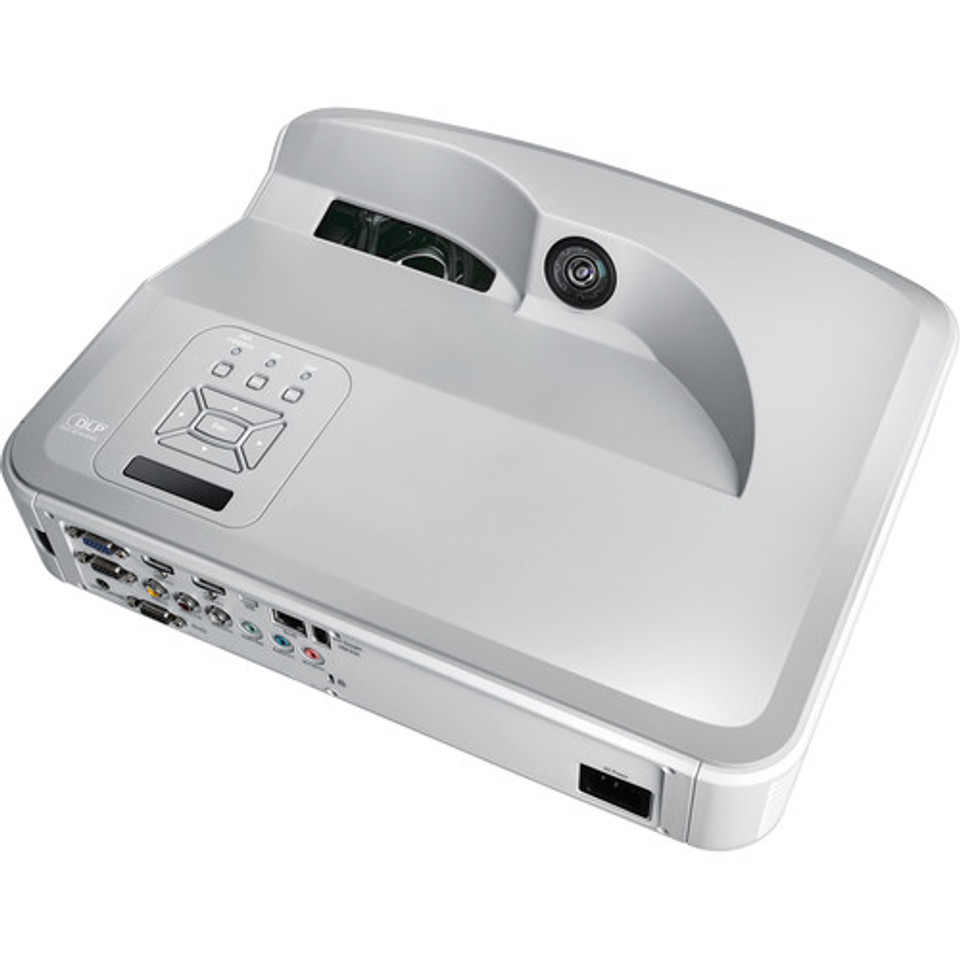

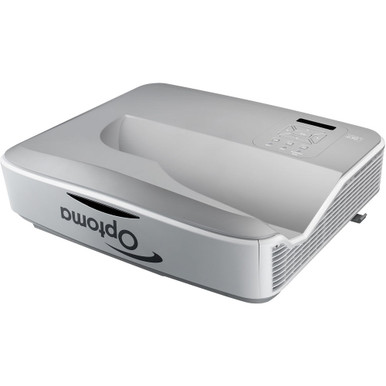

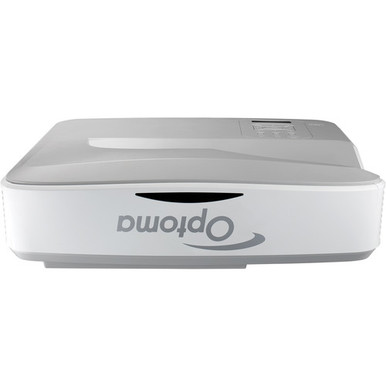

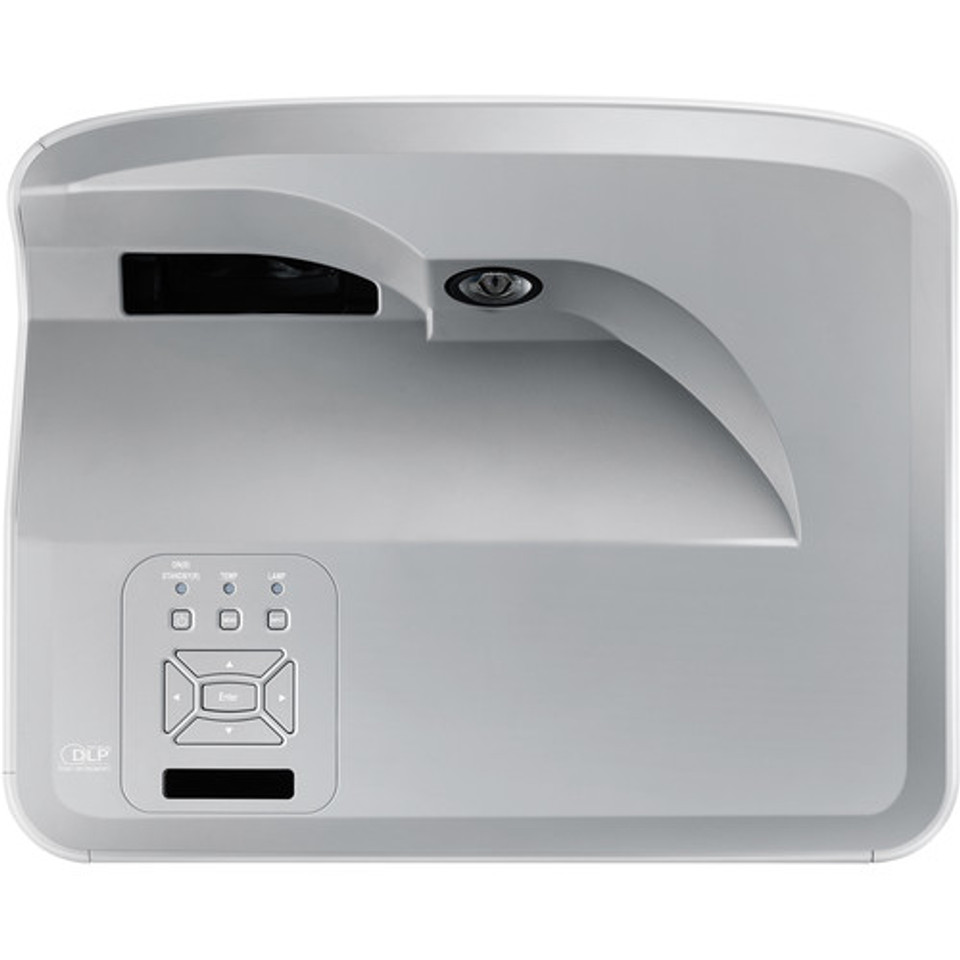

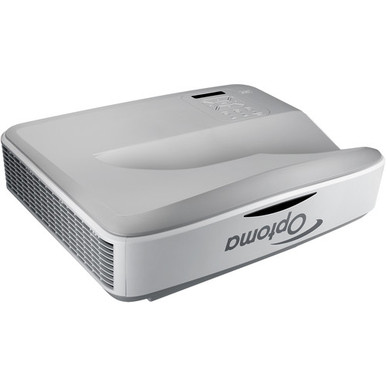

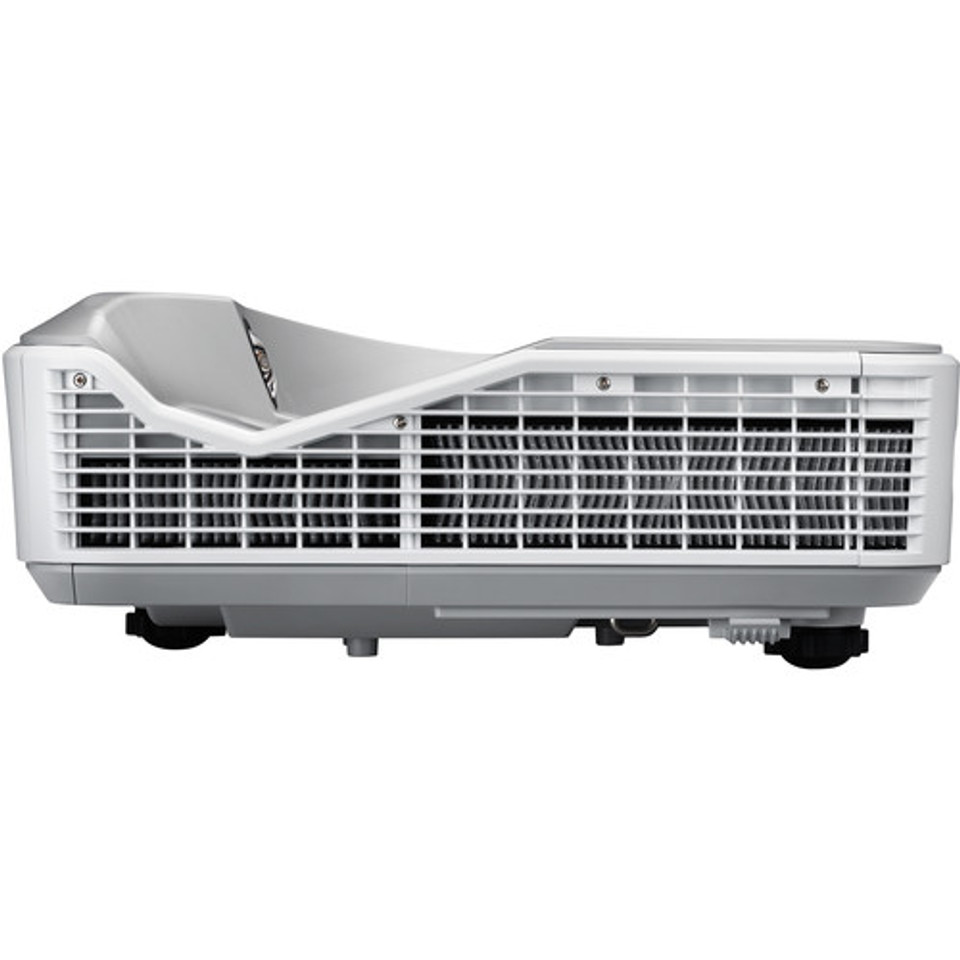

Optoma Technology ZW300UST Overview Optoma Technology ZW300UST 3200-Lumen WXGA Ultra-Short Throw Laser DLP Projector

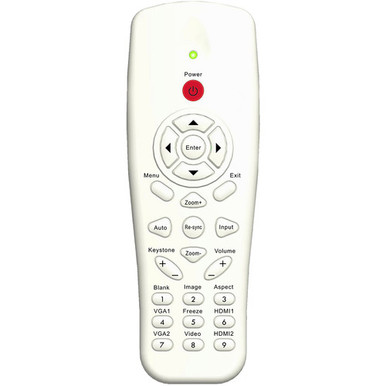

Optoma Technology ZW300UST Overview Remote Control with Batteries VGA Cable
AC Power Cord Limited 3-Year Warranty on Projector, 5-Year or 20,000-Hour Warranty on Light Source, Whichever Comes First Key Features
Brightness of 3200 Lumens WXGA (1280 x 800) Native Resolution
Brightness of 3200 Lumens VGA, HDMI, HDMI with MHL Inputs
VGA Output for Loop-Through Analog Audio Input and Output 10-Watt Speaker
Ethernet and RS-232 Controllable Optoma Technology ZW300UST Specs Image Display Display System 1-Chip 0.65″ DC3 DMD DLP
Ethernet and RS-232 Controllable Native Chip Resolution 1280 x 800 (WXGA) Supported Resolutions
Ethernet and RS-232 Controllable Maximum WUXGA – 1920 x 1200 Maximum Brightness 3200 Lumens Uniformity 80% Offset 120% 3%
Aspect Ratio Native 16:10
Aspect Ratio Supported 16:9, 4:3 DLP Link 3D Yes Supported 3D Formats Frame Packing Side by Side Top Bottom
Aspect Ratio Color Depth 10-Bit (1.07 Billion Colors) Scan
Aspect Ratio Horizontal 15.375 to 91.146 kHz
Aspect Ratio Vertical 24 to 85 Hz or 120 Hz Lens Focus Manual Lens
Throw Distance Throw Ratio 0.27:1
Projection Size 85 115″ / 215.90 – 292.10 cm Features Keystone Correction
Projection Size Vertical 40 Digital Zoom 2x Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes Speaker Power 10W General Light Source Laser Phosphor Expected Lamp Life
Projection Size Medium Brightness 20,000 Hours
Fan Noise Medium Brightness 32 dB Security Cable Lock Slot Keypad Lock Security Bar
Fan Noise Supported Audio File Types MP3, WMA
Supported Video File Types DivX, H.263, H.264/AVC, MKV, MPEG, MP4, MPEG2, , VC-1, WMV, Xvid
Power Consumption Full Brightness 335 W
Power Consumption Low Brightness 225 W
Power Consumption Dimensions (W x H x D) 15.0 x 5.0 x 12.5″ / 38.1 x 12.7 x 31.8 cm Packaging Info Package Weight 18.85 lb
Power Consumption Box Dimensions (LxWxH) 18.8 x 16.4 x 12.5″
SKU ZW300UST
Brand Optoma
MPN ZW300UST
GTIN 00796435440893, 796435440893
UPC 796435440893
