Display System 0.55″ DC3 DMD DLP
Native Chip Resolution 1024 x 768 (XGA)
Supported Resolutions Maximum: UXGA – 1600 x 1200
Maximum Brightness 3600 Lumens
Uniformity 80%
Offset 115% 5%
Aspect Ratio Native: 4:3 Supported: 16:9
Dynamic Contrast Ratio 22,000:1, 22,000:1 DLP Link 3D Yes Supported 3D Formats Side by Side (up to 1080i) Frame Packing (up to 720p) Top Bottom (up to 720p)
DLP Link 3D Yes
Supported 3D Formats Side by Side (up to 1080i) Frame Packing (up to 720p) Top Bottom (up to 720p)
Color Wheel 6-Segment (R/G/B/W/Y/C)
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 25 to 85 Hz or 120 Hz Vertical: 15 to 91 kHz
Focus Manual
Lens f/2.41 – 2.53 (f = 21.85 – 24.01 mm)
Optical Zoom 1.1x
Throw Distance 3.93 – 43.35′ / 1.198 – 13.213 m
Throw Ratio 1.95 to 2.15:1
Projection Size 27.34 – 304.5″ / 69.44 – 773.43 cm
Keystone Correction Vertical: 20 Auto-Horizontal: 20
Digital Zoom 2x
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes
Speaker Power 15W
Wireless LAN / Wi-Fi No, Optional Adapter Available
Light Source Lamp
Lamp Power 195 W
Expected Lamp Life Full Brightness: 5000 Hours Medium Brightness: 6000 Hours Medium Brightness: 10,000 Hours
Fan Noise Full Brightness: 31 dB Low Brightness: 29 dB
Security Cable Lock Slot Password Protection Security Bar
Supported Document File Types DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX, DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX Supported Photo File Types BMP, GIF, JPEG
Supported Photo File Types BMP, GIF, JPEG
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 294 W Low Brightness: 228 W
Dimensions (W x H x D) 11.7 x 3.8 x 9.1″ / 29.7 x 9.7 x 23.1 cm
Weight 5.51 lb / 2.50 kg
Package Weight 7.7 lb
Box Dimensions (LxWxH) 15.6 x 11 x 6.1″
XGA (1024 x 768) projection with 3600 lumens of brightness and a 22,000:1 dynamic contrast ratio
HDMI, VGA, composite video, and 1/8″ audio inputs with an 1/8″ audio output
USB Display Mode enables screen mirroring when connecting iOS and Android devices
Optional HDCast Pro enables wireless mirroring and streaming
Brightness of 3600 Lumens XGA (1024 x 768) Native Resolution
Brightness of 3600 Lumens VGA, RCA Composite, 2x HDMI Inputs
Brightness of 3600 Lumens One HDMI Input is MHL-Compatible
VGA Output for Loop-Through Analog Audio Input and Output Integrated 15-Watt Speaker
VGA Output for Loop-Through Includes Carrying Case & IR Remote Optoma Technology X365 Specs Image Display Display System 0.55″ DC3 DMD DLP
VGA Output for Loop-Through Native Chip Resolution 1024 x 768 (XGA) Supported Resolutions
VGA Output for Loop-Through Maximum UXGA – 1600 x 1200 Maximum Brightness 3600 Lumens Uniformity 80% Offset 115% 5%
Aspect Ratio Native 4:3
Aspect Ratio Supported 16:9
Aspect Ratio Color Wheel 6-Segment (R/G/B/W/Y/C), Depth 10-Bit (1.07 Billion Colors) Scan
Aspect Ratio Horizontal 25 to 85 Hz or 120 Hz
Aspect Ratio Vertical 15 to 91 kHz Lens Focus Manual Lens
Throw Distance Throw Ratio 1.95 to 2.15:1
Projection Size Vertical 20
Projection Size Auto-Horizontal 20 Digital Zoom 2x Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes Speaker Power 15W

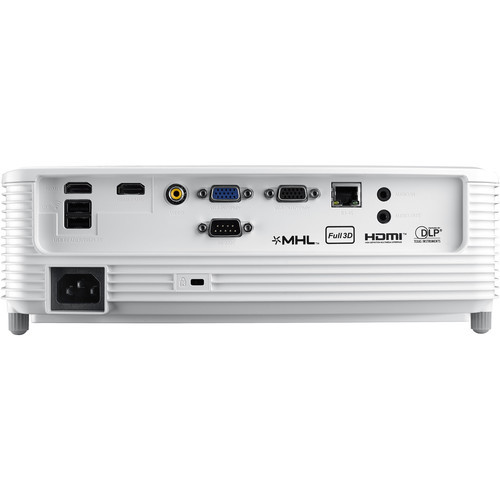

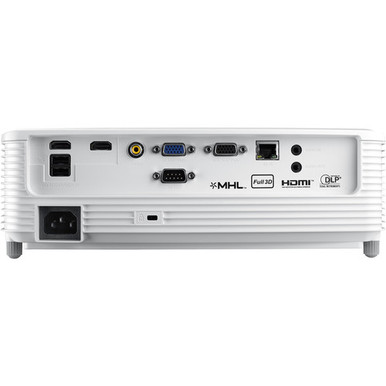

1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input, (HDMI Type-A) Audio, Video Input
Input/Output Connectors Inputs/Outputs 1 x VGA (DE-15/DB-15) Video Input, x VGA (DE-15/DB-15) Video Output
1 x Composite (2RCA) Video Input 1 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN Input/Output
1 x USB 2.0 (USB Type-A) LAN Input, 2.0 (USB Type-A) Audio, Data, Power, Video Input/Output, 2.0 (USB Type-A) Service Input 1 x 12 V Trigger Control Input Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi No, Optional Adapter Available General Light Source Lamp Lamp Power 195 W Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 5000 Hours
Input/Output Connectors Inputs/Outputs Medium Brightness 6000 Hours, 10,000 Hours
Fan Noise Full Brightness 31 dB
Fan Noise Low Brightness 29 dB Security Cable Lock Slot Password Protection Security Bar
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 294 W
Power Consumption Low Brightness 228 W
Power Consumption Dimensions (W x H x D) 11.7 x 3.8 x 9.1″ / 29.7 x 9.7 x 23.1 cm Weight 5.51 lb / 2.50 kg Packaging Info Package Weight 7.7 lb
Power Consumption Box Dimensions (LxWxH) 15.6 x 11 x 6.1″
SKU X365
Brand Optoma
MPN X365
GTIN 00796435441913, 796435441913
UPC 796435441913
