Description

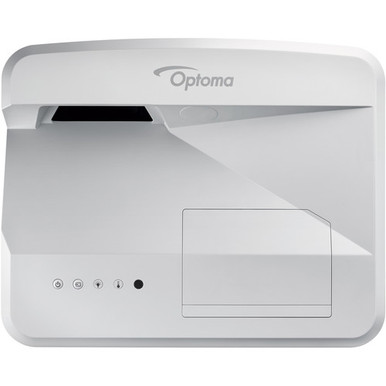

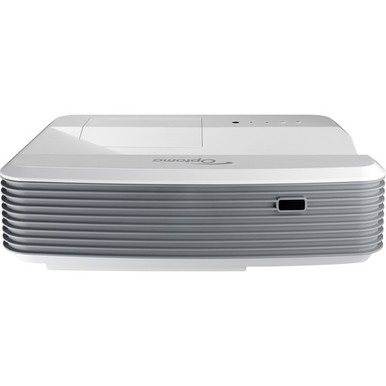

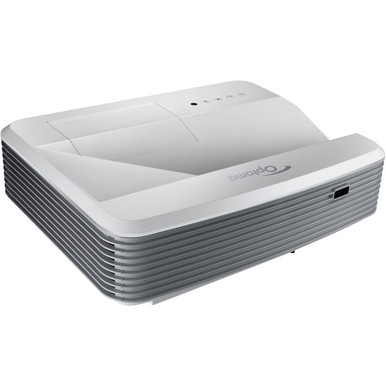

Optoma Technology W320USTi Overview
The W320USTi 4000-Lumen WXGA Ultra-Short Throw Interactive Projector from Optoma is suitable for business and education applications where bright projection is required. It features a 4000-lumen output and 20,000:1 contrast ratio. The projector comes equipped with a powerful 16W speaker and a 6500-hour lamp life. With a throw ratio of 0.27, it allows for a 100" image to be displayed from a throw distance of just 24".
The W320USTi ten-touch point TouchBeam interactive technology is Windows 8.1 and 10 compliant, with full Windows Touch support. Whether participants are engaged using the included pens or their fingers, the W320USTi enables multiple participants to engage simultaneously with the presenter for the ultimate presentation experience.
High Contrast
You can add more depth to your image with a high contrast projector. With brighter whites and ultra-rich blacks, text appears crisp and clear. For vibrant, natural looking images, Optoma projectors incorporate BrilliantColor multicolor processing technology.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting, and gaming consoles. Support for 144 Hz rapid refresh rate provides ultra-smooth flicker-free images.
Quick Resume Function
The Quick Resume feature allows the projector to be instantly powered on again, if it is accidentally switched off.
Auto Power Off Function
There may be instances when the projector is left running when not in use. To help save energy, the "Auto Power Off" feature automatically turns the projector off after a set period of time if it is not being used.
Eco AV Mute
Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen when it is no longer needed by blanking the image. This reduces the power consumption by up to 70%, further prolonging the life of your lamp.

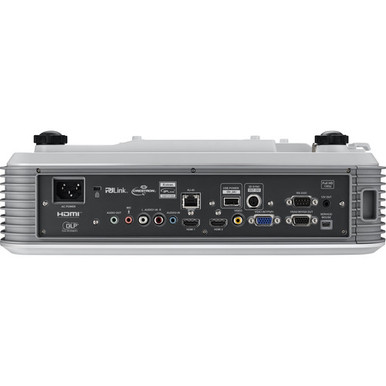

Networking and Control
You can remotely control and monitor the projector using a wide range of options. An extensive set of RS-232 commands makes it easy and simple to manage by using any control system. Dynamic discovery protocol is incorporated, allowing for easy installation with AMX control systems. Using the compatible RoomView software (not included) you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
Remote Mouse Control
The projector supports a USB mouse. You can keep your audience's attention focused on the right things by using the simple remote with the USB mouse control.
USB Power
You can use the USB to power an HDMI dongle, such as a Google Chromecast (not included) or the Optoma WHD200 wireless HDMI device (not included).
Optoma Technology W320USTi Specs
Image Display
| Display System | 0.65" DC3 DMD DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 4000 Lumens |
| Uniformity | 85% |
| Offset | 115% |
| Aspect Ratio | Native: 16:10 Supported: 16:9 Supported: 4:3 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Side by Side Frame Packing Top Bottom Frame Packing |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15.3 to 91.1 kHz Vertical: 28 to 85 Hz |
Lens
| Lens | f/2.4 (f = 3.72 mm) |
| Throw Distance | 1.64 - 1.969' / 0.5 - 0.6 m |
| Throw Ratio | 0.27:1 |
| Projection Size | 80 - 100" / 203.20 - 254.00 cm |
Features
| Keystone Correction | Vertical: ± 40° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
General
| Lamp Power | 350 W |
| Expected Lamp Life | Medium Brightness: 3000 Hours Low Brightness: 6500 Hours |
| Fan Noise | Medium Brightness: 36 dB |
| Security | Cable Lock Slot Keypad Lock Security Bar |
| Power Consumption | Full Brightness: 350 W Low Brightness: 300 W Standby Mode (Lamp Off): 0.5 W |
| Dimensions (W x H x D) | 15.2 x 12.2 x 4.7" / 38.5 x 31.0 x 12.0 cm |
| Weight lb | 10.7 lbs |
