Display System 0.65″ DMD DLP
Native Chip Resolution 1920 x 1080 (Full HD)
Supported Resolutions Maximum: DCI 4K – 4096 x 2160
Maximum Brightness 4200 Lumens
Uniformity 75%
Offset 115%
Aspect Ratio Native: 16:9 Supported: 4:3
Dynamic Contrast Ratio 300,000:1, 300,000:1 DLP Link 3D Yes Supported 3D Formats Frame Packing Side by Side Top Bottom
DLP Link 3D Yes
Supported 3D Formats Frame Packing Side by Side Top Bottom
Color Wheel 4-Segment (RGBY)
Color Depth 10-Bit (1.07 Billion Colors)
Scan Vertical: 24 to 85 Hz or 120 Hz Horizontal: 15.375 to 91.146 kHz
Lens f = 7.42 mm
Optical Zoom None
Throw Distance 3 – 11′ / 0.914 – 3.353 m
Throw Ratio 0.5:1
Projection Size 36.43 – 301.4″ / 92.53 – 765.56 cm
Keystone Correction Auto-Horizontal: 30 Auto-Vertical: 30
Supported HDR Input Formats HDR10, Hybrid Log Gamma
Digital Zoom 2x
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Stereo)
Speaker Power 20W
Projection Tilt Option Yes
Remote Laser Pointer
Wireless LAN / Wi-Fi None
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours
Fan Noise Medium Brightness: 32 dB
Security Cable Lock Slot Password Protection
AC Input Power 110 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 277 W Low Brightness: 212 W
Operating Altitude 10,000′ / 3048 m
Operating Temperature 41 to 104 F / 5 to 40 C
Operating Humidity 0 to 85%
Dimensions (W x H x D) 13.3 x 4.8 x 10.5″ / 336.8 x 121.9 x 266.7 mm
Weight 10 lb / 4.54 kg
Package Weight 13.49 lb
Box Dimensions (LxWxH) 19.3 x 14.9 x 7.8″

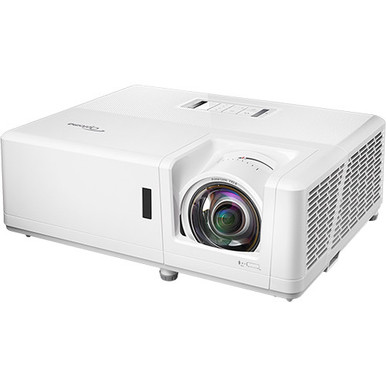

Enjoy bright images and high dynamic contrast at short distances with the Optoma ZH406ST 4200-Lumen Full HD Short-Throw Laser DLP Projector . Its native 1920 x 1080 Full HD resolution displays data and images clearly at short viewing distances, while its 300,000:1 dynamic contrast ratio helps enhance detail in dark images. Its 0.5:1 throw ratio allows you to place the projector just 11′ from the screen for 300″ images without losing focus.
Turn the projector on directly from the power source for easy installation with power-on timers. The sleep timer can be used to turn the projector off after a set time.
Signal Power On The projector can power on when it receives a signal via HDMI, ensuring that it’s turned on at the same time as the source device. RS-232 Control
Control the projector using HEX or ASCII commands via RS-232. Compatible software options include Extron, AMX, and Telnet.
Signal Power On Compatible with Crestron RoomView Network Control
Signal Power On Optional Crestron software provides a custom-configurable interface to monitor, manage, and control compatible devices and up to 250 projectors remotely from nearly any computer. Additional Features
Signal Power On DuraCore virtually maintenance-free laser light source
Signal Power On Suitable for 24/7, 360 , and portrait mode operation
One DCI 4K-compatible HDMI 2.0 port, one HDMI 1.4 port
Signal Power On GUI and on-screen menu in 27 languages
Signal Power On Optoma Technology ZH406ST Specs Image Display Display System 0.65″ DMD DLP
Signal Power On Native Chip Resolution 1920 x 1080 (Full HD) Supported Resolutions
Signal Power On Maximum DCI 4K – 4096 x 2160 Maximum Brightness 4200 Lumens Uniformity 75% Offset 115%
Aspect Ratio Native 16:9
Aspect Ratio Supported 4:3
Aspect Ratio Color Wheel 4-Segment (RGBY), Depth 10-Bit (1.07 Billion Colors) Scan
Aspect Ratio Vertical 24 to 85 Hz or 120 Hz
Aspect Ratio Horizontal 15.375 to 91.146 kHz Lens Lens f = 7.42 mm Optical Zoom None
Throw Distance Throw Ratio 0.5:1
Projection Size Auto-Horizontal 30
Projection Size Auto-Vertical 30
Supported HDR Input Formats HDR10, Hybrid Log Gamma Digital Zoom 2x Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes (Stereo) Speaker Power 20W
Supported HDR Input Formats Projection Tilt Option Yes Remote Laser Pointer

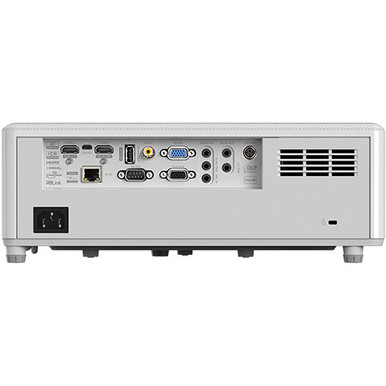

1 x HDMI with MHL Support (HDMI Type-A) Audio, Control, Video Input, (HDMI Type-A) Audio, Video Input
Input/Output Connectors Inputs/Outputs 1 x VGA (DE-15/DB-15) Video Input, x VGA (DE-15/DB-15) Video Output
1 x Composite (RCA) Video Input 2 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Microphone Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x VESA 3D Sync (3-Pin DIN) Data Output
1 x Ethernet (RJ45) LAN
1 x USB 2.0 (USB Type-A) Power Output, 2.0 (Mini-USB) Service Input 1 x RS-232 (DE-9/DB-9) Control 1 x 12 V Trigger Control Output
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi None General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 30,000 Hours
Fan Noise Medium Brightness 32 dB Security Cable Lock Slot Password Protection
Fan Noise AC Input Power 110 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 277 W
Power Consumption Low Brightness 212 W
Power Consumption Operating Altitude 10,000′ / 3048 m, Humidity 0 to 85%
Power Consumption Operating Temperature 41 to 104 F / 5 to 40 C
Power Consumption Dimensions (W x H x D) 13.3 x 4.8 x 10.5″ / 336.8 x 121.9 x 266.7 mm Weight 10 lb / 4.54 kg Packaging Info Package Weight 13.49 lb
Power Consumption Box Dimensions (LxWxH) 19.3 x 14.9 x 7.8″
SKU ZH406ST
Brand Optoma
MPN ZH406ST
GTIN 00796435444396, 796435444396
UPC 796435444396
