Display System 0.47″ DMD DLP
On-Screen Resolution Up to 4K UHD (3840 x 2160) via Pixel-Shift Technology
Supported Resolutions Maximum: DCI 4K – 4096 x 2160 @ 30 Hz
Maximum Brightness 3000 Lumens (ANSI)
Uniformity 90%
Offset 124%
Aspect Ratio Native: 16:9 Supported: 4:3
Dynamic Contrast Ratio 2,000,000:1, 2,000,000:1 DLP Link 3D Yes Supported 3D Formats Frame Packing (up to 1080p) Side by Side Top Bottom
DLP Link 3D Yes
Supported 3D Formats Frame Packing (up to 1080p) Side by Side Top Bottom
Color Wheel 6-Segment (RGBRGB)
Color Depth 10-Bit (1.07 Billion Colors)
Scan Vertical: 50 to 85 Hz or 120 Hz Horizontal: 15.375 to 91.146 kHz
Latency 67.1 to 67.6 ms
Focus Auto
Lens f/2.04 (f = 52.5 mm)
Optical Zoom None
Throw Distance 8 – 16.5″ / 20.32 – 41.91 cm
Throw Ratio 0.25:1
Projection Size 85 – 120″ / 215.90 – 304.80 cm
Keystone Correction Vertical: – 10 Vertical: + 5 Horizontal: 5
Supported HDR Input Formats HDR10
Digital Zoom 2x
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Stereo)
Speaker Power 40W

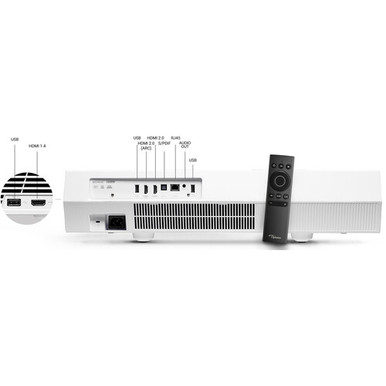

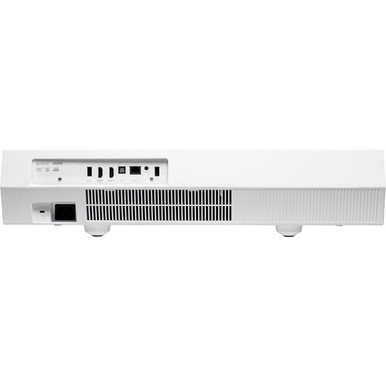

Inputs/Outputs 2 x HDMI 2.0 (HDMI Type-A) Audio, Video Input 1 x HDMI 1.4a (HDMI Type-A) Audio, Video Input 1 x Optical (TOSLINK) Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output 2 x USB 2.0 (USB Type-A) Data Input 1 x USB 2.0 (USB Type-A) Power Output 1 x Ethernet (RJ45) LAN
HDCP Support Version 2.2
Virtual Assistant Support Amazon Alexa, Google Assistant
Operating System Android 8.0
Wireless LAN / Wi-Fi Yes, Built-in
Bluetooth 4.0
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours
Fan Noise Full Brightness: 28 dB Medium Brightness: 26 dB
Security Cable Lock Slot Password Protection
Supported Audio File Types AAC, FLAC, MP3, WAV
Supported Document File Types DOC, PDF, PPT, XLS
Supported Photo File Types BMP, GIF, JPEG
Supported Video File Types AVI, H.264/AVC, H.265/HEVC, M4V, MKV, MOV, MP4, TS
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 410 W Low Brightness: 255 W
Operating Altitude 10,000′ / 3048 m
Operating Temperature 41 to 104 F / 5 to 40 C
Operating Humidity 0 to 85%
Dimensions (W x H x D) 22.1 x 5.1 x 15.0″ / 56.1 x 13.0 x 38.1 cm
Weight 24.25 lb / 11 kg
Package Weight 30 lb
Box Dimensions (LxWxH) 29.25 x 19.5 x 10.5″
3840 x 2160, 30 Hz YUV 4 4:4 / 4:2:2 / 4:2:0 (8 / 10 / 12-bit)
3840 x 2160, 60 Hz YUV 4 4:4 / YUV 4:2:2 (8-bit), YUV 4:2:0 (8 / 10 / 12-bit)
The CinemaX P2 has three HDMI inputs for connecting your favorite home A/V gear, and two USB ports support multimedia playback. A 40W stereo soundbar is built-in to eliminate the need for a separate speaker system. You can control the projector via your favorite Amazon Alexa- or Google Assistant-enabled devices, or through commands via IFTTT. A rechargeable Bluetooth remote control is included as an added convenience. Key Features

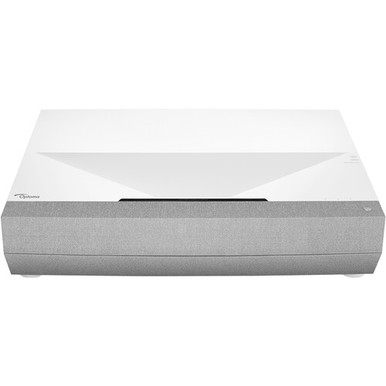

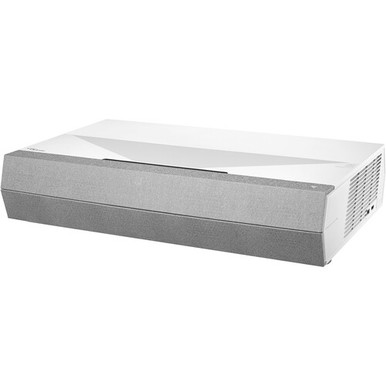

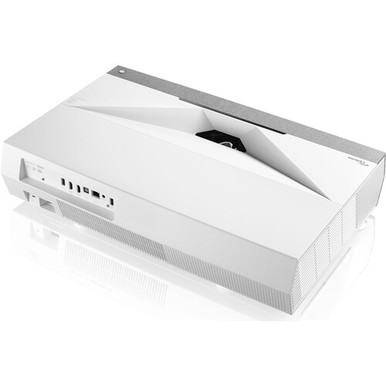

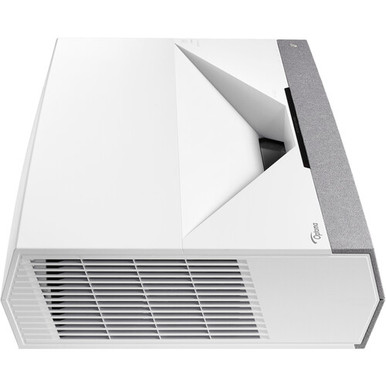

Optoma Technology Cinemax P2 Overview Brightness of 3000 Lumens 4K UHD 3840 x 2160 On-Screen Resolution
HDR10 Support 2x USB, 3x HDMI Inputs
HDR10 Support Onboard Android 8.0 Operating System
Wi-Fi & Ethernet Connectivity
4K UHD On-Screen Resolution with HDR10 Compatibility and More, HDR compatibility, glass optics, a laser light source, PureMotion image processing, and enhanced audio come together to produce a cinematic experience nearly anywhere. Designed for Cinematic Color
Enjoy rich colors and augmented brightness with the six-segment RGBRGB color wheel, which is designed to reproduce movies, TV shows, and games the way the directors intended.
Wide Color Gamut The CinemaX P2 supports the DCI-P3 color space for vivid, accurate, lifelike colors. Laser Light Source, P2 can display true 3D content from almost any 3D source, including 3D Blu-ray Disc players, 3D broadcasting, and gaming consoles.
Laser technology delivers enhanced brightness for up to 30,000 hours, maintaining image quality throughout its lifespan. 3000 lumens of brightness enable lights-on viewing in a variety of environments. PureMotion Technology
Wide Color Gamut Using sophisticated frame-interpolation technology, advanced motion control processing eliminates motion blurring or image judder, even in high-speed action sequences. 3D Compatibility
Superior Audio Performance Enjoy deeper, fuller, and superior bass performance from the integrated soundbar with Dolby Digital 2.0. Designed using a vented enclosure and precision-engineered ports, this compact projector can extend low-pitch and low-frequency soundwaves and can even deliver 360 omnidirectional sound. The audio performance of the CinemaX P2 is suitable for any home environment and perfect for movies. TapCast
Superior Audio Performance Wirelessly display and share content on a big screen using the TapCast app. Easily mirror your Android, iOS, Windows, macOS, and Chrome device at the touch of a button, or wirelessly cast documents, images, or videos stored on your mobile device or laptop. The app also acts as a wireless mouse and keyboard, allowing you to control the projector. Built-In Media Player
Superior Audio Performance Watch movies directly from your projector without a computer by using the built-in media player. Simply copy your files to a USB stick and watch them on the big screen. App Access
Superior Audio Performance Access compatible apps such as YouTube and Spotify using the built-in app store, Marketplace. Perfect for streaming movies, TV shows, and clips.

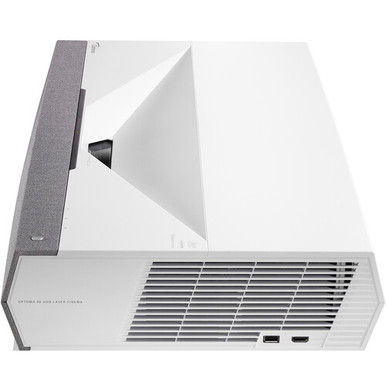

Ultra-Short Throw with up to 120″ Images
Superior Audio Performance The CinemaX P2 features a space-saving, ultra-short throw design that offers convenient placement for a big-screen experience up to 120″ images from just 16.5″ away from your wall or screen. Easy Image Alignment, P2 is capable of decoding Dolby 5.1 to deliver rich, clear, and powerful sound. It even supports pass-through via its optical out so that you can connect it to your surround sound system.
Superior Audio Performance Adjust individual points to get the image perfectly square using the advanced built-in geometric correction tool. This is ideal if you do not want to use a screen and have an uneven wall you want to project onto. SmartFIT App
Superior Audio Performance Take the hassle out of adjusting the projector and automatically align the projected image using the camera on your mobile device with the SmartFIT app. Using your smart device’s camera, the app takes a photo of the projected image and adjusts it accordingly within seconds. Exercise at Home
Superior Audio Performance If you can’t make it to the gym, you can stay fit and energized with at-home workouts via your favorite streaming services or the YouTube app. The CinemaX P2 projects large images to give you the at-the-gym feeling. Built-In Soundbar
Superior Audio Performance An integrated 40W soundbar is engineered to produce detailed sound and dialogue clarity. The combination of two full-range aluminum drivers and two woofers are designed to produce smooth midrange frequencies, clear vocals, and deep bass. Gaming Mode
Superior Audio Performance This feature allows you to save your calibrated day and night mode settings for the highest possible viewing experience.
Superior Audio Performance Color Management System (CMS)
Display accurate, lifelike colors to best match your viewing environment. This unique feature provides you with the flexibility to fine-tune the color settings for optimal precision. 24p Compatibility
Superior Audio Performance Most movies are shot at 24 frames per second (fps). To preserve the purity of the original image, the CinemaX P2 can accept HD sources at 24 fps to display movies exactly as the director intended. Dolby Audio
Use the USB Type-A port to power an HDMI adapter, such as Google Chromecast. InfoWall
USB Power Create a personalized digital wall of tailored information. Using the Optoma connect app, you can schedule the projector to display the weather, videos, and social media feeds. You can even schedule it to turn on at set times or wake you up naturally to a calming and relaxing playlist. Optoma Connect App
The multi-purpose Optoma Connect app allows you to set up Alexa and the Google Assistant, control the projector from your smart device, and create and schedule InfoWall features.
USB Power Color Depth 3840 x 2160, 30 Hz YUV 4:4:4 / 4:2:2 / 4:2:0 (8 / 10 / 12-bit) 3840 x 2160, 60 Hz YUV 4:4:4 / YUV 4:2:2 (8-bit), YUV 4:2:0 (8 / 10 / 12-bit) Additional Features
Dolby Digital Plus and DTS audio pass-through via HDMI ARC or the optical connection
USB Power Supports Rec.709 and Rec.2020 color gamuts
USB Power Simulated HDR effect with non-HDR content via HDR SIM 4K UHD upscaling from as low as 720p
Durable, reliable laser light source Movie, Music, Sport, Game, and Night sound effect modes
USB Power Compatible with Crestron RoomView and HDMI-CEC Customizable Android OS
USB Power Optoma Marketplace with access to YouTube 4K, Netflix (480p), CNBC, TED TV, NBA TV, CNBC, BBC, and more, Technology Cinemax P2 Specs Image Display Display System 0.47″ DMD DLP On-Screen Resolution Up to 4K UHD (3840 x 2160) via Pixel-Shift Technology Supported Resolutions
USB Power Dual-band Wi-Fi 5 (802.11ac) for internet access and OTA (over the air) updates
USB Power WEP, TKiP, AES, WPA, WPA2 Wi-Fi security
USB Power Maximum DCI 4K – 4096 x 2160 @ 30 Hz Maximum Brightness 3000 Lumens (ANSI) Uniformity 90% Offset 124%
Aspect Ratio Native 16:9
Aspect Ratio Supported 4:3
Aspect Ratio Color Wheel 6-Segment (RGBRGB), Depth 10-Bit (1.07 Billion Colors) Scan
Aspect Ratio Vertical 50 to 85 Hz or 120 Hz
Aspect Ratio Horizontal 15.375 to 91.146 kHz Latency 67.1 to 67.6 ms Lens Focus Auto Lens f/2.04 (f = 52.5 mm) Optical Zoom None
Throw Distance Throw Ratio 0.25:1
Projection Size 85 120″ / 215.90 – 304.80 cm Features Keystone Correction
Projection Size Vertical – 10, + 5
Projection Size Horizontal 5
Projection Size Supported HDR Input Formats HDR10 Digital Zoom 2x
Projection Size Multi-Input Support (PIP/PBP)
Projection Size Not Specified by Manufacturer Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes (Stereo) Speaker Power 40W
2 x HDMI 2.0 (HDMI Type-A) Audio, Video Input
1 x HDMI 1.4a (HDMI Type-A) Audio, Video Input
1 x Optical (TOSLINK) Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output
2 x USB 2.0 (USB Type-A) Data Input
1 x USB 2.0 (USB Type-A) Power Output
1 x Ethernet (RJ45) LAN HDCP Support Version 2.2 Hardware Virtual Assistant Support
Input/Output Connectors Inputs/Outputs Operating System Android 8.0
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi Yes, Built-in Bluetooth 4.0 General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 30,000 Hours
Fan Noise Full Brightness 28 dB
Fan Noise Medium Brightness 26 dB Security Cable Lock Slot Password Protection
Fan Noise Supported Audio File Types AAC, FLAC, MP3, WAV
Supported Video File Types AVI, H.264/AVC, H.265/HEVC, M4V, MKV, MOV, MP4, TS
Supported Video File Types AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 410 W
Power Consumption Low Brightness 255 W
Power Consumption Operating Altitude 10,000′ / 3048 m, Humidity 0 to 85%
Power Consumption Operating Temperature 41 to 104 F / 5 to 40 C
Power Consumption Dimensions (W x H x D) 22.1 x 5.1 x 15.0″ / 56.1 x 13.0 x 38.1 cm Weight 24.25 lb / 11 kg Packaging Info Package Weight 30 lb
Power Consumption Box Dimensions (LxWxH) 29.25 x 19.5 x 10.5″
SKU CINEMAXP2
