- Four corner correction for basic stacking
- 360° and portrait mode operation
- Light source life up to 30,000 hrs, IP5X-certified engine
- Horizontal and vertical lens-shift with keystone
- Maintenance free – no filters needed
- Superior color with DuraCore laser technology
- Built-in HDBaseT

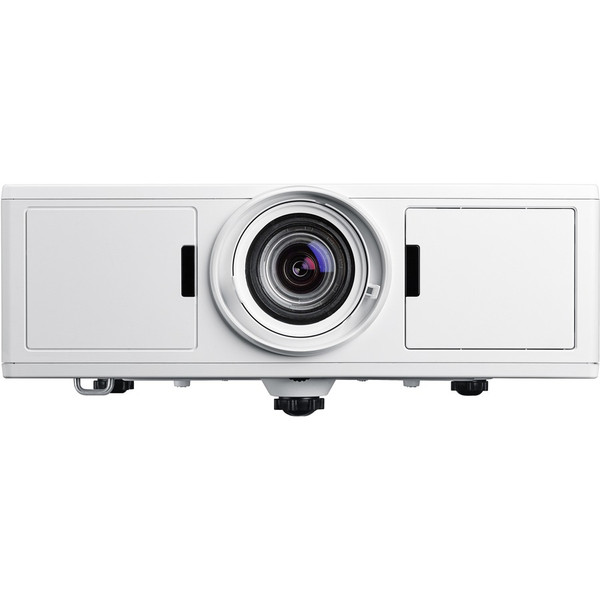

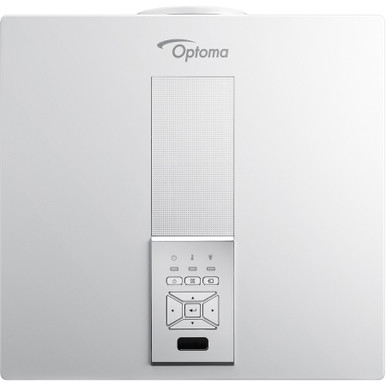

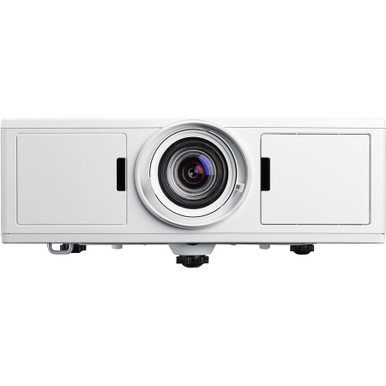

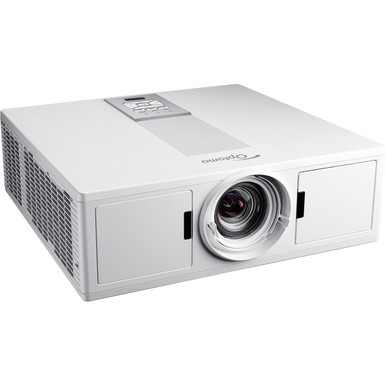

5500 lumens WUXGA phosphor laser projector
The Optoma ProScene ZU510T-B is a bright and vivid 5,300 lumen WUXGA ProAV projector with advanced optics, low weight and compact size perfect for boardrooms, higher education, houses of worship and small entertainment venues. A DuraCore laser light source
and IP5X-certified dust resistance for the optical engine delivers reliable and cost-efficient operation without lamp or filter changes for minimal maintenance.
It’s engineered for maximum installation flexibility with horizontal and vertical lens-shift, a 1.2-to-2.13 throw ratio and 1.8x digital zoom. The unique design enables it to cover a range of projection distances without changing or purchasing additional
lenses.
Robust inputs, including HDMI with MHL, VGA and HDBaseT, streamlines integration for fixed-installs. A pair of 10-watt speakers delivers crisp and clear audio.
| Contrast Ratio | 300000:1 | |||||||
|---|---|---|---|---|---|---|---|---|
| Wireless Networking | No | |||||||
| Speakers | 10.0 W Mono | |||||||
| Economode | 20,000 hrs | |||||||
| Audible Noise | 35 dB | |||||||
| Lamp Life | 20,000 hrs | |||||||
| Short Throw | No | |||||||
| Native Resolution | 1920 x 1200 | |||||||
| Display Technology | DLP | |||||||
| Aspect Ratio | 16:10 (WUXGA) | |||||||
| Image Size Diagonal | 27.90" - 301.89" | |||||||

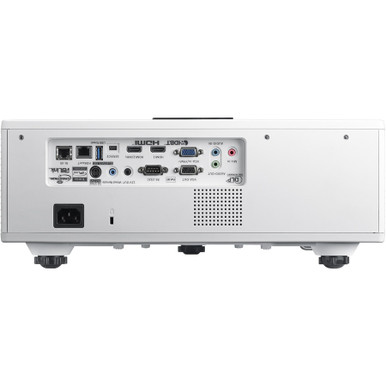

| Inputs | VGA In (Dsub-15pin), HDMI, HDMI, HDMI (MHL), Audio In (Mini Jack), | |||||||
| Lens Shift | Horizontal & Vertical | |||||||
| Outputs | Audio Out (Mini Jack), VGA Out (Dsub-15pin) | |||||||
| Data / Video Signals | 720p, 1080i, 1080p/60, 1080p/24, 1080p/50, 576i, 576p, 480p, 480i | |||||||
| Digital Keystone | Horizontal & Vertical | |||||||
| Throw Distance | 4.2' - 25.6' | |||||||
| Unit Weight | 24.2 lbs | |||||||
| Lens | Std. Zoom Lens: 1.80:1 Std. Lens Focus: Manual | |||||||
| Projector Methods | Front, Rear, Ceiling Mount, Table Top | |||||||
| Lumens (ANSI) | 5500 ANSI Lumens | |||||||
| Dimensions (WxDxH) | 5.00" x 15.75" x 16.00" | |||||||
