Virtually maintenance-free 20,000-hour laser light source 2, 2 ; IP5X-rated hermetically sealed optical and light source module for high dust resistance; filterless cabinet; optimized liquid cooling system Stunning image quality
High native contrast for a realistic display, ratio for deep blacks; 50 percent improvement over the already high contrast ratio found with the current Epson EB-PU Series; frame interpolation for fast moving objects; HDR support 3 and scene adaptive gamma correction Simplified installation
Simplified installation with 9 optional powered lenses Incredible color
4K resolution on-screen
10 optional powered lenses (sold separately) including ultra short throw .35 throw lens with a unique zero offset design for installation flexibility; projector compatible with existing Epson lens family Enhanced connectivity
HDMI two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted
Mechanical shutter protects projector from damage during laser light shows Eco Features RoHS compliant
End-of-life options available 9, options available10
power cable
Projection System High-aperture Epson 3-chip 3LCD technology
Projection Method Front/rear/ceiling mount
Driving Method Poly-Silicon TFT Active Matrix
Signal Input Maximum Display Resolution 4096 x 2160 pixels (resizing display)
Native Resolution 1080p with 4K Crystal Motion (1920 x 1080 x 4)
Resolution on Screen 4K UHD (3840 x 2160)
Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9*
Color Brightness1 Color Light Output 16,000 lumens
White Brightness1 White Light Output 16,000 lumens
Contrast Ratio Up to 5,000,000:1 (Dynamic Contrast: On)
Brightness Uniformity (Typical) 85%
Color Reproduction Up to 1.07 billion colors
Keystone Correction Vertical 45 degrees;
Horizontal 30 degrees
Illumination Technology Laser Phosphor Light Source Life3 20,000 hours (Normal Mode) 30,000 hours (Extended Mode)
Illumination Technology Laser Phosphor Projection Lens (Standard)
Illumination Technology Laser Phosphor Visit www.epson.com for information on optional lenses.
Illumination Technology Laser Phosphor Standard Lens ELPLM15 (sold separately)
Illumination Technology Laser Phosphor Type Powered shift/focus/zoom
Illumination Technology Laser Phosphor F-Number 2.0 2.1
Illumination Technology Laser Phosphor Focal Length 14.8 mm 17.7 mm
Illumination Technology Laser Phosphor Zoom Ratio Optical Zoom: 1.0 1.6
Throw Ratio Range 1.52 2.47
Lens Shift Vertical 60%; Horizontal: 18% Other Features
Illumination Technology Laser Phosphor Operating Temperature 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
Power Supply Voltage 100 120 V AC +/- 10%, 50/60 Hz 200 240 V AC +/- 10%, 50/60 Hz
Illumination Technology Laser Phosphor Power Consumption (220-240 V) 1,114 W (Normal/Custom) 784 W (Quiet/Extended) 2.0 W Standby (Network Standby) 0.4 W Standby (Energy Saving)
Illumination Technology Laser Phosphor Fan Noise 44 dB (Normal Mode); 36 dB (Eco Mode) IP Rating IPSX8
Security Security cable hole, lens lock, Kensington
lock provision, wireless LAN unit lock
Video I/O Input Signal Input Video Signal (HDMI and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160
Video I/O Auto Power On Signal Detection on HDMI/Plug-In Detection (HDMI) Sleep Mode Yes (with timer)
HDMI CEC Control Yes Dimensions (W x D x H)
HDMI CEC Control Yes Excluding Feet 23.1″ x 19.4″ x 7.3″ (586 mm x 492 mm x 185 mm)
HDMI CEC Control Yes Weight 64.3 lb (29.2 kg) Remote Control
HDMI CEC Control Yes Features Power, Source Search Selection, Lens Shift/Zoom/ Focus, Test Pattern Selection, Shutter, Freeze, ID, Color Mode,
Number, E-Zoom, Volume, Menu, Enter, ESC, Pointer Functions,
Blend Guides, Multi-Projection, Color Tone Adjust and Memory
Operating Angle Front Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
Operating Angle Rear Right/Left: 30 to +30; Upper/Lower: +40 to +5 degrees
Operating Angle Operating Distance 98 ft Eco Features RoHS compliant
Operating Angle Epson America, Inc. is a SmartWay Transport Partner11 Limited Warranty and Service, PreferredSM Plus Extended Service Plan 3-Year Upgrade to Next-Business-Day Whole Unit
Operating Angle Website www.epson.com
Operating Angle Exchange11 for Years 1-3 EPPPRJPQ3 5-Years Next-Business-Day Whole Unit Exchange11 for Years 1-5 EPPPRJPQE5
Operating Angle Other extended service plans may be available. What s Included
EB-PQ2216B projector, two cables (220 V 240 V power cable x 1 and 100 V 120 V power cable x 1), remote control with 2 batteries, cable cover, quick reference guide and warranty sheet Ordering Information EB-PQ2216B V11HB04820
Ultra Short Throw Lens (ELPLX02S) V12H004X0B, Lens White (ELPLX02WS) V12H004Y0B
Operating Angle Short Throw #1 Zoom Lens (ELPLU03S) V12H004UA3, #2 Zoom Lens (ELPLU04) V12H004U04
Operating Angle Wide Throw #2 Zoom Lens (ELPLW06) V12H004W06, #3 Zoom Lens (ELPLW08) V12H004W08
Operating Angle Middle Throw #2 Zoom Lens (ELPLM15) V12H004M0F, #3 Zoom Lens (ELPLM10) V12H004M0A, #4 Zoom Lens (ELPLM11) V12H004M0B
Operating Angle Long Throw Zoom Lens (ELPLL08) V12H004L08

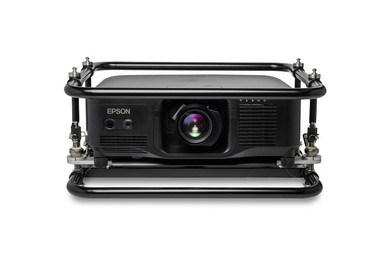

Operating Angle Rigging Frame (ELPMB59) V12H996A01

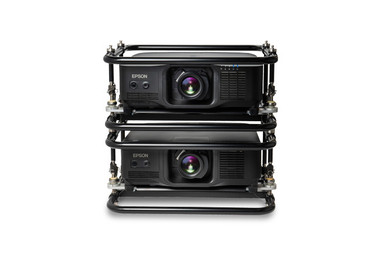

Operating Angle Stacking Frame (ELPMB84) V12H006AW0
Operating Angle Mounting Tilt Plate (ELPMB77) V12H006AP0
Operating Angle Wireless LAN Module (ELPAP11) V12H005A02
Operating Angle Projector Ceiling Mount (ELPMB67) V12HA54010
Operating Angle Fine Adjust Ceiling Mount (ELPMB68) V12H006AE0

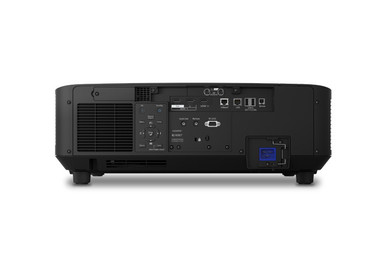

Operating Angle PixAlign Camera (ELPEC01) V12HA46010 Interfaces 12G-SDI In/Out
Operating Angle HDMI (HDCP 2.3) x 2/HDMI Out x 1 HDBaseT x 1
Variable Audio Out Mini Stereo x 1
Operating Angle USB Type-B x 1, Type-A x 2 (5 V, 2.0 A), Type-A for Wireless LAN (optional)
Operating Angle Serial RS-232c x 1 (9-pin) Remote Stereo Mini
Operating Angle Network RJ-45
SKU EB-PQ2220B
Brand Epson
MPN V11HB04820
GTIN 00010343987210, 010343987210
UPC 010343987210
