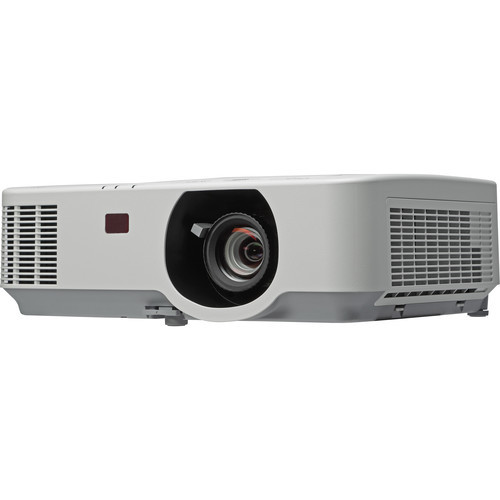

NEC NP-P474W WXGA 720p LCD Projector

Free Shipping
(No reviews yet) Write a Review
  • NEC NP-P474W WXGA 720p LCD Projector
  • NEC P474W - WXGA 720p LCD Projector
  • NEC NP-P474W WXGA 720p LCD Projector
  • NEC P474W - WXGA 720p LCD Projector
  • NEC NP-P474W WXGA 720p LCD Projector
  • NEC P474W - WXGA 720p LCD Projector
  • NEC NP-P474W WXGA 720p LCD Projector
  • NEC P474W - WXGA 720p LCD Projector


NEC NP-P474W Overview

Brighten up your presentations with the NEC NP-P474W 4700-Lumen WXGA LCD Projector. Whether in a boardroom or a classroom, 4700 lumens of brightness, combined with a 18,000:1 dynamic contrast ratio, helps provide a viewable image even in areas where you can't control the ambient light.

The NP-P474W offers a throw ratio of 1.2 to 2.1:1, with zoom capability for versatile installation options. Its connections include HDBaseT, VGA, composite video via RCA, and two HDMI, plus an RCA stereo and 1/8" input for audio. It also features 15-pin VGA video and 1/8" audio outputs. The projector has a 20W speaker built-in, and includes an RGB signal cable and a remote control.

Key Features

  • Brightness of 4700 Lumens
  • WXGA (1280 x 800) Native Resolution
  • 1.2 to 2.1:1 Throw Ratio
  • HDBaseT, VGA, RCA Composite, 2 x HDMI-In
  • VGA Output for Loop-Through
  • Analog Audio Input and Output
  • 20-Watt Speaker
  • Ethernet, USB, VGA, RS-232 Controllable
  • RGB Signal Cable & IR Remote Included

20W Speaker Built-In

A 20-Watt speaker provides volume without necessitating an external speaker setup.

Direct Power Off

Direct Power Off protects the lamp when the projector is accidentally unplugged or the power strip is switched off. It enables the fan to continue running until the lamp is properly cooled down, while internal sensors monitor lamp temperature and prevent the lamp from powering on.

Advanced AccuBlend

Advanced AccuBlend helps to ensure detailed images when non-native resolution sources are connected to the projector.

Multiple Computer Inputs

Having more than one computer input helps ensure quick switching between presentations.

Auto Power-On

Auto power-on turns the projector on as soon as it is plugged into a power outlet.

Dual HDMI Inputs with HDCP

Having two HDMI inputs helps ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers, and computers.


AutoSense is designed to intuitively sync the projector with most computer signals and features one-touch image optimization.

ECO Mode

ECO Mode is engineered to extend lamp life, lower audible noise, and reduces total cost of ownership.

Built-In Wall Color Correction

Preset settings provide for adaptive color tone correction to display properly on non-white surfaces.

Quick Startup and Quick Power-Off

Quick startup and power-off features allow you to begin presenting within 3 to 4 seconds and allows immediate power-off with no cooling required after shutdown to help ensure efficient energy usage.

Carbon Savings Meter

The carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.

Variable Audio-Out

Adjusts the volume of an external speaker system using the projector's remote control.

Cornerstone Correction

Allows for horizontal, vertical, and diagonal image correction for aligned images when the projector is set up at an angle to the screen.

Virtual Remote

The Virtual Remote feature is used over the VGA cable to control the projector directly from a computer without the need for additional control cables.

Crestron RoomView

Crestron RoomView compatibility provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.

Optional Wireless LAN

The wireless LAN module, available separately, allows you to transmit images from a computer wirelessly to the projector, eliminating the need for traditional cumbersome cables.

Additional Features

  • Manual keystone correction
  • USB Viewer
  • Closed captioning
  • Sleep timer

NEC NP-P474W Specs

Image Display

Display System 0.64" LCD
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Maximum: WUXGA - 1920 x 1200
Maximum Brightness 4700 Lumens
Aspect Ratio Native: 16:10
Contrast Ratio 18,000:1
Scan Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz


Focus Manual
Lens f/1.7 - 2.2 (f = 17.4 - 29 mm)
Lens Shift Vertical: 0 to 55%
Horizontal: ± 15%
Optical Zoom 1.7x
Throw Distance 2.6 - 44.3' / 0.79 - 13.5 m
Throw Ratio 1.2 to 2.1:1
Projection Size 30 - 300" / 76.20 - 762.00 cm


Keystone Correction Manual-Horizontal: ± 20°
Vertical: ± 30°
Supported HDR Input Formats None
Multi-Input Support (PIP/PBP) None
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes
Speaker Power 20W
Projection Tilt Option No

Input/Output Connectors

Inputs/Outputs 1 x VGA (DE-15/DB-15) Video Input
2 x HDMI (HDMI Type-A) Video Input
1 x HDBaseT (RJ45) Data Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 2RCA Audio Input
1 x RCA Video Input
1 x RCA Audio Output
1 x VGA (DE-15/DB-15) Video Output
1 x Mini DisplayPort Video Output
1 x USB Type-A Data
1 x USB Type-B Service
1 x RJ45 LAN
1 x DE-9/DB-9 Control
Wireless LAN / Wi-Fi None


Lamp Power 330 W
Expected Lamp Life Medium Brightness: 4000 Hours
Low Brightness: 8000 Hours
Fan Noise Medium Brightness: 37 dB
Low Brightness: 34 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 424 W
Low Brightness: 286 W
Standby Mode (Lamp Off): 2 W
Standby Mode (Lamp Off): 0.14 W
Dimensions (W x H x D) 16.5 x 13.0 x 5.6" / 419.1 x 330.2 x 142.2 mm
Weight 10.6 lb / 4.8 kg

Packaging Info

Package Weight 14 lb
Box Dimensions (LxWxH) 19.3 x 15.9 x 8.9"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
