Display System 0.59″ Micro Lens Array (MLA) LCD
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Maximum: UXGA
Maximum Brightness 3300 Lumens
Aspect Ratio Native: 16:10
Scan Horizontal: 15 to 100 kHz Vertical: 50 to 120 Hz
Lens f/1.8 (f = 4.78 mm)
Throw Distance 1.47 – 2.8′ / 44.806 – 85.344 cm
Throw Ratio 0.36:1
Projection Size 58 – 110″ / 147.32 – 279.40 cm
Keystone Correction Auto: 10 Manual: 10
Ceiling Mountable Yes
Rear Screen Projection Yes
Lamp Power 265 W
Expected Lamp Life Medium Brightness: 3000 Hours Low Brightness: 6000 Hours
Fan Noise Medium Brightness: 35 dB Low Brightness: 28 dB
Security Cable Lock Slot
Power Consumption Medium Brightness: 344 W Low Brightness: 233 W Standby Mode (Lamp Off): 8 W Low Brightness: 0.2 W
Dimensions (W x H x D) 16.9 x 4.4 x 23.3″ / 42.9 x 11.2 x 59.2 cm
Package Weight 19.2 lb
Box Dimensions (LxWxH) 23.1 x 19.3 x 10″
Brightness of 3300 Lumens WXGA (1280 x 800) Native Resolution
Brightness of 3300 Lumens HDMI, VGA, S-Video and Composite Inputs
Ultra short throw lens (0.36:1 throw ratio) helps eliminate shadows on the screen along with projected light in the presenter’s eyes created by traditional front projection systems Multiple Inputs/Outputs

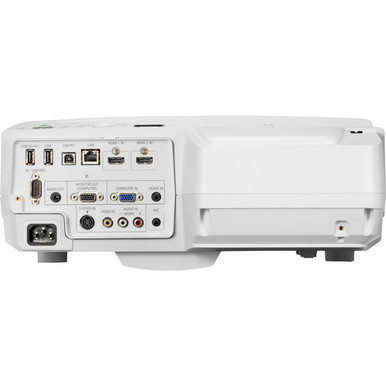

Comprehensive input/output panel, including dual HDMI, VGA, and a microphone input ECO Mode
Short Throw Projection ECO Mode technology helps extend lamp life and lowers power consumption Virtual Remote
Short Throw Projection Virtual Remote allows a presenter to control the projector from the computer desktop without using the physical remote control Remote Monitoring
Short Throw Projection Remote monitoring and control of projector over network saves IT employee time and reduces costs related to projector operation
Short Throw Projection Optional eBeam Interactive System
Optional eBeam interactive system allows for annotation and collaboration on a whiteboard locally or via web meetings Additional Features
Short Throw Projection Wireless LAN via separately available dongle, Image Utility NEC UM330W Specs Image Display Display System
Short Throw Projection USB Viewer 6000 hour filter life
Short Throw Projection Auto power on Closed captioning
Short Throw Projection Variable audio out Carbon savings meter Sleep timer Quick power-off
Built-in wall color correction Advanced AccuBlend AutoSense
Short Throw Projection Native Chip Resolution 1280 x 800 (WXGA) Supported Resolutions
Short Throw Projection Maximum UXGA Maximum Brightness 3300 Lumens
Aspect Ratio Native 16:10 Scan
Aspect Ratio Horizontal 15 to 100 kHz
Aspect Ratio Vertical 50 to 120 Hz Lens f/1.8 (f = 4.78 mm)
Throw Distance Throw Ratio 0.36:1
Projection Size 58 110″ / 147.32 – 279.40 cm Keystone Correction
Projection Size Auto 10
Projection Size Manual 10 Ceiling Mountable Yes Rear Screen Projection Yes General Lamp Power 265 W Expected Lamp Life
Projection Size Medium Brightness 3000 Hours
Projection Size Low Brightness 6000 Hours
Fan Noise Medium Brightness 35 dB
Fan Noise Low Brightness 28 dB Security Cable Lock Slot
Power Consumption Medium Brightness 344 W
Power Consumption Low Brightness 233 W, 0.2 W
Standby Mode (Lamp Off) 8 W
Power Consumption Dimensions (W x H x D) 16.9 x 4.4 x 23.3″ / 42.9 x 11.2 x 59.2 cm Packaging Info Package Weight 19.2 lb
Power Consumption Box Dimensions (LxWxH) 23.1 x 19.3 x 10″
SKU NP-UM330W
Brand NEC
MPN NP-UM330W
GTIN 00805736044188, 805736044188
UPC 805736044188
