The NEC NP-ME301X is a professional-grade LCD projector built for educational and business environments requiring consistent image quality and reliable operation. Offering 3000 lumens of brightness and a native XGA resolution (1024 x 768), it ensures clear visuals in classrooms and conference spaces with ambient light. The 3LCD technology enables accurate color reproduction and eliminates rainbow effects. The projector includes comprehensive connectivity options, including HDMI, VGA, USB, and RJ-45 for network control and monitoring. With up to 9,000 hours of lamp life in ECO mode, the ME301X supports long-term use with minimal maintenance, while its built-in 20W speaker provides adequate audio output for small to medium-sized rooms.

Product Features

• Native XGA (1024 x 768) resolution with 3LCD technology

• 3000 lumens brightness for well-lit environments

• HDMI, VGA, USB, and LAN inputs for flexible connectivity

• Integrated 20W speaker for standalone audio

• Up to 9,000-hour lamp life in ECO mode

General Characteristics

• Display Technology: 3LCD

• Brightness: 3000 ANSI lumens

• Native Resolution: XGA 1024 x 768

• Contrast Ratio: 4,000:1

• Aspect Ratio: 4:3

• Lamp Life: Up to 9,000 hours (ECO mode)

• Keystone Correction: ±30° vertical

• Audio: Built-in 20W speaker

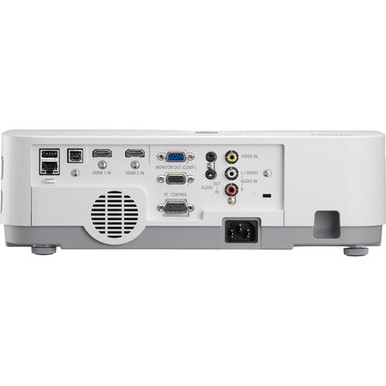

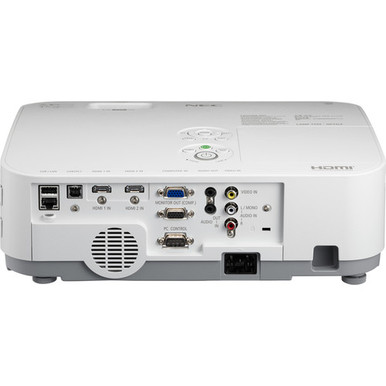

• Input Ports: HDMI, 2x VGA, USB Type-A, USB Type-B, RJ-45 (LAN)

• Control: RS-232, LAN

• Weight: Approx. 6.6 lbs

• Dimensions: 13.6″ x 10.2″ x 4.1″

Technical Specifications

• Projection System: 3LCD

• Max Screen Size: Up to 300 inches

• Throw Ratio: 1.5 – 1.8:1

• Supported Resolutions: Up to UXGA (1600 x 1200)

• Operating Temperature: 41°F – 104°F (5°C – 40°C)

• Fan Noise: 37 dB (Normal), 29 dB (ECO)

• Power Supply: 100–240V AC, 50/60Hz

• Network Control Protocols: Crestron RoomView, AMX, PJ Link

Highlights

• Delivers 3000 lumens of brightness combined with XGA resolution, providing clear, detailed images suitable for instructional or corporate presentations in moderately lit rooms.

• Uses 3LCD technology for consistent and natural color reproduction without the rainbow artifacts seen in some single-chip projection systems, enhancing viewing comfort.

• Supports modern and legacy devices via HDMI, dual VGA, USB-A, and LAN inputs, allowing seamless integration into existing AV infrastructures across classrooms or offices.

• Built-in 20W speaker provides sufficient audio output for most small to medium-sized venues without needing additional sound equipment, streamlining portable setups.

• Lamp life of up to 9,000 hours in ECO mode minimizes downtime and reduces long-term operational costs by extending the intervals between lamp replacements.
