Description

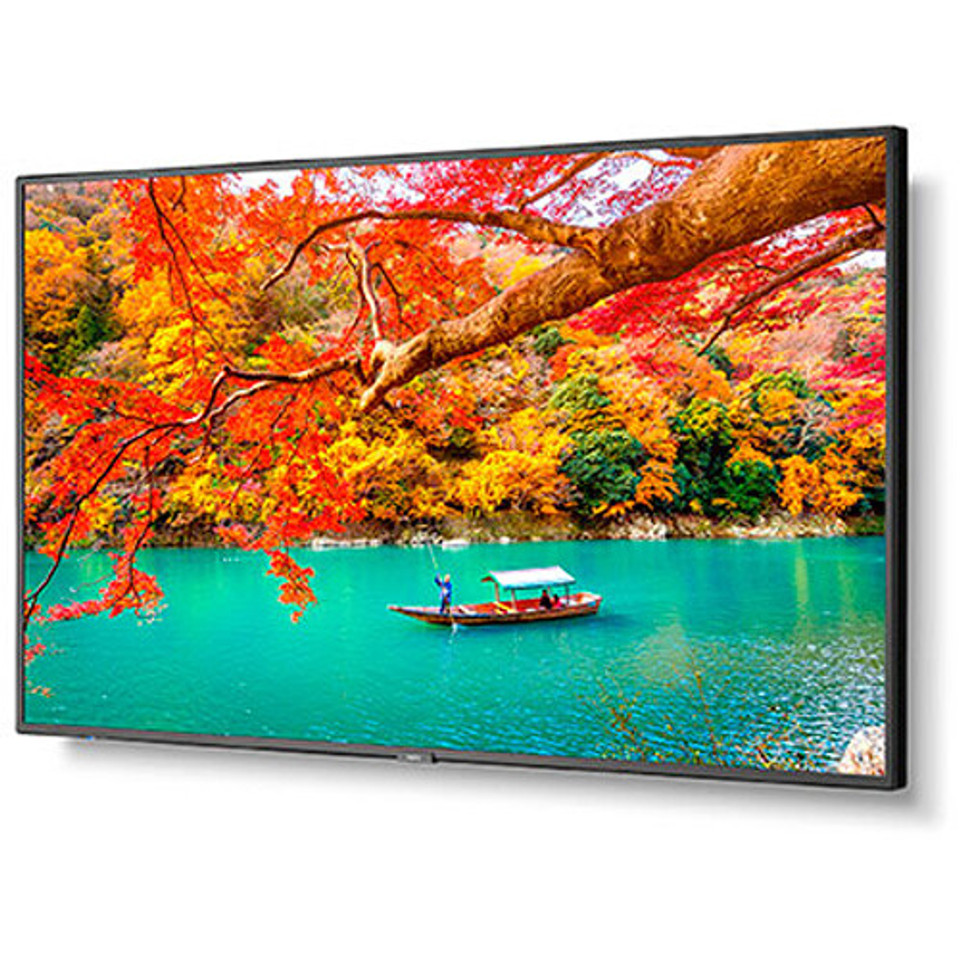

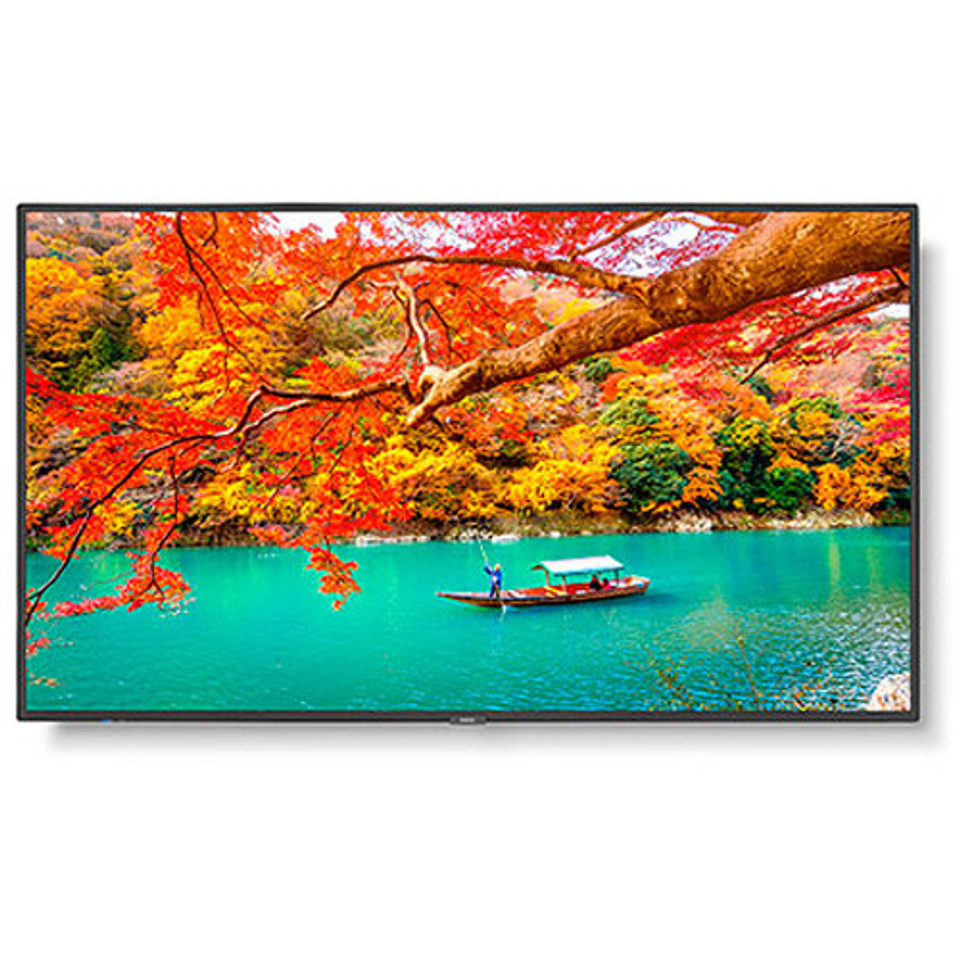

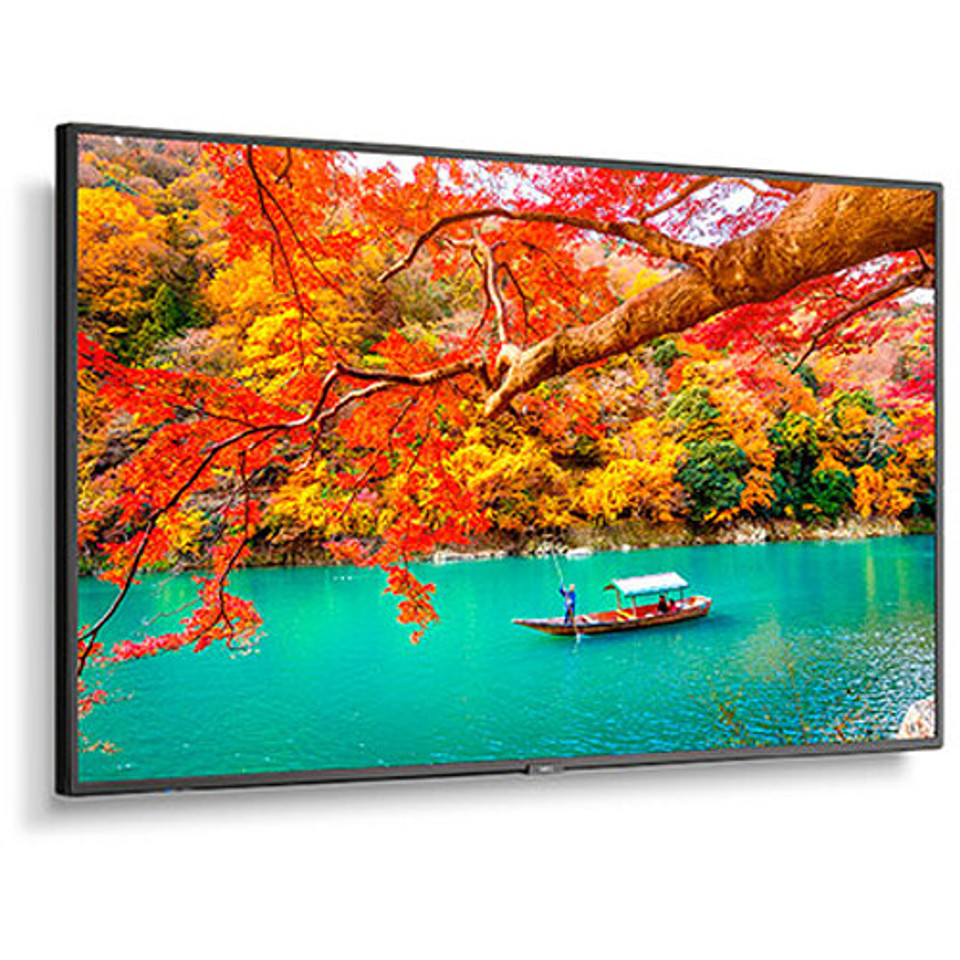

With the high-end panel quality of the complete professional NEC M Series big format screens, you can create pixel-perfect pictures. It provides clients with a digital signage display portfolio without all of the expenditures by concentrating on customer demands while still providing professional dependability. This display is capable of supporting both landscape and portrait orientations. The new series includes a complete metal mechanical chassis, which allows for a more durable construction that is required for commercial applications while yet preserving beautiful aesthetics.

Bezel Width (Top): 0.43"
Bezel Width (Bottom): 0.61"
Bezel Width (Left): 0.40"
Bezel Width (Right): 0.43"
Processor Manufacturer: Intel
Number of Screens: 1
Screen Size: 43"
Display Screen Type: LCD
High Dynamic Range (HDR): Yes
High Dynamic Range (HDR) Type: HDR10
High Dynamic Range (HDR) Type: HLG
High Dynamic Range (HDR) Type: PQ
Display Resolution: 3840 x 2160
Backlight Technology: Edge LED
Scan Format: 2160p
Brightness: 500 Nit
Ethernet: Yes
USB: Yes
HDMI: Yes

Specifications:

Display

Panel Technology	U-IPS	Viewable Image Size	43 "
Aspect Ratio	16:9	Native Resolution	3840x2160
Supported Resolutions	DIsplayPort: V1.4 - Up to 7680 x 4320 (30Hz - compressed image)HDMI: V2.0 - Up to 4096 x 2160 (60Hz)	Pixel Pitch	0.25 mm
Pixels Per Inch	102 @ native resolution	Backlight Type	LED Edge-lit
Brightness (typical)	500 cd/m²	Contrast Ratio (typical)	≥8,000:1 (Out of the box conditions, local dimming ON)
Viewing Angle (typical)	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10	Response Time (Gray to Gray)	8 ms
Refresh Rate	60Hz	Active Screen Area	47.2 x 26.8 in. / 1209.6 x 680.4mm

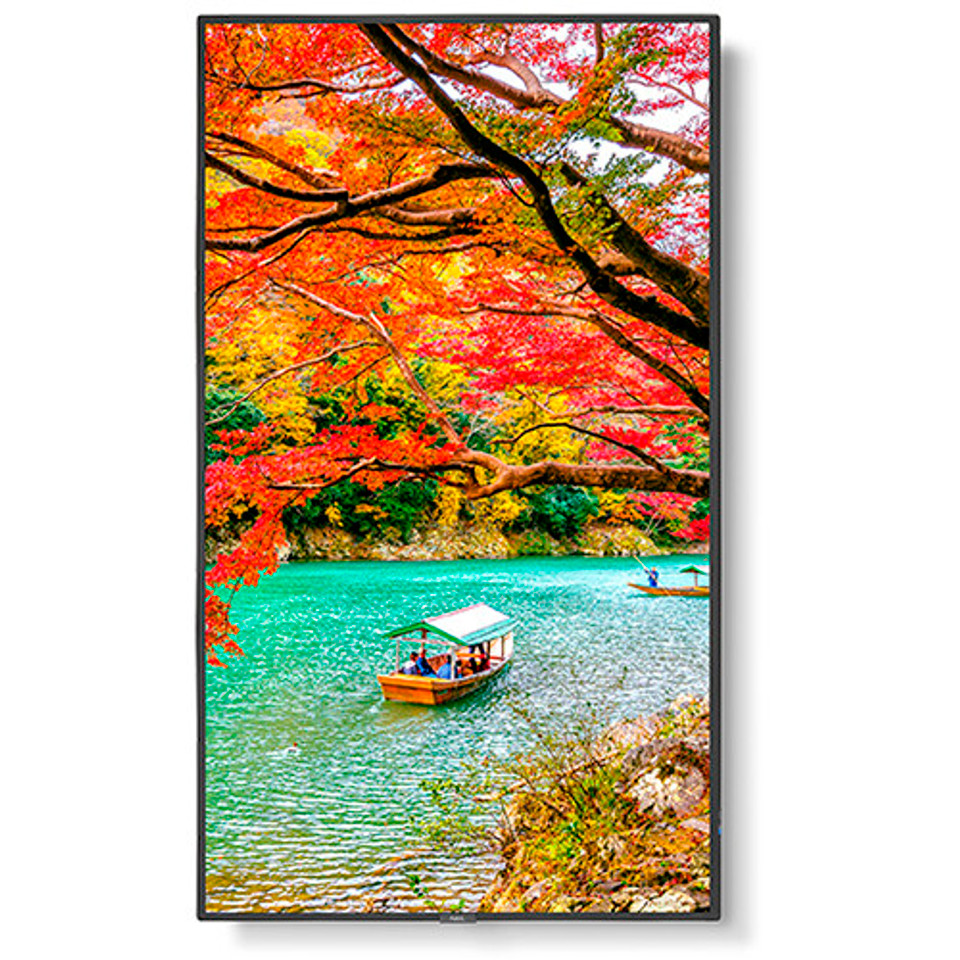

Orientation	Landscape/Portrait	Dimming Capability	Local Dimming Capable
Displayable Colors	More than 1.08 billion (10-bit)	Color Temperature (Max) (°K)	15000K
Color Temperature (Min) (°K)	3000K	Gamma (Typical)	Custom adjustment from 0.5 - 4.0 (0.1 increments) through SpectraView Engine, sRGB, L Star, Rec. 1886, HDR-Hybrid Log, HDR-ST2084 (PQ), DICOM, Programmable

Synchronization Range

Horizontal (Analog/Digital)

Digital: 15.0 - 135.0kHz (HDMI), 22.0 - 134.0 (DisplayPort)

Vertical

Digital: 23.0 - 76.0Hz

Input Signal

Video

Digital TMDS / DisplayPort

Signal Compatibility/Connectivity

PC Signal Compatibility

Yes

Macintosh Signal Compatibility

Yes

Video

Digital TMDS / DisplayPort

External Control

LAN In/Out and RS232 In - Full external control capabilities

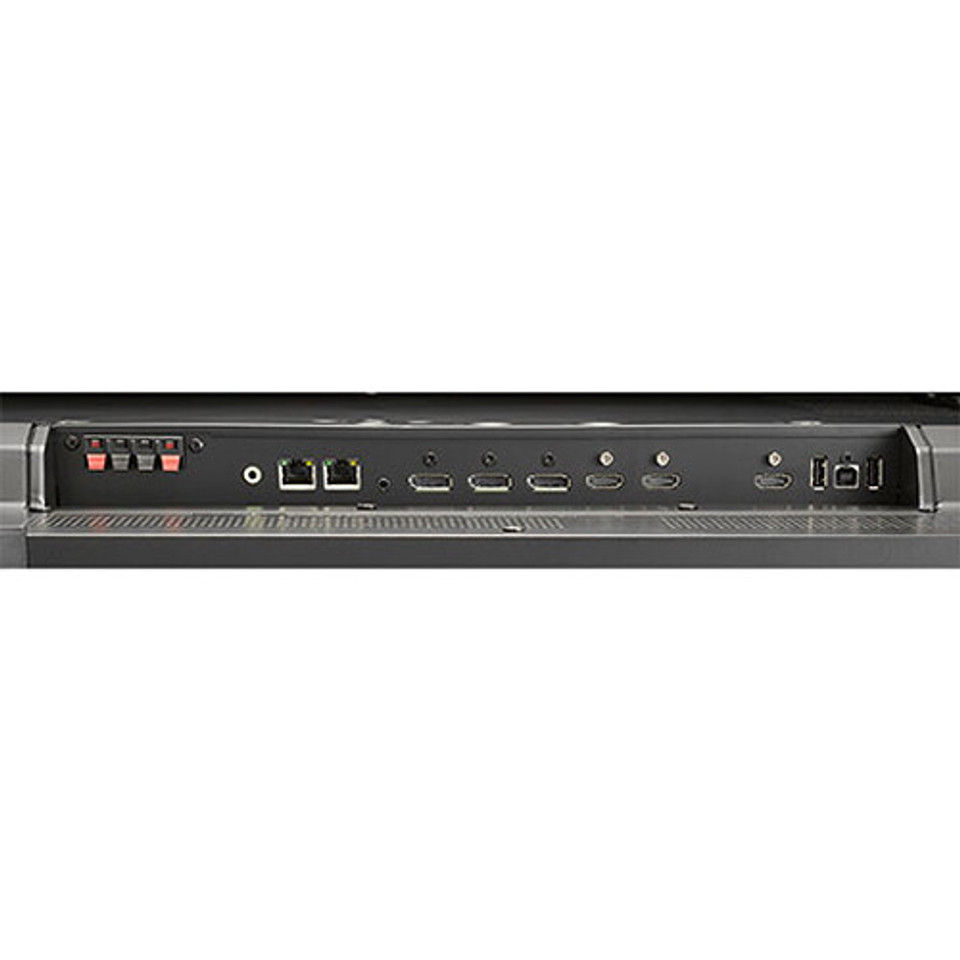

Input Terminals

Digital:

HDMI (2.0 x 2 with HDCP), DisplayPort (1.4 x 2 with HDCP)

Audio:

DisplayPort Audio x2, HDMI Audio x2

External Control:

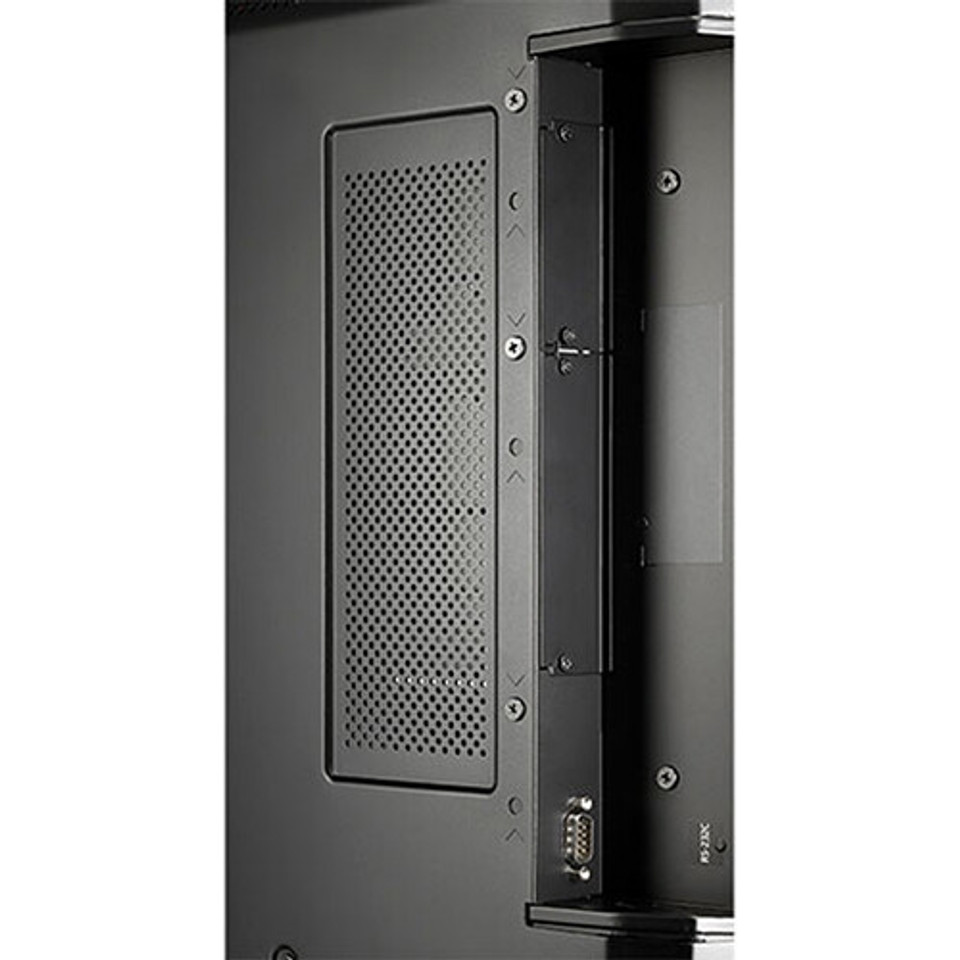

RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)

Data:

USB-A (Hub/0.5A), USB-B (Control/Software), USB-A (Service/2A)

Output Terminals

Digital:

HDMI (2.0), DisplayPort (1.4)

Audio:

3.5mm Mini-Jack

External Control:

LAN (100Mb)

Power Consumption (typical)

On	70W	ECO Mode Standby	<0.5W
Network Standby	0.5W	Power Consumption (max)	85W (Max Brightness) / 235W (Brightness Max, Volume Max)
Power Savings Mode	2 W	Power Requirements	2.6A @ 100V, 1.1A @ 240V

Physical Specifications

Bezel Width (Left/Right, Top/Bottom)

0.4 in./0.43 in., 0.43 in./0.61 in. : 11 mm/11 mm, 11 mm/15.6 mm

Dimensions (WxHxD)

Without stand:

38.1 x 22.1 x 2.6 in. / 968.2 x 561 x 67.1 mm

Shipping:

44.1 x 27.6 x 8.0 in. / 1120.0 x 700.0 x 203.0mm

Weight

Net Weight (without stand):

41.9 lbs. / 19 kg.

Shipping:

52.9lbs. / 24.0kg

VESA Hole Configuration

300 x 300mm (M6 x 4-hole)

Environmental Conditions

Operating Humidity	20 - 80%	Operating Altitude	9843 ft. / 3000m
Storage Temperature	-4-140°F / -20-60°C	Storage Humidity	10-80%
Storage Altitude	40,000 ft. / 12,192m

Environmental Compliance

ENERGYSTAR

Energy Star 8.0

Limited Warranty (parts & labor)

3 years Advanced Exchange

Additional Features

AMX Support
Automated Email Alert Function
ARC Support through HDMI
Crestron Roomview Support (FW Update)
Display Browser Control
Display Wall Calibrator Compatible
HDR Support (PQ, HLG, HDR10)

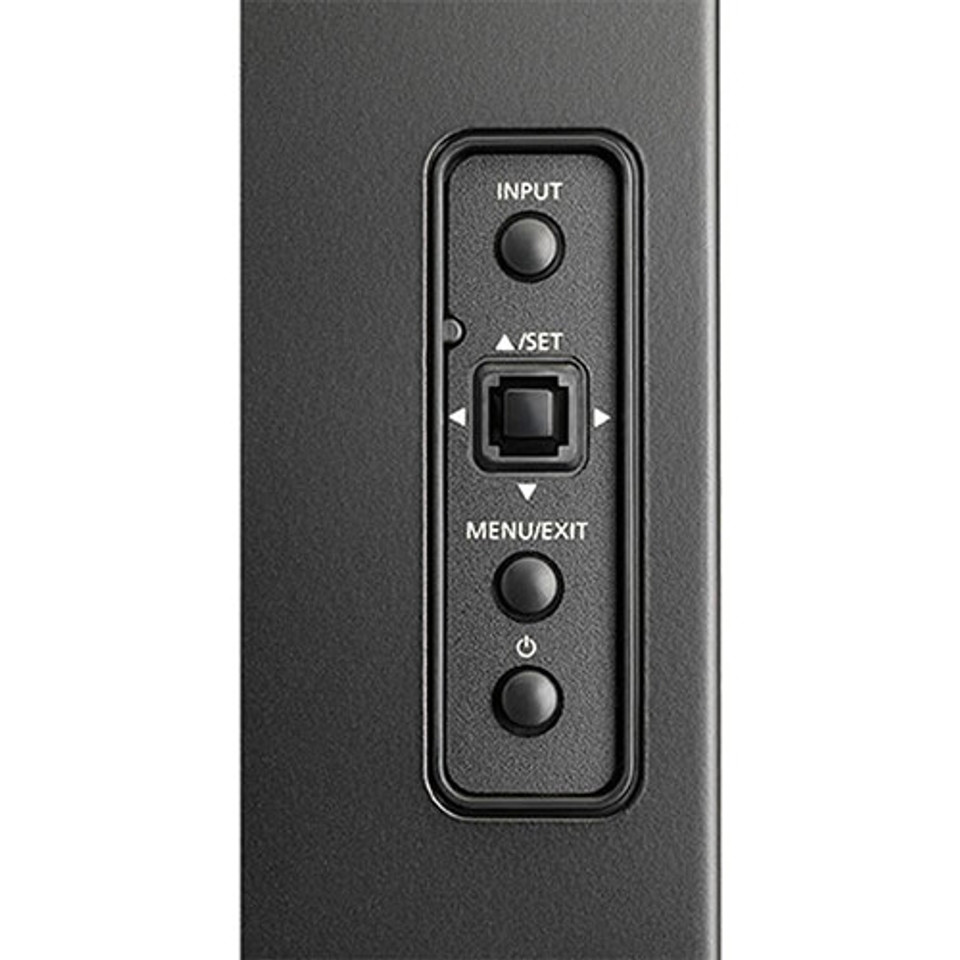

Key Guide
NaViSet Administrator 2 Compatible
OSD Rotation for Portrait Orientation
PJ Link Support
Power USB Port (5V/2A)

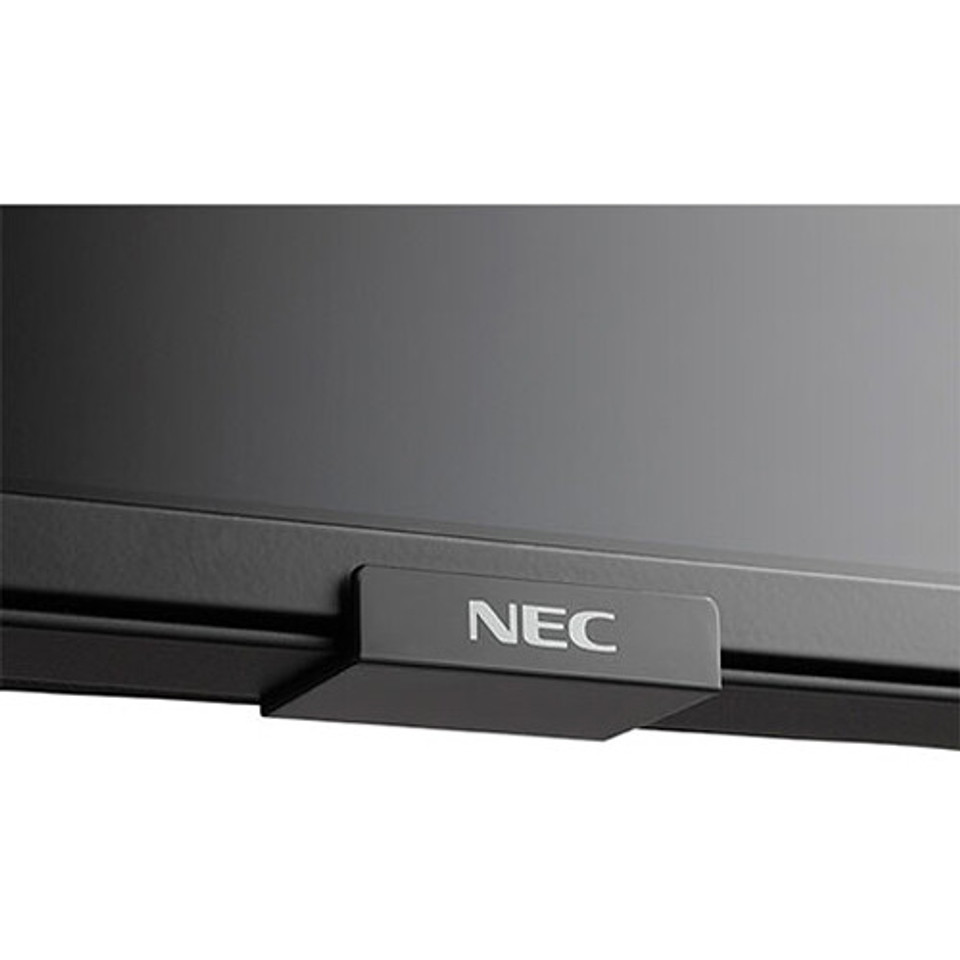

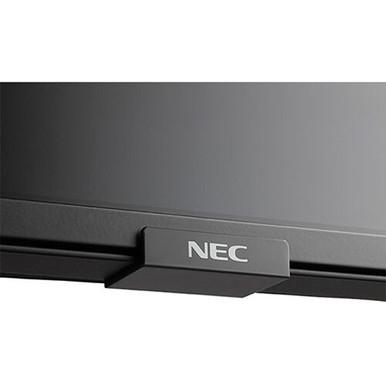

Removeable Logo Ornament
Real Time Clock
Local Dimming
TileMatrix
Cisco Webex Compatible
SNMP
Consumer Electronics Control (CEC)
Pivot Feature through G-Sensor
Dual Daisy Chain Capabilities
Multi Picture Mode (Up to 4 Simultaneous Images)
SpectraView Engine Technology
Wide Color Gamut Panel
Integrated Temperature Sensors and Active Cooling Fans
Full Input Detect Functionality
Programmable Gamma
Energy Star 8.0
Color Vision Emulation
6-axis Color Trim
Uniformity Adjustment
Scheduler Function
Off Timer
Vacation Switch

Accessories

Optional

Wall Mount (WMK-3298T)
IR/Human Sensor Accessory (KT-RC3)
Table Top Stand (ST-43M)

Cooling Method

Multiple integrated temperature sensors and fans for active cooling and real time temperature measuring to ensure that the display stays cool for extended runtimes
