NEC C860Q Overview

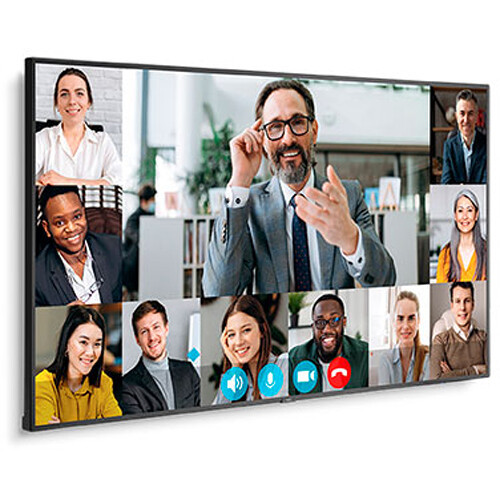

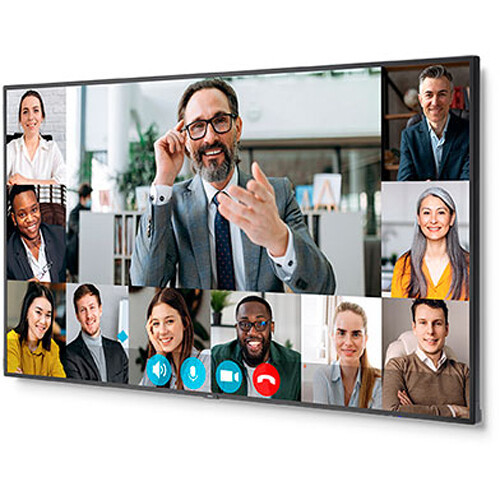

NEC MultiSync has an 86-inch LCD public display monitor that offers clear, detailed imagery for an unobtrusive digital messaging experience. Along with sleek and stylish design, it also allows flexibility to choose between landscape and portrait orientation. It also has an integrated ATSC/NTSC tuner. You can enjoy a hassle-free 24/7 operation with its premium-grade panel, thermal protection, internal temperature sensors, and self-diagnostics. Its Input Detect feature automatically switches to the secondary or tertiary source when the primary source fails.
- 4K UHD Resolution
- 16:9 Aspect Ratio
- Integrated ATSC/NTSC tuner
- Integrated Ambient Light Sensor
- Input Detect Function

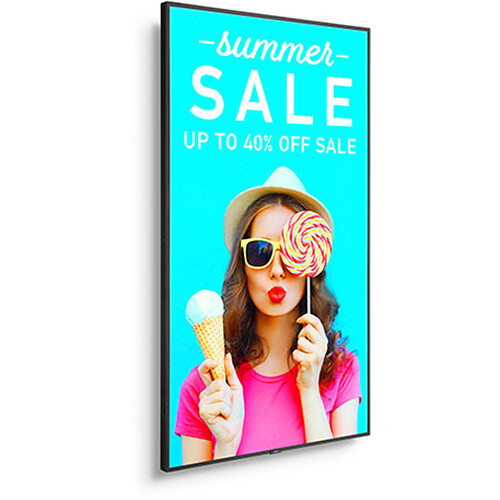

- Flexible Orientation Option
- Anti-Glare Screen
- Full 3 Years Commercial Warranty
Display
| Panel Technology | S-IPS | Viewable Image Size | 86 " |
| Aspect Ratio | 16:9 | Native Resolution | 3840x2160 |
| Supported Resolutions | DisplayPort: Up to 4096 x 2160 (60Hz), HDCP 1.3/2.2
HDMI: Up to 4096 x 2160 (60Hz), HDCP 1.4/2.2 | Pixel Pitch | 0.49 mm |
| Pixels Per Inch | 51 PPI | Brightness (maximum) | 350 cd/m2 |
| Contrast Ratio (typical) | 1200:1, 10,000:1 Dynamic | Response Time (typical) | 8 ms |
| Orientation | Landscape/Portrait | Displayable Colors | 1.07 billion (dithered) |
Synchronization Range
| Horizontal (Analog/Digital) | Digital: 15.0 - 136.0kHz | Vertical | Digital: 23.0Hz - 76.0Hz |
Signal Compatibility/Connectivity
| PC Signal Compatibility | Yes | Macintosh Signal Compatibility | Yes |

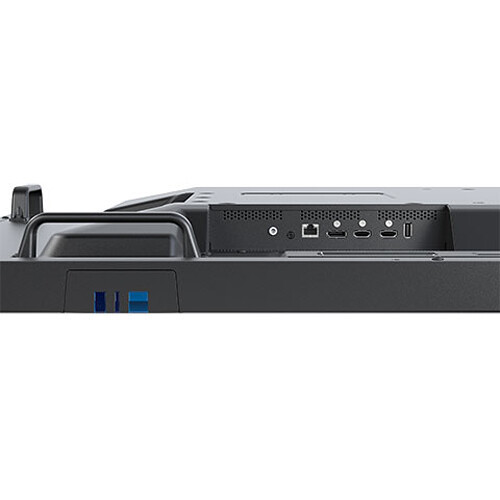

Input Terminals Digital: HDMI (2.0 x 2 with HDCP 2.2), DisplayPort (1.2 with HDCP) Audio: DisplayPort Audio x1, HDMI Audio x2 External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) Data: USB 2.0 (Media Player, 5V/2A Power) | Output Terminals |
Power Consumption (typical)
| On | 230W | ECO Mode Standby | 0.5W |
| Network Standby | 2W | Power Consumption (max) | 300W (Brightness Max) / 425W (Volume/Brightness Max, OPS Active) |
| Power Savings Mode | 0.5W | Input Current | 5.0A @ 100V
2.1A @ 240V |
| Power Requirements | 100-240V AC, 50/60 Hz | |
Physical Specifications

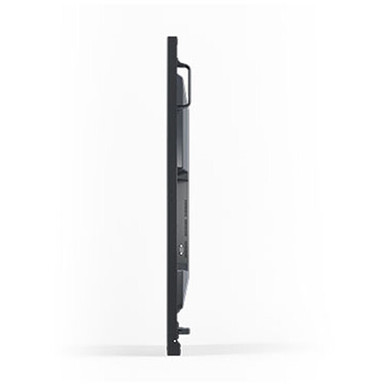

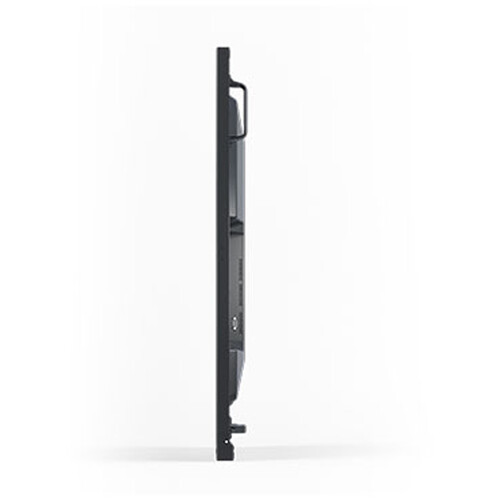

| Bezel Width (Left/Right, Top/Bottom) | 0.6 in./0.6 in., 0.6 in./0.6 in. : 15.3 mm/15.3 mm, 15.3 mm/15.3 mm | Dimensions (WxHxD) With stand: 1928.2 x 1136.4 x 606.0mm / 75.91 x 44.74 x 23.9 in. Without stand: 75.91 x 43.28 x 2.93 in. / 1928.2 x 1099.2 x 74.3 mm Shipping: 2157.0 x 1290.0 x 320.0mm / 84.92 x 50.79 x 12.60 in. |
Weight Net Weight (with stand): 137.6 lbs. / 62.41kg Net Weight (without stand): 127.4 lbs. / 57.79 kg. Shipping: 161.8 lbs. / 73.4kg | |
Environmental Conditions
| Operating Temperature | 32-104°F / 0-40°C | Operating Humidity | 20-80% |
| Operating Altitude | 9843 ft. / 3000m | Storage Temperature | -4-140°F / -20-60°C |
| Storage Humidity | 10-90% | Storage Altitude | 40,000 ft. / 12,192m |
Limited Warranty (parts & labor)
| 3 Years Advanced Replacement | |
Additional Features
- AMX Support
- Automated Email Alert Function
- CEC Support through HDMI
- Crestron Connected Support
- Display Browser Control
- Display Wall Calibrator Compatible
- HDR Compatible
- Key Guide
- NaViSet Administrator 2 Compatible
- OSD Rotation for Portrait Orientation
- PJ Link Support
- Power USB Port (5V/2A)
- Integrated ATSC/NTSC Tuner in OPS Slot
- Removeable Logo Ornament
- Real Time Clock
- Local Dimming
- TileMatrix
- SNMP
- Consumer Electronics Control (CEC)
- Integrated USB Media Player
- Integrated Temperature sensors
- Integrated Cooling Fans
- Full Input Detect Functionality
- Integrated Ambient Light Sensor
- Programmable Gamma
- Scheduler Function
- Off Timer
- Vacation Switch
| |
Optical
| Display Technology | LCD w/ LED backlight | |
Accessories
| Optional | - Table Top Stand (ST-801))
- Tilt Wall Mount (WMK-3298T)
- IR/Human Sensor (KT-RC3))
| |
