Key Features

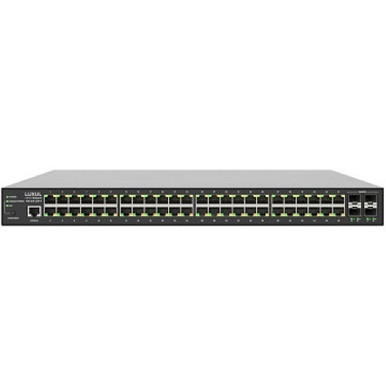

The SW-615-48P-F is a 48 port PoE+ front-facing single space rackmount 1Gb switch with 4 SFP+ 10Gb ports (aggregable up to 40Gbps) with a total PoE power budget of 740W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch. This L2/L3 switch with 176Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch Integrated for support of remote monitoring and management. ACL ingress and egress filtering.
SPECIFICATIONS
PROTOCOLS AND STANDARDS
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af/ at,
IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1ab, IEEE 802.1d,
IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE
802.1X
FORWARDING CAPACITY 103.9 Mpps (64 byte packets)
SWITCHING CAPACITY 176Gbps
MAC TABLE Up to 32K (32768) MAC addresses
JUMBO FRAMES Frame sizes up to 10240 Bytes
INTERFACE OPTIONS RJ45: 10BASE-T, 100BASE-T, 1000BASE-T
SFP+: up to 10Gbps
PoE MONITORING Auto-Recovery, Power Scheduling, PoE stays active with soft reboot
VLAN 802.1Q max 4094 VIDs & VLAN Trunking
Supports 1 Management VLAN
SURGE PROTECTION RJ-45 port surge protection tested to 6KV per EN61000-4-5
QUALITY OF SERVICE (QOS)
8 Hardware Queues
Queue Scheduling: Strict Priority and Weighted Round Robin (WRR) VLAN priority based
Layer 2 CoS QoS
Port based Layer 3 DSCP QoS
Port based bandwidth control
ACL Ingress and Egress Filtering
NETWORK DATA TRANSFER RATE
Ethernet: 10Mbps (Half-duplex), 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex), 200Mbps (Full-duplex)
Gigabit Ethernet: 1000Mbps (Half-duplex), 2000Mbps (Full-duplex)
SFP+: 10Gbps
MULTICAST SUPPORT
IGMP Snooping, Querier, Per Port Unregistered Flooding, Snooping and Querier available
on each VLAN, Port statstics allow users to
troubleshoot IGMP, ACL Egress Filtering of Multicast Traffic
LED Per Unit: System, Link/Act or PoE status
Per Port: Link/Activity and POE
PORT COUNT 48 PoE/PoE+, 4 SFP+ 10Gb ports
POWER BUDGET 740W, Configurable as statically assigned or dynamically allocated
Up to 30W per port
MAX POWER CONSUMPTION 885W @ 100VAC, 857W @ 240VAC
POWER SUPPLY Internal Switched Power, AC 100-240V, 50-60Hz input
OPERATING TEMPERATURE 32 F to 104 F (0 C to 40 C)
OPERATING HUMIDITY 10% to 90% (Non-condensing)
DIMENSIONS LxWxH IN. (MM) 17.4”x14.8”x1.75” (442 x 375 x 44mm)
WEIGHT LBS (KG) 12.1 (5.5)
CERTIFICATIONS FCC Part 15 Class A, IC, CE-EMC, CE-LVD, CB(IEC 62368-1), RCM,
VCCI, RoHS, UL, cUL, TAA, NDAA, UKCA
No approved reviews yet for this product.
No approved reviews are available yet for this product.
Checking whether your account is eligible to review this product...
Product Overview
The SW-615-48P-F is a 48 port PoE+ front-facing single space rackmount 1Gb switch with 4 SFP+ 10Gb ports (aggregable up to 40Gbps) with a total PoE power budget of 740W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch.
