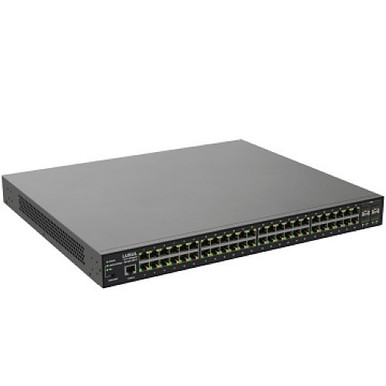

Designed to support AV-over-IP (AVoIP) applications, the SW-515- 48P-F includes 48 1-Gigabit PoE+ Ethernet ports and four 1-Gigabit SFP expansion ports. Two or more SFP ports can be aggregated for a connection speed of up to 4 Gb. The 48 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 740W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in multi-switch AV-over-IP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously.

FEATURES

CONFIGURATION
• Refreshed, simplified user interface
• Supports inbound and outbound (ingress and egress) ACL filtering
• Layer 2+ and Layer 3 static routing
• Multicast/IGMP snooping and querying feature
• Per port unregistered flooding
• 104Gbps switching capacity
• Dante and AES67 compatibility
• AV-over-IP compatible
• Easy port aggregation: 1 Gbps SFP ports are aggregable up to 4 Gbps
• 802.1Q VLAN and QoS support including DCSP

POWER
• 740W total power budget
• All Ethernet RJ-45 ports are PoE+ powered (IEEE 802.3at)
• PoE Monitoring: Auto-Recovery and Power Scheduling
• PoE stays active with soft reboot (when configured)
• Dynamic PoE allocation

INSTALLATION
• Standard 19-inch rack mount
• Front-facing ports with status light LEDs
• Low noise, variable speed fans
• Integrated port activity LEDs for easier diagnostics
• Luxul ProWatch support
• 3-year warranty
• Free lifetime phone support

SPECIFICATIONS
