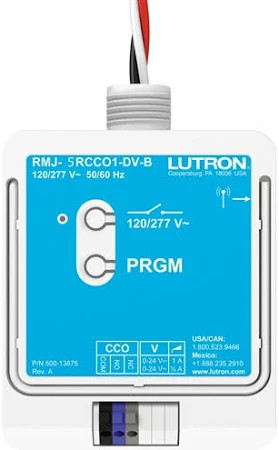

Model # RMJ-5RCCO1-DV-B
Operating voltage: 120/277 V~ 50 / 60 Hz
System Communication Operates using Clear Connect RF Technology for reliable wireless communication; refer to model number chart on page 1 for frequency band details RF range is 30 ft (10 m)
Environment Ambient operating temperature: 32 F to 131 F (0 C to 55 C) 0% to 90% humidity, non-condensing For indoor use only
Load Types Maximum load: 5 A general purpose. No minimum load requirements. Load types include (but are not limited to): Incandescent MLV ELV Resistive Inductive Magnetic fluorescent Electronic fluorescent
Key Design Features LED status indicator shows current load status and provides programming feedback Power failure memory: If power is interrupted, connected loads will return to the previous level prior to interruption Daylighting can be overridden by pressing the ON button on any associated Pico Daylighting will be re-enabled after 2 hours or after the area becomes unoccupied
Ambient operating temperature 32 F to 131 F (0 C to 55 C), 32 F to 131 F (0 C to 55 C) 0% to 90% humidity, non-condensing For indoor use only Load Types
Maximum load 5 A general purpose. No minimum load requirements.
Load types include (but are not limited to) Incandescent MLV ELV Resistive Inductive Magnetic fluorescent Electronic fluorescent, Incandescent MLV ELV Resistive Inductive Magnetic fluorescent Electronic fluorescent Key Design Features
Power failure memory If power is interrupted, connected loads will return to the previous level prior to interruption
Technical Spec Capable of switching 5 A of general-purpose loads
Optional low-voltage dry contact closure output provides integration to building management systems, HVAC, VAV, etc.
Technical Spec Various operating voltages available refer to model number chart below for details on voltage requirements
Technical Spec Receives wireless inputs from up to nine Pico controls, six Radio Powr Savr occupancy/vacancy sensors, and one Radio Powr Savr daylight sensor
Technical Spec Utilizes Lutron Clear Connect RF Technology refer to model number chart below for frequency band data
Technical Spec Mounts to a junction box through a standard half-inch (NPT trade size) knockout
Technical Spec Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22(C)(3)
Technical Spec Model # RMJ-5RCCO1-DV-B
Technical Spec Operating voltage 120/277 V~ 50 / 60 Hz
System Communication Operates using Clear Connect RF Technology for reliable wireless communication; refer to model number chart on page 1 for frequency band details
System Communication RF range is 30 ft (10 m) Environment
System Communication Maximum load 5 A general purpose. No minimum load requirements.
System Communication LED status indicator shows current load status and provides programming feedback
System Communication Daylighting can be overridden by pressing the ON button on any associated Pico Daylighting will be re-enabled after 2 hours or after the area becomes unoccupied
SKU RMJS-5RCCO1-DV-B
Brand Lutron
MPN RMJS-5RCCO1-DV-B
GTIN 00784276150491, 784276150491
UPC 784276150491
