Projection System DLP
Native Resolution 4K UHD (3840 x 2160)
Brightness (ANSI Lumen) 5000
Contrast Ratio 3,000,000:1
Uniformity (JBMMA 9 Point) 85%
Focus (Auto / Manual) Manual
Zoom 1.2x
Screen Size 40″ ~ 300″
Standard (lens to wall) Wide 2017 /Tele 2454 (100″)
Throw Ratio 0.94 – 1.14
Lens Shift Yes ( Horiz 20% / Vert 50% )
Type Laser (LD + P/W)
Life Hours 20,000 Hrs
OSD Languages English / Korean
Aspect Ratio Control 16:9/Original/4:3/Vertical Zoom/All-Direction Zoom
Output 10W (5W+5W)
Net Size (mm) (W x D x H) 370x290x155.7, 370x290x143.7 (Without Leg)
Net Weight (kg or g) 9.7Kg
Stand-by Power 0.5W
Power Supply 100V 240V @ 50~60 Hz (PSU Built-in)
Operation Temperature 0 ~ 40℃
Digital(HDMI) Up to 4K (4096×2160) (60Hz, 50Hz, 24Hz)
Audio out Yes
RS-232C Yes
IP control Yes
RJ45 1
HDMI 2
HDBaseT Yes
USB Type-A 2 (USB2.0)
Platform (OS, UI) webOS 4.5
Internet Browser Yes
Wireless Contents Share (with Android, iOS) Yes (Android Only)
Contents Sharing (with DLNA supporting device) Yes
Bluetooth Sound out Yes
Bluetooth AV Sync Control Yes
LG Sound Sync(with Sound Bar) Yes
HDMI ARC(Audio Return Channel) Yes
Plug & Play(RGB/DVI/HDMI Auto Source Detection) Yes
USB Host (Movie, Music, Photo) Yes
File(Office) Viewer Yes
Setting Guide Yes (Bean Bird)
HID (Keyboard/Mouse/GamePad Connection Thru USB) Yes, Yes HDR HDR10
HDR HDR10
HDR Effect Yes
DICOM Yes
TruMotion Yes
Digital Keystone Correction Warping
Image Flip Yes (Horizontal/Vertical)
Black Level Control Yes
Noise Reduction Yes
Quick(Instant) Power on/off Yes (on 12 Sec off 2 Sec)
Self Diagnosis Yes
Cabinet Color Top/Bottom – White Front/Rear – Black
Local Key Joystick
Kensington Lock Yes
Leg-Stand Yes (4 Leg)
Ceiling mount hole (for bracket) Yes
Contrast Ratio 3,000,000 1
Aspect Ratio Control 16 9/Original/4:3/Vertical Zoom/All-Direction Zoom
NATIVE RESOLUTION BRIGHTNESS(ANSI LUMEN)
NATIVE RESOLUTION Brightness (ANSI Lumen) 5000
CONTRAST RATIO Contrast Ratio 3,000,000:1 NOISE Energy Saving Min. (Bright) 29 dB(A) Energy Saving Med. 27 dB(A) Energy Saving Max. (Eco) 26 dB(A) UNIFORMITY Uniformity (JBMMA 9 Point) 85%
PROJECTION LENS Focus (Auto / Manual) Manual Zoom 1.2x
PROJECTION LENS PROJECTION IMAGE Screen Size 40″ ~ 300″
PROJECTION LENS Standard (lens to wall) Wide 2017 /Tele 2454 (100″)
LENS SHIFT Lens Shift Yes ( Horiz 20% / Vert 50% ) LIGHT SOURCE Type Laser (LD + P/W)
LENS SHIFT Life Hours 20,000 Hrs LANGUAGE OSD Languages English / Korean
16:9/Original/4:3/Vertical Zoom/All-Direction Zoom SOUND Output 10W (5W+5W) SIZE
Aspect Ratio Control Net Size (mm) (W x D x H) 370x290x155.7, 370x290x143.7 (Without Leg) WEIGHT
Aspect Ratio Control Net Weight (kg or g) 9.7Kg POWER
Aspect Ratio Control Power Consumption (Max.) 380W Stand-by Power 0.5W
Aspect Ratio Control Power Supply 100V 240V @ 50~60 Hz (PSU Built-in) TEMPERATURE
Aspect Ratio Control Operation Temperature 0 ~ 40℃
Aspect Ratio Control INPUT SIGNAL COMPATIBILITY Digital(HDMI) Up to 4K (4096×2160) (60Hz, 50Hz, 24Hz)

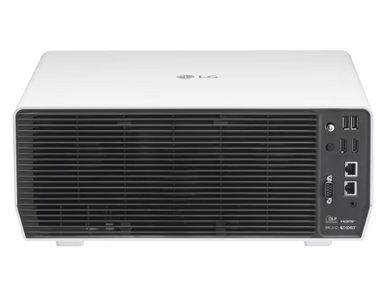

INPUT/OUTPUT TERMINALS Audio out Yes RS-232C Yes IP control Yes RJ45 1 HDMI 2 HDBaseT Yes
INPUT/OUTPUT TERMINALS USB Type-A 2 (USB2.0) FEATURES Platform (OS, UI) webOS 4.5 Internet Browser Yes
Screen Share (Wireless Mirroring with MiraCast supporting device) Yes
INPUT/OUTPUT TERMINALS Wireless Contents Share (with Android, iOS) Yes (Android Only)
INPUT/OUTPUT TERMINALS Contents Sharing (with DLNA supporting device) Yes
INPUT/OUTPUT TERMINALS Bluetooth Sound out Yes
Bluetooth AV Sync Control Yes LG Sound Sync(with Sound Bar) Yes
Bluetooth AV Sync Control Yes HDMI ARC(Audio Return Channel) Yes
Plug & Play(RGB/DVI/HDMI Auto Source Detection) Yes
Bluetooth AV Sync Control Yes USB Host (Movie, Music, Photo) Yes File(Office) Viewer Yes Setting Guide Yes (Bean Bird)
Bluetooth AV Sync Control Yes HDR Effect Yes DICOM Yes TruMotion Yes Digital Keystone Correction Warping Image Flip Yes (Horizontal/Vertical) Black Level Control Yes
Quick(Instant) Power on/off Yes (on 12 Sec off 2 Sec) Self Diagnosis Yes DESIGN Cabinet Color
Noise Reduction Yes Top/Bottom White Front/Rear – Black Local Key Joystick Kensington Lock Yes Leg-Stand Yes (4 Leg)
SKU BU53PST-GL
Brand LG
MPN BU53PST-GL
GTIN 00195174036525, 195174036525
UPC 195174036525
