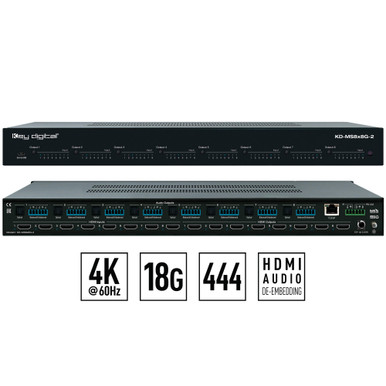

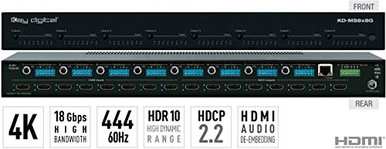

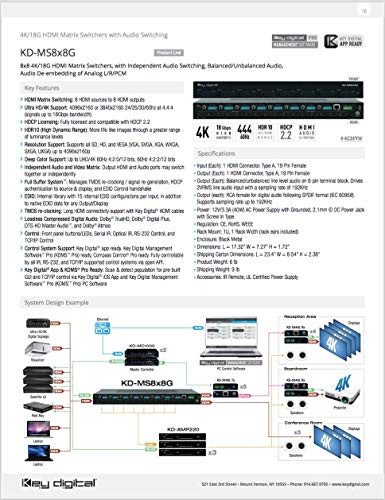

HDMI Matrix Switching 8 HDMI sources to 8 HDMI outputs
Ultra HD/4K Support 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
HDCP Licensing Fully licensed and compatible with HDCP 2.2
HDR10 (High Dynamic Range) More life-like images through a greater range of luminance levels
Resolution Support Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
Deep Color Support Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
Independent Audio and Video Matrix Output HDMI and Audio ports may switch together or independently
Full Buffer System Manages TMDS re-clocking / signal re- generation, HDCP authentication to source & display, and EDID Control handshake
EDID Internal library with 15 internal EDID configurations per input, in addition to native EDID data for any Output/ Display
TMDS re-clocking Long HDMI connectivity support with Key Digital HDMI cables
Lossless Compressed Digital Audio Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio , and Dolby Atmos
Control Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
Control System Support Key Digital app ready. Key Digital Management Software Pro (KDMS Pro) ready, Compass Control Pro ready. Fully controllable by all IR, RS-232, and TCP/ IP supported control systems via open API.
Key Digital App & KDMS Pro Ready Scan & detect population for pre-built GUI and TCP/IP control via Key Digital iOS App and Key Digital Management Software Pro (KDMS Pro) PC Software, Scan & detect population for pre-built GUI and TCP/IP control via Key Digital iOS App and Key Digital Management Software Pro (KDMS Pro) PC Software SPECIFICATIONS Technical: Input (Each): 1 HDMI Connector, Type A, 19 Pin Female
Input (Each) 1 HDMI Connector, Type A, 19 Pin Female
Output (Each) 1 HDMI Connector, Type A, 19 Pin Female, Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio input with a sampling rate of 192KHz, RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
Video Bandwidth TMDS bandwidth 18 Gbps
DDC Signal (Data) Input DDC Signal - 5 Volts p-p (TTL)
HDMI Video/Audio Signal Input Video Signal - 1.2 Volts p-p
DDC Communication EDID and HDCP Bi-directional buffering to Display and Source
K-Factor 0.22% @ optimal EQ Video Isolation (Crosstalk): -45dB @ 5MHz
Analog Audio Max Output Level 4dBu on 150k , DC coupling
Audio Bandwidth 20Hz to 20kHz @ 0dBu
TND + Noise 0.33% @0dBu @ 1kHz PCM Max Input Level: 1Vpp on 75 , AC coupling
PCM Max Output Level 1Vpp on 75 , DC coupling
Wired IR modulated IR signal input, 0-5V TTL or -10 to +10V
Power 12V/3.3A (40W) AC Power Supply with Grounded, 2.1mm ID DC Power Jack with Screw In Type, 12V/3.3A (40W) AC Power Supply with Grounded, 2.1mm ID DC Power Jack with Screw In Type General: Regulation: CE, RoHS, WEEE
Regulation CE, RoHS, WEEE
Rack Mount 1U, 1 Rack Width (rack ears included)
Enclosure Black Metal
KD-MS4x4G Dimensions L = 17.32 W = 5.78 H = 1.72
KD-MS8x8G Dimensions L = 17.32 W = 7.27 H = 1.72
Shipping Carton Dimensions L = 23.4 W = 8.54 H = 2.36
Product Weight 6 lb
Shipping Weight 9
Accessories IR Remote, UL Certified Power Supply, IR Remote, UL Certified Power Supply ACCESSORIES
Power Supply (qty 1) 12V/3A, 36W, desktop type, model KDSP12V3A, (qty 1) 12V/3A, 36W, desktop type, model KDSP12V3A Rack Ears
HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
6-Pin Terminal Blocks KD-MS4x4G (qty 5) / KD-MS8x8G - (qty 9)
SKU KD-MS8X8G
Brand Key Digital
MPN KD-MS8X8G
GTIN 00815996020730, 815996020730
UPC 815996020730
