Display System 3-Chip RGB Liquid Crystal Shutter Projection System LCD
Native Resolution 1366 x 768
Maximum Brightness White: 5000 Lumens Color: 5000 Lumens
Throw Ratio 0.27 to 0.37:1
Projection Size 61 to 130″ / 154.94 to 330.20 cm
HDR Support No
Light Source Laser Phosphor
On-Screen Resolution Up to 1920 x 1080 via Pixel-Shift Technology
Supported Resolutions Maximum: 1920 x 1080
Aspect Ratio Native: 16:9 Supported: 16:10 Supported: 21:9 Supported: 4:3 Supported: 16:6
Dynamic Contrast Ratio 2,500,000:1
Color Depth 10-Bit Dithering (1.07 Billion Colors)
Includes Lens Yes
Focus Manual
Aperture f/1.5
Focal Length 3.9mm
Optical Zoom No
Throw Distance 15.354 to 31.496″ / 0.39 to 0.8 m
Keystone Correction Manual to Vertical: 3 Manual to Horizontal: 3
Digital Zoom 1.35x
Built-In Speaker Yes
Projection Tilt Option Yes
HDCP Support Not Specified by Manufacturer
Wireless LAN / Wi-Fi No, Optional Adapter Available
Bluetooth No
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours
Fan Noise Full Brightness: 36 dB Low Brightness: 27 dB
Security Cable Lock Slot Security Bar
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 381 W Low Brightness: 270 W Standby Mode (Lamp Off): 2 W
Operating Conditions 41 to 113 F / 5 to 45 C at 20 to 80% Humidity
Dimensions (W x H x D) 18.1 x 9.0 x 17.7″ / 46.0 x 22.9 x 45.0 cm
Weight 20.7 lb / 9.39 kg
Package Weight 28.82 lb
Box Dimensions (LxWxH) 23.2 x 20.8 x 13.4″

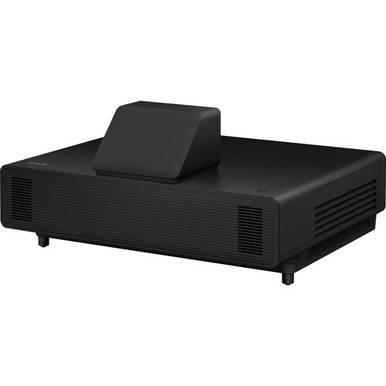

Epson 805F Overview The PowerLite 805F features HDBaseT, RCA, two VGA, and three HDMI inputs to support a variety of source devices. One VGA input can instead act as an output to daisy-chain multiple projectors or displays. An IR remote is included as an added convenience.
5000 lumens of color and white brightness provide bright images in settings with moderate ambient light
Full HD compatibility helps provide lifelike images up to 130″ diagonal With a laser light engine designed to last up to 20,000 hours with no lamps to replace, the projector is virtually maintenance-free
HDBaseT, VGA, composite video, and three HDMI connectors provide a variety of connectivity options
Epson 805F Overview Direct playback function via USB
Ultra-short throw design projects large, easy-to-read images in small spaces 360 placement lets you mount or place the projector at nearly any position or angle, including portrait
Epson 805F Overview Remote management and control tools allow ease of access and maintenance
Mirror photos, videos, and apps with the optional wireless LAN adapter and Miracast or the Epson Creative Projection app for iOS, which lets you create, connect, and project customized effects for a variety of signage applications
Epson 805F Overview Enterprise level security encryption RoHS compliant Recyclable design Epson 805FSpecs Display System
Epson 805F Overview 3-Chip RGB Liquid Crystal Shutter Projection System LCD
Epson 805F Overview Native Resolution 1366 x 768 Maximum Brightness
Epson 805F Overview White 5000 Lumens
Epson 805F Overview Color 5000 Lumens
Epson 805F Overview Throw Ratio 0.27 to 0.37:1
Epson 805F Overview Projection Size 61 to 130″ / 154.94 to 330.20 cm

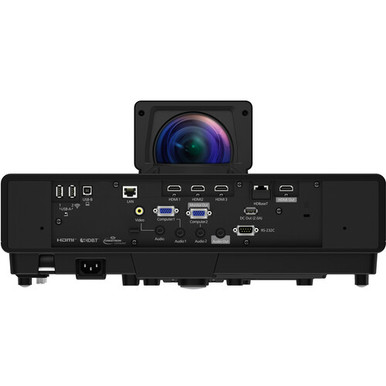

1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Power, Video
HDR Support No Inputs/Outputs 3x HDMI Audio, Video Input
HDR Support No Inputs/Outputs 1x HDMI Audio, Video Output
HDR Support No Inputs/Outputs 1x DE-15/DB-15 (VGA) Video Input, DE-15/DB-15 (VGA) Video Input/Output
1x RCA (Composite) Video Input 3x 1/8″ / 3.5 mm Mini Audio Input 1x 1/8″ / 3.5 mm Mini (Ethernet) Audio Output
1x RJ45 (Ethernet) LAN Input 1x DE-9/DB-9 (RS-232) Control Input
1x USB-A 2.0 Data Input, 2.0 LAN Input, 2.0 Power Output
1x USB-B 2.0 Control Output Light Source Laser Phosphor Image Display Display System, 2.0 Control Output HDCP Support
HDR Support No Inputs/Outputs 3-Chip RGB Liquid Crystal Shutter Projection System LCD
HDR Support No Inputs/Outputs Native Resolution 1366 x 768 On-Screen Resolution Up to 1920 x 1080 via Pixel-Shift Technology Supported Resolutions
HDR Support No Inputs/Outputs Maximum 1920 x 1080 Maximum Brightness
HDR Support No Inputs/Outputs White 5000 Lumens
HDR Support No Inputs/Outputs Color 5000 Lumens
Aspect Ratio Native 16:9
Aspect Ratio Supported 16:10, 21:9, 4:3, 16:6
Aspect Ratio Color Depth 10-Bit Dithering (1.07 Billion Colors) Lens Includes Lens Yes Focus Manual Aperture f/1.5
Aspect Ratio Focal Length 3.9mm Optical Zoom No
Aspect Ratio Throw Distance 15.354 to 31.496″ / 0.39 to 0.8 m, Ratio 0.27 to 0.37:1
Aspect Ratio Projection Size 61 to 130″ / 154.94 to 330.20 cm Features Keystone Correction
Manual to Vertical 3
Manual to Horizontal 3
Aspect Ratio HDR Support No Digital Zoom 1.35x Built-In Speaker Yes
Input/Output Connectors Inputs/Outputs 3x HDMI Audio, Video Input
Input/Output Connectors Inputs/Outputs 1x HDMI Audio, Video Output
Input/Output Connectors Inputs/Outputs 1x DE-15/DB-15 (VGA) Video Input, DE-15/DB-15 (VGA) Video Input/Output
Input/Output Connectors Inputs/Outputs Not Specified by Manufacturer Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi No, Optional Adapter Available Bluetooth No General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 30,000 Hours
Fan Noise Full Brightness 36 dB
Fan Noise Low Brightness 27 dB Security Cable Lock Slot Security Bar
Fan Noise Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 381 W
Power Consumption Low Brightness 270 W
Standby Mode (Lamp Off) 2 W
Power Consumption Operating Conditions 41 to 113 F / 5 to 45 C at 20 to 80% Humidity
Power Consumption Dimensions (W x H x D) 18.1 x 9.0 x 17.7″ / 46.0 x 22.9 x 45.0 cm Weight 20.7 lb / 9.39 kg Packaging Info Package Weight 28.82 lb
Power Consumption Box Dimensions (LxWxH) 23.2 x 20.8 x 13.4″
SKU 805F
