solid-state laser light source and air filter provide virtually maintenance-free operation for up to 20,000 hours
- Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
- Simplified installation features — full 360-degree mounting, wide lens shift, versatile connectivity; inputs including HDBaseT™ and HDMI® (HDCP 2.2)
- Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
- Multi-projector setup software — free software controls networked projectors and gives access to warping and edge blending
- Web- or network-based remote management — control and monitor projector status
Eco Features
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay Transport Partner
Specifications Projector:
Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixResolution on Screen: WXGA up to 1.0 million pixelsPixel Number in Device: 1,024,000 pixels (1280 x 800) x 3 chipsSignal Input: Maximum display resolution 1920 x 1080 (resizing display)
Display resolution 1280 x 800 pixelsColor Brightness – Color Light Output: 7,000 lumensWhite Brightness – White Light Output: 7,000 lumensAspect Ratio: Supports 4:3, 16:9, 16:10Brightness Uniformity: 85%Pixel Arrangement: Cross stripeKeystone Correction: Vertical: ±45 degrees; horizontal: ±30 degreesContrast Ratio: 2,500,000:1 (Dynamic Contrast: On)Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal)Illumination Technology: Laser Phosphor
Projection Lens:
Type: Powered shift/focus/zoom (ELPLM08 Lens)F-number: 1.7 – 2.3 (ELPLM08 Lens)Focal Length: 24.0 mm – 38.2 mm (ELPLM08 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM08 Lens)Throw Ratio Range: 1.44 – 2.32 (ELPLM08 Lens)Lens Shift: Vertical: ±67 percent; Horizontal: ±30 percent (ELPLM08 Lens)
Projector Details:

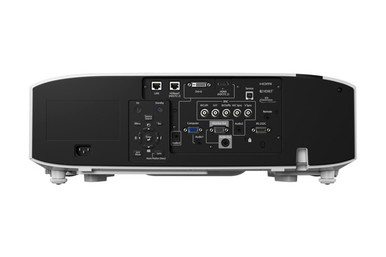

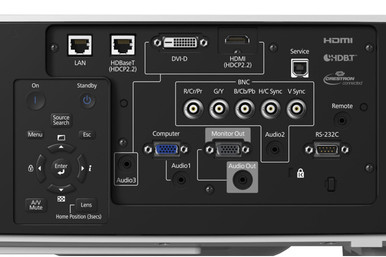

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160Interfaces:
- DVI-D x 1
- HDMI (HDCP 2.2) x 1
- HDBaseT x 1
- 5-BNC, VGA x 1
- Audio in: Mini Stereo x 3
- Variable audio out: Mini Stereo x 1
- USB connector Type B x 1: For service only
- USB connector Type A x 1: For wireless LAN, service, content playback
- Monitor out: Mini D-sub 15-pin x 1
- Serial: RS-232c x 1
- Remote Stereo Mini x 1
- Wired LAN: RJ45
Fan Noise: 34 dB (Normal Mode); 32 dB (Medium Mode) 30 dB (Quiet Mode)
Projector Dimensions:
Including feet – with standard lens: 21.5″ x 7.4″ x 19.1″ (545 x 189 x 484 mm)
Remote Control:
Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functionsOperating Distance: 98 ftOperating Angle:
- Right/left: Front: ± 60 degrees; Rear: ± 30 degrees
- Upper/lower: Front: + 30 to – 20 degrees; Rear: +50 to + 10 degrees
Power:
Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption: 361 W (Normal Mode), 263 W (Extended Mode), 2W (Network Standby), 0.5 W (Energy Saving)
