Input Signal Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160 Interfaces:
Audio in Mini Stereo x 3
Variable audio out Mini Stereo x 1
USB connector Type B x 1 For service only
USB connector Type A x 1 For wireless LAN, service, content playback
Monitor out Mini D-sub 15-pin x 1
Serial RS-232c x 1, RS-232c x 1 Remote Stereo Mini x 1
Wired LAN RJ45
Right/left Front: 60 degrees; Rear: 30 degrees
Upper/lower Front: + 30 to – 20 degrees; Rear: +50 to + 10 degrees, Front: + 30 to – 20 degrees; Rear: +50 to + 10 degrees Power: Power Supply Voltage: 100 240 V 10%, 50/60 Hz AC Power Consumption: 361 W (Normal Mode), 263 W (Extended Mode), 2W (Network Standby), 0.5 W (Energy Saving)
Power Supply Voltage 100 240 V 10%, 50/60 Hz AC Power Consumption: 361 W (Normal Mode), 263 W (Extended Mode), 2W (Network Standby), 0.5 W (Energy Saving)
6,000 lumens color/white brightness from a compact large-venue laser projector
native WXGA resolution for widescreen images; provides up to 1 million pixels on screen
Vibrant, true-to-life images with Epson 3-chip 3LCD technology Worry-free operation
solid-state laser light source and air filter provide virtually maintenance-free operation for up to 20,000 hours 11 optional interchangeable lenses with powered lens shift and lens memory, including an ultra short-throw lens with zero offset (lens not included)
Lifelike images
high contrast ratio and BT.709 color space for exceptional clarity and detail
Dynamic projection capabilities advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
Customized performance brightness modes to maximize light source life and provide a consistent brightness level
Multi-projector setup software free software controls networked projectors and gives access to warping and edge blending
Weight 34.4 lb without lens Security: Security cable hole, Kensington lock provision
Projection Lens Type: Powered shift/focus/zoom (ELPLM08 Lens) F-number: 1.7 2.3 (ELPLM08 Lens) Focal Length: 24.0 mm 38.2 mm (ELPLM08 Lens) Zoom Ratio: Optical zoom 1 1.6x (ELPLM08 Lens) Throw Ratio Range: 1.44 2.32 (ELPLM08 Lens) Lens Shift: Vertical: 67 percent; Horizontal: 30 percent (ELPLM08 Lens)

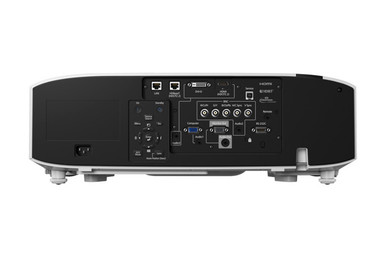

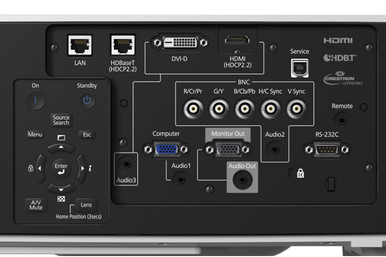

Projector Details Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160 Interfaces: DVI-D x 1
HDMI (HDCP 2.2) x 1 HDBaseT x 1 5-BNC, VGA x 1
USB connector Type B x 1: For service only, connector Type A x 1: For wireless LAN, service, content playback
Fan Noise 34 dB (Normal Mode); 32 dB (Medium Mode) 30 dB (Quiet Mode)
Projector Dimensions Including feet – with standard lens: 21.5″ x 7.4″ x 19.1″ (545 x 189 x 484 mm) Remote Control: Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functions Operating Distance: 98 ft Operating Angle: Right/left: Front: 60 degrees; Rear: 30 degrees
SKU L1060WNL
Brand Epson
MPN V11H958920
GTIN 00010343949935, 010343949935
UPC 010343949935
