Projection System High-aperture Epson 3-chip, 3LCD technology, High-aperture Epson 3-chip 3LCD
Projection Method Front / rear / ceiling mount
Driving Method Epson Poly-silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3
Color Brightness – Color Light Output 12000 lumens
White Brightness – White Light Output 12000 lumens
Aspect Ratio Supports 4:3, 16:9, 16:10
Native Resolution 1920 x 1200 (WUXGA), WUXGA (1920 x 1200) w/ 4K Enhancement Technology
Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Lamp Type 400 W UHE
Lamp Life Normal mode: Up to 3000 hours ECO mode: Up to 4000 hours
Brightness Uniformity (typical) 90%
Pixel Arrangement Cross stripe
Throw Ratio Range (For Standard Lens Only) 1.57 – 2.56
Size – projected distance 50″ 300″
Keystone Correction (For Standard Lens) Horizontal: 30 degrees Vertical: 45 degrees
Contrast Ratio Normal, Dynamic Mode: Up to 15,000:1
Color Processing 10 bit
Color Reproduction Up to 1 billion colors
Pixel Clock, Horizontal,Vertical Pixel Clock: 13.5 MHz 162 MHz (up to UXGA 60 Hz) Horizontal: 15 KHz 92 KHz Vertical: 50 Hz 85 Hz
Temperature 32 to 113 F (0 to 45 C)
Weight 47.8 lb without lens
Security Security cable hole Lens lock Kensington lock provision
Type (For Standard Lens) Powered shift/focus / zoom
F-number (For Standard Lens Only) 1.7 – 2.3
Focal Length (For Standard Lens) 24.0 mm 38.2 mm
Zoom Ratio (For Standard Lens) Optical zoom 1.0 1.6x
Lens Shift (For Standard Lens) Vertical: 67 degrees Horizontal: 30 degrees
Display Performance NTSC: 480 line PAL: 576 line (depends on observation of the multi-burst pattern)
Input Signal NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p Pixelworks :Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)
Interfaces 3G-SDI x 1 DVI-D x 1 HDMI x 1 HDBaseT x 1 5-BNC, VGA x 1 Audio in: Mini Stereo x 3 Variable audio out: Mini Stereo x 1 USB connector Type B x 1: For service only USB connector Type A x 1: For wireless only Monitor out: Mini D-sub 15 pin x 1 Serial: RS-232c x 1
Fan Noise Normal mode: 39 dB ECO mode: 33 dB
Audio Output None
Operating Distance 49 ft
Operating Angle Right / Left: Front: 60 degrees Rear: 30 degrees Upper / Lower: Front: 45 to 15 degrees Rear: 10 to 50 degrees
Power Supply Voltage 100 240 V 10%, 50/60 Hz AC
Power Consumption Normal mode: 955 W ECO mode: 597 W Communication on: 2.2W standby Communication off: 0.23 W standby
Video Processing Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Video Standards 3D Y/C separation, 3D noise reduction, mosquito noise reduction DCDi – Directional Correlational Deinterlacing Motion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
Super Resolution FineFrame Interpolation 8:8 Pull-down Processing Closed Captioning
Standard Connectivity Wired: Integrated 100Mbps Wireless: Optional – 802.11b/g/n Wireless Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
Remote Control and Management Epson EasyMP Monitor Network projection Multi-projection AMX Device Discovery Crestron Integrated Partner and Crestron RoomView Extron IP Link and XTP PJLink
Excluding feet and lens 23.07 x 19.37 x 7.76 (W x D x H)
Including feet – with standard lens 23.07 x 19.37 x 8.31 (W x D x H)
WUXGA 3LCD Laser Projector w/Lens, 12000 Lumens 16 10 (Black)
Color Brightness 12,000 lumens
White Brightness 12,000 lumens
Description Epson V11H792120 Exceptional Full HD widescreen display Web-based remote management
Description Epson V11H792120 Dynamic projection capabilities
WUXGA 3LCD Laser Projector w/Lens, 12000 Lumens 16:10 (Black)
Description Epson V11H792120 Extraordinary color brightness & ensures brilliant images

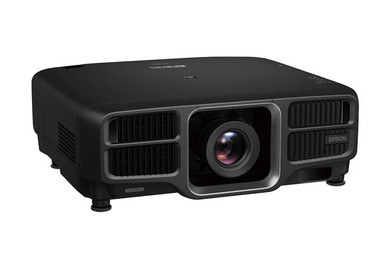

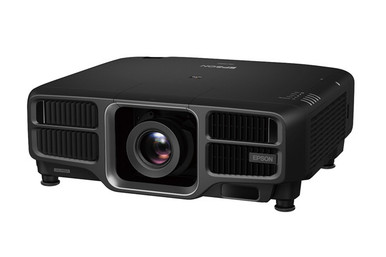

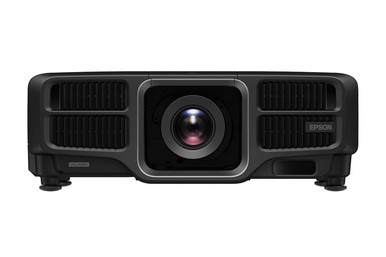

Description Epson V11H792120 The Epson V11H792120 Pro L1505U Laser WUXGA 3LCD Large-venue Projector with 4K Enhancement combines a laser light source and 3LCD technology for powerful, uncompromising images. Ideal for events staging, auditoriums, and sanctuaries, this sleek, black projector features native WUXGA performance with Epson 4K Enhancement Technology. Offering extraordinary color brightness, Epson 3LCD projectors ensure brilliant images.
Delivering 12,000 lumens of color brightness and 12,000 lumens of white brightness, the L1505U’s laser light engine also provides a virtually maintenance-free operation up to 30,000 hours. Plus, its exceptional integration capabilities include diverse connectivity such as HDBaseT and nine optional powered lenses with lens shift and lens memory (ships with middle#2 lens – V12H004M09).
Description Epson V11H792120 Projection System High-aperture Epson 3-chip 3LCD
Description Epson V11H792120 Native Resolution WUXGA (1920 x 1200) w/ 4K Enhancement Technology
Description Epson V11H792120 Color Brightness 12,000 lumens
Description Epson V11H792120 White Brightness 12,000 lumens In The Box Pro L1505U projector Lens
Description Epson V11H792120 Power cable Computer cable (VGA)
Description Epson V11H792120 Projector remote control with batteries User manual CD EasyMP software CD Quick Setup Sheet
Description Epson V11H792120 Lens lock screw Manuals/Guides Manuals User Guide Spec Sheets Data Sheet Other
Dimensional Drawing Manufacturer Specs Model V11H792120 Specifications Description
Dimensional Drawing Manufacturer Specs Pro L1505U Laser WUXGA 3LCD Projector with 4K Enhancement & Standard Lens
Projection System High-aperture Epson 3-chip, 3LCD technology
Projection System Projection Method Front / rear / ceiling mount Driving Method
Projection System Epson Poly-silicon TFT Active Matrix Pixel Number 2,304,000 dots (1920 x 1200) x 3
Projection System Color Brightness – Color Light Output 12000 lumens
Projection System White Brightness – White Light Output 12000 lumens
Projection System Aspect Ratio Supports 4:3, 16:9, 16:10
Projection System Native Resolution 1920 x 1200 (WUXGA) Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050 Lamp Type 400 W UHE Lamp Life
Projection System Normal mode Up to 3000 hours
Projection System ECO mode Up to 4000 hours
Projection System Brightness Uniformity (typical) 90% Pixel Arrangement Cross stripe
Throw Ratio Range Size projected distance 50″ 300″
Throw Ratio Range Horizontal 30 degrees
Throw Ratio Range Vertical 45 degrees
Normal, Dynamic Mode Up to 15,000:1
Contrast Ratio Color Processing 10 bit
Contrast Ratio Color Reproduction Up to 1 billion colors
Effective Scanning Frequency Range Pixel Clock, Horizontal,Vertical
Effective Scanning Frequency Range Pixel Clock 13.5 MHz 162 MHz (up to UXGA 60 Hz)
Effective Scanning Frequency Range Horizontal 15 KHz 92 KHz
Effective Scanning Frequency Range Vertical 50 Hz 85 Hz General Temperature 32 to 113 F (0 to 45 C) Weight 47.8 lb without lens Security Security cable hole
Effective Scanning Frequency Range Lens lock Kensington lock provision
(For Standard Lens) Powered shift/focus / zoom F-number, 24.0 mm 38.2 mm, Optical zoom 1.0 1.6x
(For Standard Lens) Vertical 67 degrees Horizontal: 30 degrees
Projector Details Display Performance NTSC 480 line
Projector Details Display Performance PAL 576 line (depends on observation of the multi-burst pattern)
Input Signal Pixelworks Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 – 2, 3 – 2 film detection) Interfaces 3G-SDI x 1 DVI-D x 1
Input Signal HDMI x 1 HDBaseT x 1 5-BNC, VGA x 1
Input Signal Audio in Mini Stereo x 3
Variable audio out Mini Stereo x 1
Input Signal USB connector Type B x 1: For service only, connector Type A x 1: For wireless only
Input Signal Monitor out Mini D-sub 15 pin x 1
Input Signal Serial RS-232c x 1
Fan Noise Normal mode 39 dB
Fan Noise ECO mode 33 dB
Fan Noise Audio Output None Remote Control Features
Fan Noise Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
Fan Noise Operating Distance 49 ft
Operating Angle Right / Left Front: 60 degrees
Fan Noise Rear 30 degrees Upper / Lower: Front: 45 to 15 degrees, 10 to 50 degrees Power
Power Consumption Normal mode 955 W
Power Consumption ECO mode 597 W
Power Consumption Communication on 2.2W standby
Power Consumption Communication off 0.23 W standby Video
Video Processing Analog NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Video Processing HDMI 480i / 576i / 480p / 576p / 720p /1080i / 1080p
Video Processing DVI-D 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
3D Y/C separation, 3D noise reduction, mosquito noise reduction
Video Standards DCDi Directional Correlational Deinterlacing Motion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection) Super Resolution FineFrame Interpolation 8:8 Pull-down Processing Closed Captioning Standard Connectivity
Video Standards Wired Integrated 100Mbps
Video Standards Wireless Optional – 802.11b/g/n, Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
Video Standards Remote Control and Management Epson EasyMP Monitor Network projection Multi-projection AMX Device Discovery
Video Standards Crestron Integrated Partner and Crestron RoomView Extron IP Link and XTP PJLink
Video Standards Projector Dimensions Excluding feet and lens 23.07 x 19.37 x 7.76 (W x D x H) Including feet – with standard lens 23.07 x 19.37 x 8.31 (W x D x H) Tech Specs
SKU PL-L1505U
Brand Epson
MPN V11H792120
GTIN 00010343925991, 010343925991
UPC 010343925991
