Display System 3-Chip Polysilicon TFT LCD
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Maximum: Full HD 1080p – 1920 x 1080
Maximum Brightness 3600 Lumens
Aspect Ratio Native: 16:10
Contrast Ratio 15,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Focus Manual
Lens f/1.51 – 1.99 (f = 18.2 – 29.2 mm)
Optical Zoom Manual: 1.6x
Throw Distance 22.31 – 27.559′ / 6.8 – 8.4 m
Throw Ratio 1.38 to 2.24:1
Projection Size 29 – 280″ / 73.66 – 711.20 cm
Keystone Correction Vertical: 30

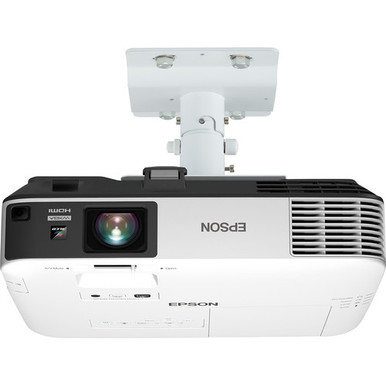

Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 16W
Wireless LAN / Wi-Fi Yes, Built-in

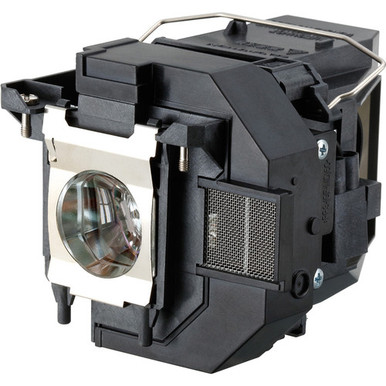

Light Source Lamp (1 x UHE)
Lamp Power 250 W
Expected Lamp Life Medium Brightness: 10,000 Hours
Fan Noise Medium Brightness: 29 dB
Security Cable Lock Slot
AC Input Power 120 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 334 W Standby Mode (Lamp Off): 2.4 W Standby Mode (Lamp Off): 0.21 W
Dimensions (W x H x D) 14.8 x 4.5 x 11.4″ / 37.6 x 11.4 x 29.0 cm Including feet 14.8 x 3.9 x 11.4″ / 37.6 x 9.9 x 29.0 cm Excluding feet and lens
Weight 9.7 lb / 4.4 kg
Package Weight 14.5 lb
Box Dimensions (LxWxH) 20.6 x 15.1 x 8.1″

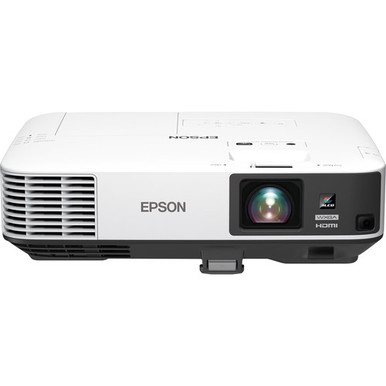

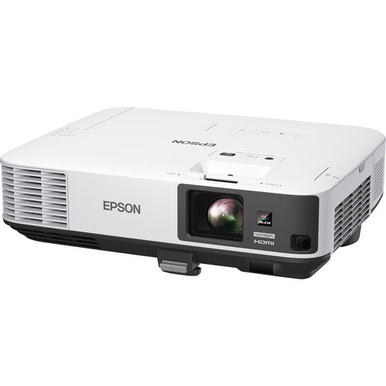

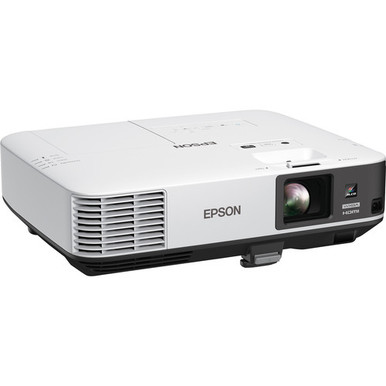

Epson 975W Overview Enjoy bright, vibrant images with the Epson PowerLite 975W 3600-Lumen WXGA 3LCD Projector . Its 3600 lumens of brightness, combined with its 15,000:1 contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. Its 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.
Brightness of 3600 Lumens WXGA (1280 x 800) Native Resolution
Brightness of 3600 Lumens VGA, RCA Composite, 2 x HDMI Inputs
VGA Output for Loop-Through Analog Audio Input and Output Built-In 16W Speaker
Wireless LAN Module Included High Color and White Brightness Levels
Wireless LAN Module Included The PowerLite 975W features 3600 lumens of color and white brightness to help overcome ambient light.
Includes a LAN module for wireless connectivity.
Wireless Ready HDMI with MHL connectivity
Wireless Ready View HD content and mirror your mobile device with MHL. Auto Screen Fit
Wireless Ready Designed to easily and quickly adjust the image to fit the screen. Accurate Colors 3-chip, 3LCD technology provides a wide color gamut. Eco-Friendly Lamp
Wireless Ready The lamp lasts up to 10,000 hours in ECO Mode.
Enjoy secure wireless connectivity plus wireless HD screen mirroring of up to four different devices with Miracast, allowing you to mirror Chromebook, iOS, Android, Mac, and Windows computer screens. Split Screen Feature
Simultaneously project two images, video or still, side by side from two different sources. Enhanced Detail
The projector’s 15,000:1 dynamic contrast ratio helps enhance clarity for both text and graphics.
Designed for Versatile Connectivity Two HDMI ports support HD A/V devices, and one port is MHL-compatible for use with your compatible smart devices.
Remote Management and Control Tools The included software allows for remote monitoring and control of Epson network projectors. The PowerLite 975W is also compatible with Crestron RoomView management software. Epson 975W Specs Image Display Display System 3-Chip Polysilicon TFT LCD
Remote Management and Control Tools Native Chip Resolution 1280 x 800 (WXGA) Supported Resolutions
Remote Management and Control Tools Maximum Full HD 1080p – 1920 x 1080 Maximum Brightness 3600 Lumens
Aspect Ratio Native 16:10
Aspect Ratio Contrast Ratio 15,000:1
Aspect Ratio Color Depth 10-Bit (1.07 Billion Colors) Lens Focus Manual Lens
Aspect Ratio Manual 1.6x
Throw Distance Throw Ratio 1.38 to 2.24:1
Projection Size 29 280″ / 73.66 – 711.20 cm Features Keystone Correction
Projection Size Vertical 30 Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes (Mono) Speaker Power 16W

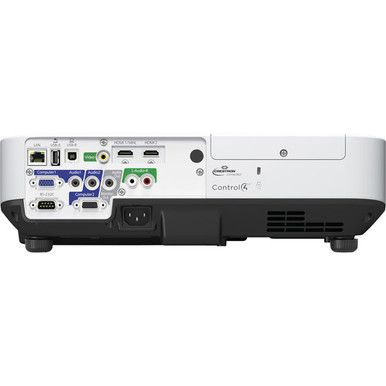

1 x HDMI (HDMI Type-A) Audio, Video Input, with MHL Support (HDMI Type-A) Audio, Video Input
Input/Output Connectors Inputs/Outputs 1 x VGA (DE-15/DB-15) Video Input, x 2RCA Audio Input
1 x Composite (RCA) Video Input 2 x 1/8″ / 3.5 mm Mini Audio Input
1 x VGA (DE-15/DB-15) Video Output 1 x 1/8″ / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN Input 1 x RS-232 (DE-9/DB-9) Control Input
1 x USB 2.0 (USB Type-A) Data, 2.0 (USB Type-B) Control Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi Yes, Built-in General Light Source Lamp (1 x UHE) Lamp Power 250 W Expected Lamp Life
Input/Output Connectors Inputs/Outputs Medium Brightness 10,000 Hours
Fan Noise Medium Brightness 29 dB Security Cable Lock Slot
Fan Noise AC Input Power 120 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness 334 W
Standby Mode (Lamp Off) 2.4 W, 0.21 W
Power Consumption Dimensions (W x H x D) 14.8 x 4.5 x 11.4″ / 37.6 x 11.4 x 29.0 cm Including feet 14.8 x 3.9 x 11.4″ / 37.6 x 9.9 x 29.0 cm Excluding feet and lens Weight 9.7 lb / 4.4 kg Packaging Info Package Weight 14.5 lb
Power Consumption Box Dimensions (LxWxH) 20.6 x 15.1 x 8.1″
SKU PL-975W
Brand Epson
MPN V11H835020
GTIN 00010343932388, 010343932388
UPC 010343932388
