Epson 700U Overview
The PowerLite 700U 4000-Lumen WUXGA Ultra-Short Throw Laser Projector from Epson offers Full HD WUXGA resolution, a projection size of up to 130″, and a brightness rating of 4000 lumens (color and white brightness). The laser light source can operate for up to 20,000 hours maintenance-free. The PowerLite 700U features HDMI, VGA, and RCA video inputs to support various source devices. A VGA cable and an IR remote control are included for added convenience.
Contrast ratio up to 2,500,000:1, for deep blacks and brilliant, vivid colors
HDMI audio and video connection for HD quality with just one cable
Flexible positioning
Compatible with Crestron, AMX, Extron, and PJLink
Recyclable product, RoHS compliant
Epson 700U Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | VGA – 640 x 480 SVGA – 800 x 600 XGA – 1024 x 768 SXGA2 – 1280 x 960 SXGA3 – 1280 x 1024 WXGA 60-1 – 1366 x 768 WXGA+ – 1440 x 900 SXGA+ – 1400 x 1050 WXGA++ – 1600 x 900 WSXGA+ – 1680 x 1050 |
| Maximum Brightness | White: 4000 Lumens Color: 4000 Lumens |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 2500000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.6 (f = 4.2 mm) |
| Throw Ratio | 0.27 to 0.37:1 |
| Projection Size | 70 – 130″ / 1.78 – 3.30 m |
Features
| Keystone Correction | Manual-Vertical: ± 3° Manual-Horizontal: ± 3° |
| Digital Zoom | 1.35x |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
| Projection Tilt Option | Yes |
Input/Output Connectors

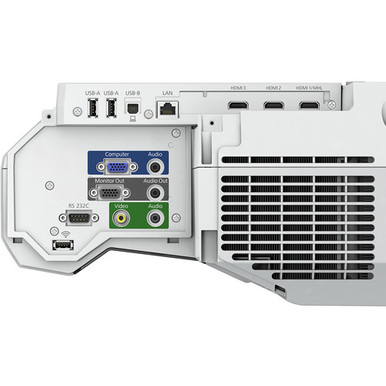

| Inputs/Outputs | 1 x HDMI with MHL Support (HDMI Type-A) Video 2 x HDMI Type-A Video 1 x RS-232 (DE-9/DB-9) Control 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x RCA Video 2 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output 3 x USB Type-A Data 1 x USB Type-B Data 1 x RJ45 LAN |
| Memory Card Slot | None |
General
| Expected Lamp Life | Full Brightness: 20,000 Hours |
| Fan Noise | Full Brightness: 38 dB Low Brightness: 27 dB |
| Security | Cable Lock Slot Padlock Password Protection |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 448 W Low Brightness: 348 W Standby Mode (Lamp Off): 0.3 W |
| Dimensions (W x H x D) | 19.4 x 7.4 x 17.2″ / 49.3 x 18.8 x 43.7 cm with feet 19.4 x 6.7 x 17.2″ / 49.3 x 17.0 x 43.7 cm without feet |
| Weight | 24.3 lb / 11.02 kg |
Packaging Info
| Package Weight | 31.2 lb |
| Box Dimensions (LxWxH) | 26 x 22.25 x 10″ |
