The BrightLink Pro 1470Ui WUXGA Interactive Projector from Epson offers Full HD WUXGA resolution, a projection size of up to 100″, and a brightness rating of 4000 lumens (color and white brightness). The laser light source can operate for up to 20,000 hours maintenance free. The projector includes a high-speed LAN module for wireless connectivity and lets you connect up to 50 Mac, PC, iOS, and Android devices for local and remote collaboration.
Touch, draw, select, and interact using your finger or included digital pens
Annotate without a computer, using only the built-in, PC-free tools
Both local and remote participants can simultaneously annotate content from mobile devices, computers, and other BrightLink Pros
Install two displays side-by-side to create one larger seamless interactive surface
Simultaneously display up to four screens with Epson iProjection
Remote control works up to 19.7′
Compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols
Recyclable product, RoHS compliant
Key Features
- Brightness of 4000 Lumens
- WUXGA (1920 x 1200) Native Resolution
- Laser Light Source
- Ultra-Short 0.22 to 0.37:1 Throw Ratio
- Built-In 16W Speaker
- Ethernet and RS-232 Controllable
- Remote Control Included
- Two Interactive Pens Included
Epson 1470Ui Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1920 x 1080 (WUXGA) |
| Maximum Brightness | White: 4000 Lumens Color: 4000 Lumens |
| Aspect Ratio | 16:10 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.6 (f = 4.2 mm) |
| Throw Ratio | 0.22 to 0.37:1 |
| Projection Size | 70 – 100″ / 1.78 – 2.54 m |
Features
| Keystone Correction | Manual-Horizontal: ± 3° Manual-Vertical: ± 3° |
| Digital Zoom | 1.35x |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |

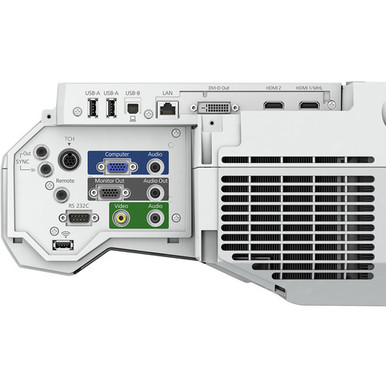

Input/Output Connectors
| Inputs/Outputs | 1 x Component (DE-15/DB-15) Video 1 x Composite (RCA) Video |
| Memory Card Slot | None |
General
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours |
| Fan Noise | Full Brightness: 38 dB Low Brightness: 27 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| Power Consumption | Full Brightness: 448 W Low Brightness: 348 W Standby Mode (Lamp Off): 0.5 W |
| Dimensions (W x H x D) | 19.5 x 6.8 x 17.2″ / 49.5 x 17.3 x 43.7 cm with feet |
| Weight (lb) | 25.10 lb |
Packaging Info
| Package Weight | 42 lb |
| Box Dimensions (LxWxH) | 25 x 22 x 10″ |
