What’s In The Box:

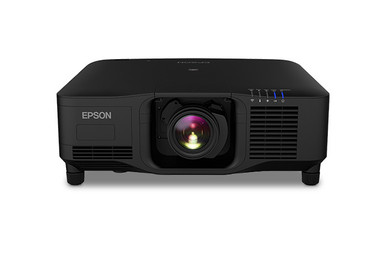

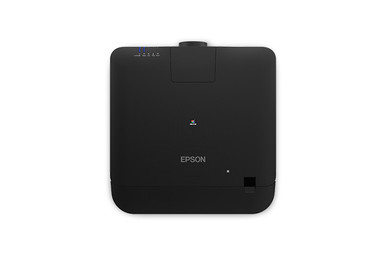

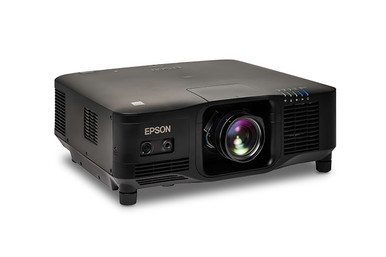

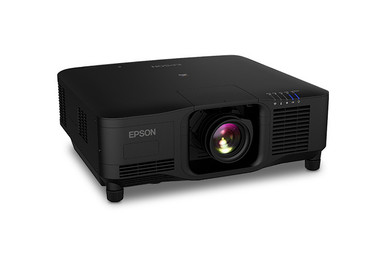

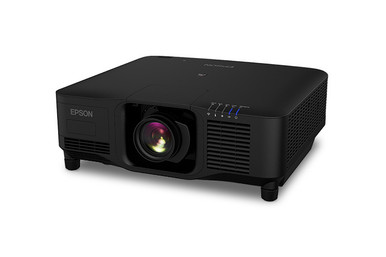

• EB-PU1008W projector
• Power cable
• Remote control with 2 batteries
• Cable cover
• Lens connector cap
• User guide
• Warranty sheet

Specifications

Projection System High-aperture Epson 3-chip 3LCD
technology
Projection Method Front/rear/ceiling mount
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3
Signal Input Maximum Display Resolution: 4096 x 2160
(resizing display); Display Resolution: 1920 x 1200 pixels
Native Resolution WUXGA with 4K Enhancement2
(1920 x 1200 x 2)
Resolution on Screen WUXGA with 4K Enhancement2
/
4.6 million pixels
Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9*
* With vertical image shift control within letterbox area
Pixel Arrangement Cross stripe
Color Brightness1 Color Light Output: 20,000 lumens
White Brightness1 White Light Output: 20,000 lumens
Contrast Ratio 2,500,000:1 (Dynamic Contrast: On)
Brightness Uniformity (Typical) 85%
Color Reproduction Up to 1.07 billion colors
Keystone Correction Vertical: ±45 degrees;
Horizontal: ±30 degrees
Illumination Technology Laser Diode

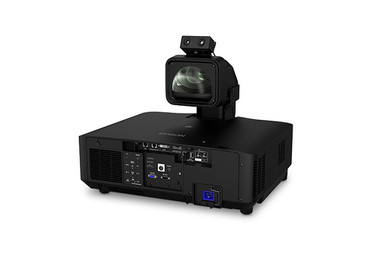

Projection Lens (Standard)
Visit Epson.com for information on optional lenses.
Standard Lens ELPLM15 (sold separately)
Type Powered shift/focus/zoom
F-Number 2.0 – 2.1
Focal Length 14.8 mm – 17.7 mm
Zoom Ratio Optical Zoom: 1.0 – 1.6
Throw Ratio Range 1.57 – 2.56
Lens Shift Vertical: ±60%; Horizontal: ±18%

Other Features
Operating Temperature 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
Power Supply Voltage 220 V – 240 V AC ± 10%, 50/60 Hz
Power Consumption
1,301 W (Normal/Custom)
899 W (Quiet/Extended)
2.0 W Standby (Network Standby)
0.4 W Standby (Energy Saving)
Fan Noise 45 dB (Normal Mode); 37 dB (ECO)
IP Rating IP5X10
Security Security cable hole, lens lock, Kensington®
lock provision, wireless LAN unit lock

Video I/O
Input Signal Input Video Signal (HDMI®, DVI-D and HDBaseT®
ports): 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/
4096 x 2160
Auto Power On Signal Detection on HDMI/Plug-In Detection
(HDMI, VGA 15-pin)
Sleep Mode Yes (with timer)
HDMI CEC Control Yes

Dimensions (W x D x H)
Dimensions Including Feet 23.1″ x 19.4″ x 8.6″
Weight 53.7 lb (24.4 kg)

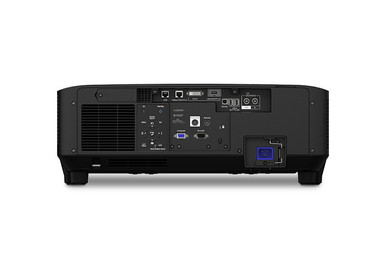

Interfaces
3G-SDI in/out
HDMI x 1 (HDCP 2.3)
HDBaseT x 1
DVI-D x 1
VGA x 1
Variable Audio Out: Mini Stereo x 1
USB Type-B x 1
USB Type-A x 2 (5 V, 2.0 A)
USB Type-A for Wireless LAN (Optional)
Serial: RS-232c x 1 (9-pin)
Remote Mini Stereo
Network: RJ-45

Remote Control
Features Power, Source Search Selection, Lens Shift/Zoom/
Focus, Test Pattern Selection, A/V Mute, Freeze, User ID, Auto
Aspect, Color Mode, Number, Page Up and Down, E-Zoom,
Volume, Help, Menu, Enter, ESC and Pointer Functions
Operating Angle
Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +10 degrees
Operating Distance 98 ft

Eco Features
RoHS compliant
Recyclable product10
Epson America, Inc. is a SmartWay® Transport Partner11

Support
Epson ConnectionSM
Pre-Sales Support (U.S. and Canada): 800-463-7766
Website: www.epson.com
