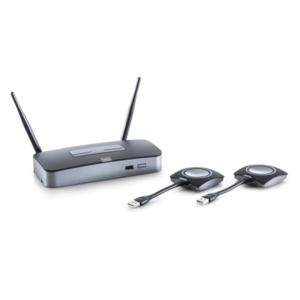

ClickShare makes connecting to the meeting rooms video system a matter of clicking a button. This one click wonder not only helps the presenter get the presentation on-screen in a second, but it also allows the other people in the meeting to participate more actively. This is done using the unique ClickShare Button, or by installing a simple app to share content from an Android or iOS smartphone or tablet. The result is enhanced meeting efficiency and better decision-making.

Specification

Operating system
Windows XP/Vista/7/8/8.1 32 & 64 bit
Mac OSX 10.6/10.7/10.8/10.9
Android 2.2 and later (ClickShare mobile app)
iOS 5.0 and later (ClickShare mobile app)
Video outputs HDMI (video and audio)15 pin VGA
Frame rate Up to 30 fps depending on environment
Output resolution HDMI: 1280×720 (720P), 1920×1080 (1080p)
VGA: (SVGA (800×600) / XGA (1024×768) / WXGA(1280×768) /
WXGA+(1280×800) / 1360 * 768 / 1440 * 900 / 1600 * 1200
Input Resolutions Up to 2048×1536 (QXGA)
Number of sources simultaneous on screen 1
Number of simultaneous connections 8
Audio Radio quality 16bits 22KHz (no synchronization) via audio jack or HDMI
iPad, iPhone and Android compatibility Available via ClickShare app for static content.
Authentication protocol WPA2 PSK
Wireless transmission protocol IEEE 802.11 a/b/g/n
Data rate wireless Up to 300Mbps
Reach Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit,
depending on environment
Band 2.4 GHZ and 5 GHz
Power External Power adaptor 5V DC input 2.6A (included in set)
Connections USB Host x 2
RJ 45 LAN Port
Audio analog line out on mini jack socket (3.5mm)
Temperature range Operating: 0°C to +40°C (+32°F to +104°F)
Storage: 10°C to +60°C (+14°F to +140°F)
Humidity Storage: 0 to 90% relative humidity, noncondensing
Operation: 0 to 80% relative humidity, noncondensing
Wall mounts Included in set
Certifications FCC/CE
Warranty 3 years standard
ClickShare Base Unit dimensions
Dimensions (HxWxD) Excl. antennas: 37mm x 186mm x 85mm / 1.457” x 7.323” x 3.346”
Incl. antennas: 125mm x 186mm x 121mm x / 4.921” x 7.323” x 4.763”
Weight 530g / 1.17lbs (incl. antennas)
