The Chief ConnexSys LVSXU Video Wall Landscape Mounting System supports 42 to 80″ displays up to 150 lb on a single strut channel for quick row-leveling. It can extend your display from 4 to 13.4″ from the wall and supports 200 x 100 to 700 x 400 mm mount patterns in either landscape orientation. It provides -2.5 to 4° of tilt adjustment, 1″ of height adjustment, and three levels of lateral adjustment. The ConnexSys LVSXU mount installs on a separately sold rail and provides six points of adjustment in one location at the top.
Speed
- Hang units on a single strut channel for quick row-leveling
- Eliminates the need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8″ sizes of channel strut
- Reduces installation time – especially for XL and recessed configurations
- Tool-free ClickConnect latching secures displays

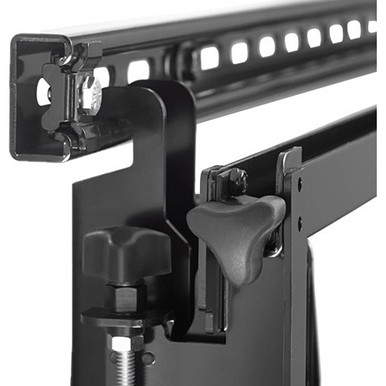

- PowerZone provides 6 points of adjustment in one location at the top of the mount
Alignment
- Height adjustment of ±1″ on each interface
- Tilt adjustment at a single pivot point protects displays from twisting
- Depth can be set between 4 and 7.4″ from the wall, providing a range of “home positions”, making it suitable for recessed installations
- Both sides adjust independently, compensating for imperfections in the wall
- Walls can be out of alignment by up to 2″ horizontally
- Three levels of lateral adjustment: Mount left/right along rail, interface left/right along mount, and lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions
Serviceability

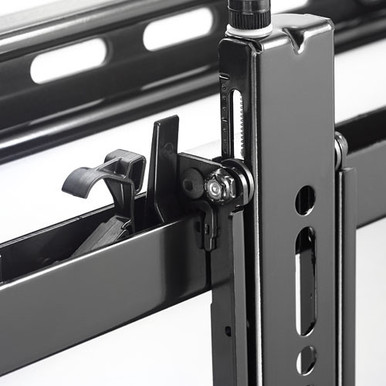

- RapidDraw display release system – cord release system gently and remotely pops any screen out for easy access and can be extended up to 13.4″ for service
- Protects displays by not requiring an aggressive push to release/pop-out
- Releases only on demand, preventing accidental pop-outs
- Cord can be set up to pull for release from any 90° angle

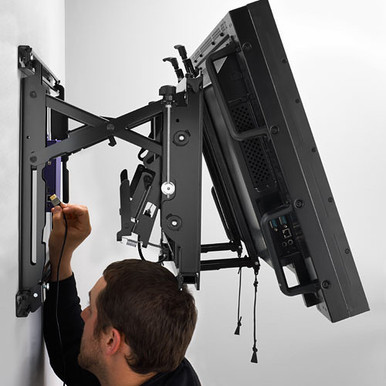

- Kickstand provides 20° of bottom tilt access
Rigidity
- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable “home” depth position locks screens in place to maintain alignment despite accidental bumps/pushes
Additional Features
- Accepts padlocks with up to 0.25″ shank diameter
- Each mount comes with adjustments set in the same position
Chief LVSXUSpecs
| Compatible Models | |
| Mounting-Hole Pattern | |
| Load Capacity | |
| Adjustments | |
| Orientation | |
| Distance from Mounting Surface | |
| Dimensions |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
