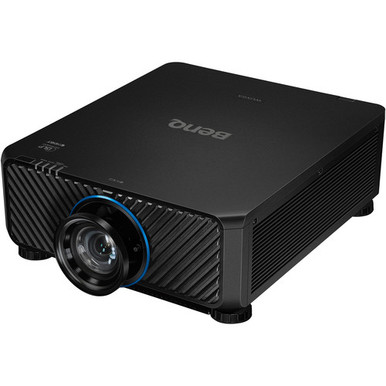

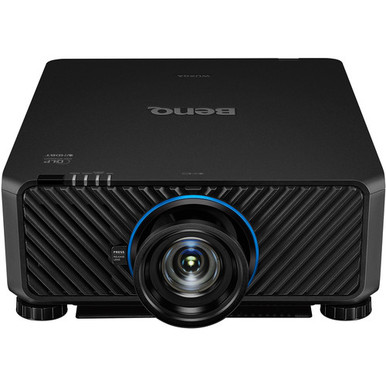

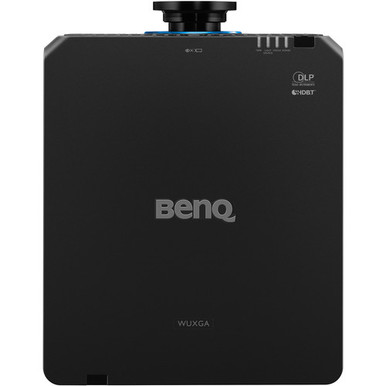

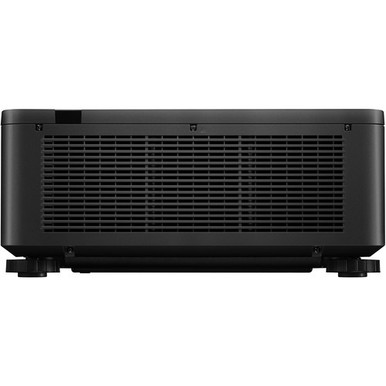

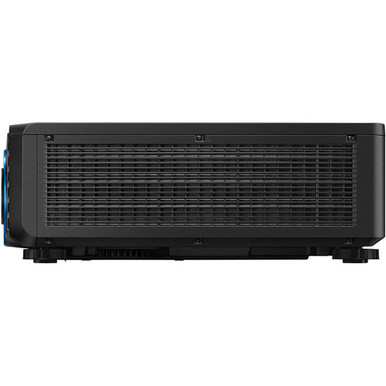

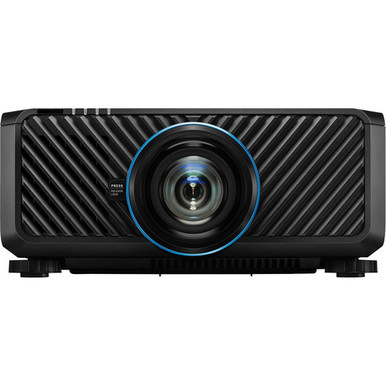

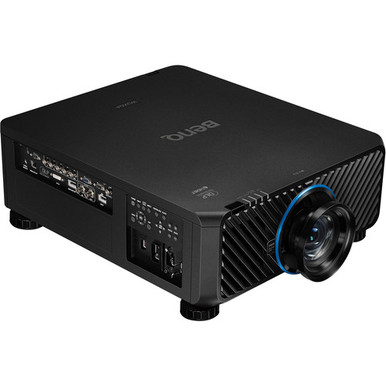

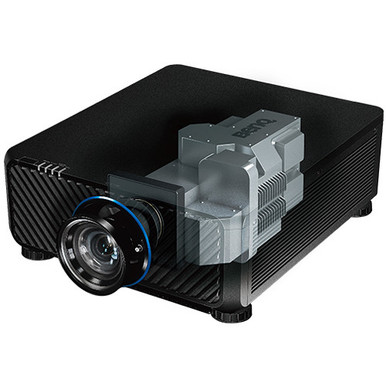

BenQ LU9715 Overview
The LU9715 WUXGA 8000-Lumen DLP Projector from BenQ delivers 8000 ANSI lumens of brightness and 100,000:1 contrast ratio. It offers WUXGA native resolution (1920 x 1200) for detailed clarity when high-resolution images are projected. The Blue Core laser engine provides significantly improved color performance through a dual color wheel system, with support for 360° and portrait installations and 24/7 operation for expanded application opportunities.
WUXGA native resolution (1920 x 1200)
Blue Core 1-chip DLP high brightness laser technology for large venue applications
Produces RGBY colors and a wider range of color gamut
Controls light output for quick response and clear images at a high contrast ratio of 100,000:1 with automatic brightness adjustments to retain clarity and subtle details in dark scenes and balance in bright scenes
Blue Core laser light source offers up to 20,000 hours of lamp life
360° and portrait projection accommodate different spaces
Built-in edge blending and geometric correction
BenQ LU9715 Specs
Image Display
| Display System | 1-Chip DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | VGA - 640 x 480 |
| Maximum Brightness | 8000 Lumens |
| Aspect Ratio | Native: 16:10 |
| Contrast Ratio | 100,000:1 |
| Scan | Horizontal: 15 to 92 kHz Vertical: 23 to 85 Hz |
Lens
| Projection Size | 80 - 500" / 203.20 - 1270.00 cm |
| Keystone Correction | Vertical: ± 30° Horizontal: ± 30° |

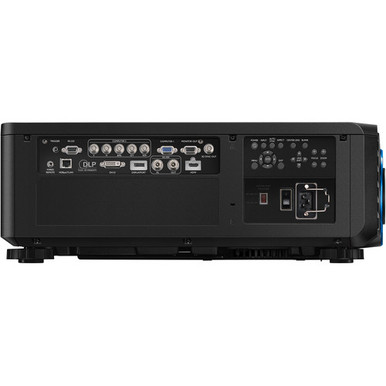

| Inputs/Outputs | 1 x VGA (DE-15/DB-15) Video Input 1 x 5BNC Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x HDMI (HDMI Type-A) Video 1 x DVI-D Video 1 x 3G-SDI (BNC) Video Input/Output 1 x DisplayPort Video Input/Output 1 x Ethernet (RJ45) LAN |
General
| Expected Lamp Life | Medium Brightness: 20,000 Hours Low Brightness: 45,000 Hours |
| Fan Noise | Medium Brightness: 40 dB Low Brightness: 37 dB |
| Supported Languages | Dutch English Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish |
| Power Consumption | Medium Brightness: 885 W Standby Mode (Lamp Off): < 0.5 W |
| Dimensions (W x H x D) | 19.7 x 8.3 x 23.0" / 500.0 x 211.0 x 583.0 mm |
| Weight lb | 61.7 lb |
1 Year Parts & Labor Manufacture Warranty
