High-Impact 86-inch 4K Commercial Digital Signage

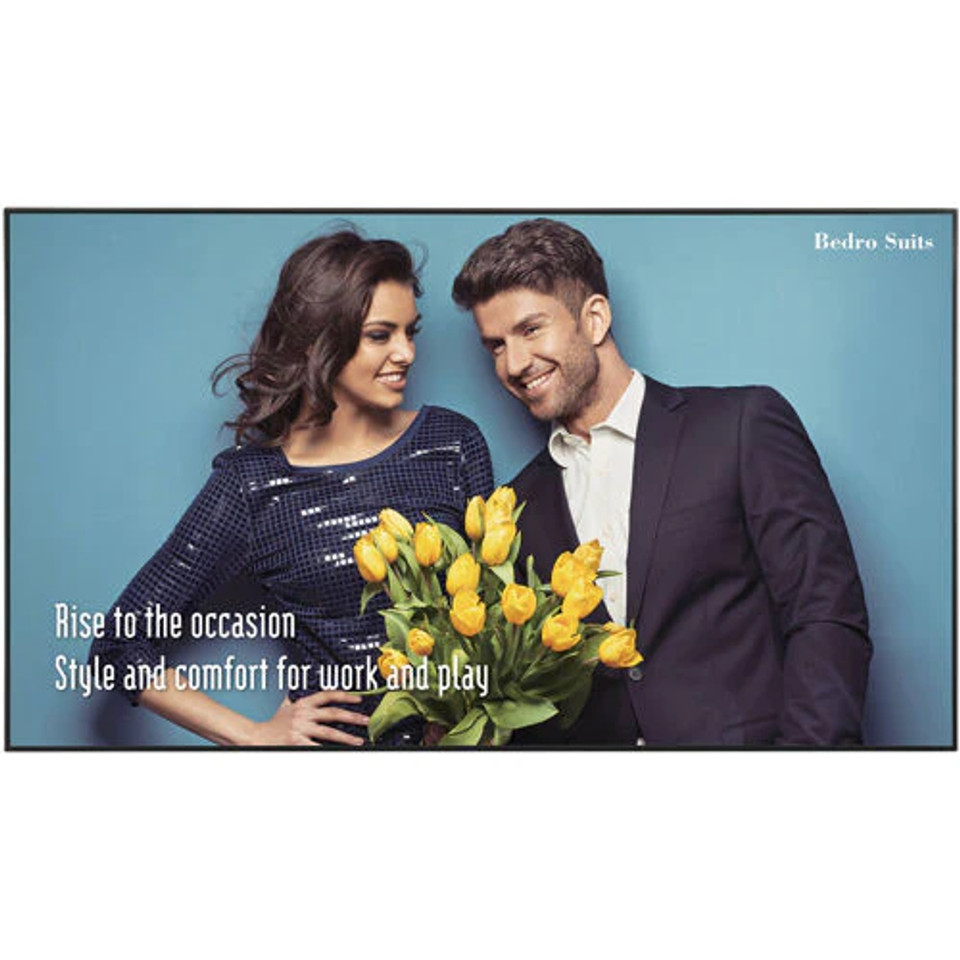

The Sharp PN-UH861 is a stunning 86" Class (85-5/8" diagonal) LED-backlit LCD display engineered for professional 16-hour, 7-day-a-week (16/7) operation. Deliver your message with exceptional detail using the brilliant 4K Ultra-HD (3840 x 2160) resolution. Perfect for boardrooms, lobbies, retail floors, and public venues where commanding visual presence and reliability are non-negotiable.
Key Commercial Features
-
Integrated ATSC/NTSC Tuner: Use the display for either static digital signage or live television broadcasts, making it versatile for any high-traffic area.
-
Built-in USB Media Player: Easily display 4K photos, videos, and music instantly without needing an external PC or set-top box, simplifying installation and reducing hardware costs.
-
Slim & ADA Compliant: The streamlined design has a depth of approximately 3.1 inches, making it ADA-compliant with minimal protruding parts for easy, sleek wall placement.
-
Centralized Control: Features LAN (RJ-45) and RS-232C interfaces for simple, centralized remote control and monitoring via a PC.
-
Public Mode & Lock Function: Prevents unauthorized adjustments to the display and remote control settings in public-facing environments
Technical Specifications
| Specification | Value |
| Native Resolution | $3,840 \times 2,160$ (4K UHD) |
| Brightness (Typical) | $400\text{ cd/m}^2$ |
| Contrast Ratio | $1,200:1$ |
| Response Time | $8\text{ ms}$ |
| Operation | $16/7\text{ Duty Cycle}$ |
| Viewing Angle | $178^\circ / 178^\circ$ (H/V) |
| VESA Mounting | $600 \times 400\text{ mm}$ |
| Built-in Speakers | $10\text{W} + 10\text{W}$ Stereo |
| Video Inputs |
$2 \times \text{HDMI}$, $1 \times \text{VGA}$ |
Product Identifiers & Dimensions
| Field | Value |
| Manufacturer Part Number (MPN) | PN-UH861 |
| Product UPC/EAN / GTIN | 89051859005 (Commonly associated EAN) |
| Weight (Display Only) | $110.2\text{ lbs}$ (Approx. $50\text{ kg}$) |
| Width | $75.88\text{ in}$ (Approx. $1,927\text{ mm}$) |
| Height | $43.25\text{ in}$ (Approx. $1,098\text{ mm}$) |
| Depth | $3.13\text{ in}$ (Approx. $79\text{ mm}$) |
