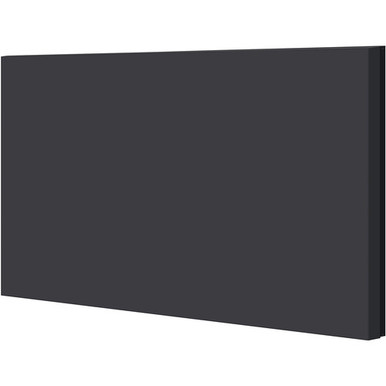

Panasonic TH-55VF2W VF2 55" Full HD Direct LED-Backlit IPS Video Wall Display

(No reviews yet) Write a Review
SKU:
TH-55VF2W
UPC:
885170372467
MPN:
TH-55VF2W
Condition:
New
Shipping:
Free Shipping
  • Panasonic VF2 55" Full HD Direct LED-Backlit IPS Video Wall Display
  • Panasonic VF2 55" Full HD Direct LED-Backlit IPS Video Wall Display
$5,149.00
Frequently bought together:

Description

Simplified and Seamless Multi-Screen System for Signage, Events, and Surveillance

The LCD display series supporting the Panasonic multi-screen system offers highly legible, high-quality images and convenient functions. The hidden areas limited to 0.44 mm on the top/bottom and left/right in the "ultra-narrow bezel design" of the VF2H/VF2 are not conspicuous, making them ideal for signage and surveillance use.

  • Narrow bezel for seamless video walls: The VF2H/VF2 use a hidden area with a 0.44 mm width on the top/bottom and left/right of the "ultra-narrow bezel design"
  • DIGITAL LINK simplifies installation at lower cost: Based on HDBaseT™ technology, the DIGITAL LINK connection onVF2H/VF2 display supports audio, video, and control signal transmission over long distances, and can also be used to daisy-chain multiple displa
  • IPS panel improves off-axis visibility: High-resolution IPS (In-Plane Switching) panel technology ensures that pictures displayed on screen remain clearly visible even when observed from oblique angles
  • Highly legible panel surface processing: The VF2H/VF2 employs a panel with Advanced Anti-Glare (AAG) processing that uses the concave/convex surface to diffuse light from the sun and lighting equipment
  • Backlight optimization improves contrast: Highly efficient direct-lit LED backlighting with Local Dimming assures high 500,000:1 contrast performance
  • Efficient 24/7 reliability in landscape or portrait mode: Durable panel materials and quality components ensures dependable 24-hour operation seven days a week

Specifications:

Screen Size (Diagonal)

54.6-inch (1387 mm )

Panel Type / Backlight

IPS / Direct  LED

Aspect ratio

16:9

Effective Display Area (W x H)

1209.6 x 680.3 mm / 47.6" x 26.7"

Resolution (H x V)

1920 x 1080

Brightness (typ)

500 cd/m2

Contrast Ratio (typ)

1100:1

Dynamic Contrast Ratio

500000:1

Max. Display Colors

approx. 1.07 Billion

Viewing Angle (Horizontal / Vertical)

178°/ 178° (CR ≧ 10)

Response Time (typ)

8.0 ms (G to G)

Panel Life (typ)*1

approx. 60000 hours

Panel Surface Treatment

Advanced Anti-glare type (Haze 28%)

CONNECTION TERMINAL

HDMI IN

HDMI Type A Connector x 1

Linear PCM

(Sampling frequency:48 kHz/44.1 kHz/32 kHz)

DVI-D IN

DVI-D 24-pin x 2

Compliance with DVI Revision 1.0 Compatible with HDCP 1.3

PC IN

Mini D-Sub 15-pin x 1 (Female)

Y/G

PB/CB/B

PR/CR/R

HD/VD

: with sync 1.0 V [p-p] (75 Ω )

: without sync 0.7 V [p-p] (75 Ω )

: without sync 0.7 V [p-p] (75 Ω )

: without sync 0.7 V [p-p] (75 Ω )

: 1.0 - 5.0 V [p-p] (high impedance)

Display Port IN

DisplayPort( DP1.1 Dual Mode Only) x 1

Linear PCM

(Sampling frequency:48 kHz/44.1 kHz/32 kHz)

AUDIO 1 IN

Stereo Mini Jack (M3) x 1

0.5 V [rms]

AUDIO 2 IN

L/R:Pin Jack x 1 set

0.5 V [rms]

SERIAL IN / OUT

D-sub 9pin x 1 / x 1, RS-232C Compatible



DIGITAL LINK IN

RJ45 x 1, Long Reach Mode (Shared with LAN IN)



DIGITAL LINK OUT

RJ45 x 1 (Shared with LAN OUT)



LAN IN / OUT

RJ45 x 1 / x 1, 100BASE-TX, Compatible with PJLinkTM (Shared with DIGITAL LINK)

IR IN / OUT

Stereo Mini Jack (M3) x 1 / x 1

AUDIO OUT

         L/R Pin Jack x1 set                                                                                          0.5 V [rms]

Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 k Ω Load)

USB

USB 2.0 Type A connector x 1 DC 5 V / 500 mA (USB3.0 is not supported.)

AUDIO

Speaker                                                                                            8Ω ,20 W [10 W + 10 W](10 %  THD)

ELECTRICAL

Power Requirements

AC 110 - 127 V 50 Hz/60Hz AC 220 - 240 V 50Hz/60Hz

Power Consumption

300 W

On Mode Average Power Consumption*

165 W

Power Off Condition

approx. 0 W

Stand-by Condition

approx. 0.5 W

Apparent power

312 W

*Based on IEC 62087 Ed.2 measurement method

MECHANICAL

Dimension (W x H x D)

1210.6 x 681.3 x 97.3mm / 47.658" x 26.820" x 3.829"

Weight

approx. 23.0 kg / approx. 50.7 lbs

Carton Dimensions (W x H x D)

1395 x 848 x 280mm / 55.0" x 33.4" 11.1"

Gross Weight

34 kg / 75.0 lbs

Cabinet Material / Color

Metal / Black

Bezel Width

T / B / R / L  0.44 mm / 0.018"

Pitch for Wall-Hanging

VESA Compliant 400 x 400 mm / 15.8" x 15.8" (Installed by: M6 screws / Screw hole depth 12 mm / 0.47")

INSTALLATION

Orientation

Landscape / Portrait

Tilting Angle

Landscape : 0 - 0 degrees forward / backward Portrait : 0 - 0 degrees forward / backward

View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
