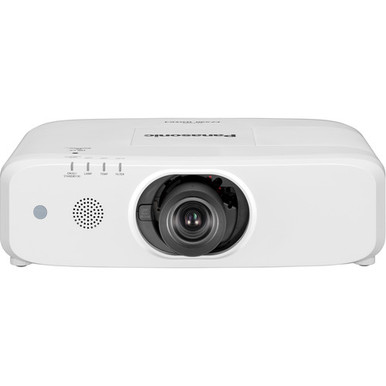

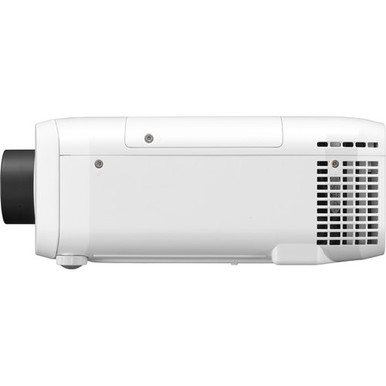

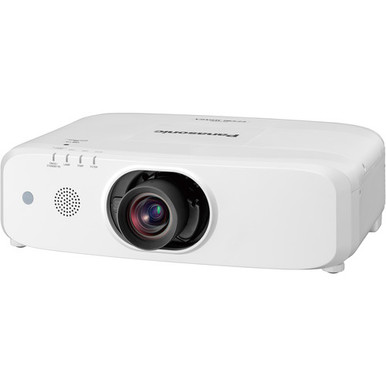

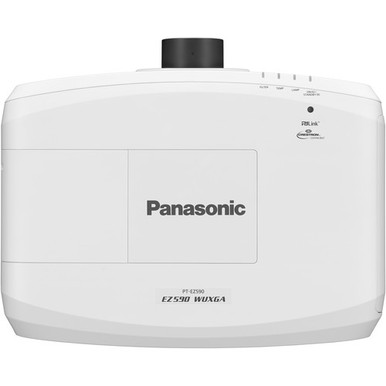

Panasonic PT-EZ590LU WUXGA 1080p 3LCD Projector with Speaker
- Free Shipping
Panasonic PT-EZ590LU Overview
Enjoy bright images in most settings with the Panasonic PT-EZ590LU 5400-Lumen WUXGA 3LCD Projector. It features up to 5400 lumens of brightness and a 10,000:1 dynamic contrast ratio, which work together to overcome light in most rooms and provide detail in dark areas of the image. Additionally, this projector sports WUXGA 1920 x 1200 native resolution for viewing detailed pictures or data.
No lens is included with the PT-EZ590LU, and one must be purchased separately. The PT-EZ590LU features 5-BNC, VGA, RCA composite video, and two HDMI inputs. It is controllable via Ethernet, RS-232, or the included IR remote control.
- Brightness of 5400 Lumens
- WUXGA (1920 x 1200) Native Resolution
- Uses Separately Sold Lenses
- 5-BNC, VGA, RCA Composite, 2 x HDMI In
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Integrated 10-Watt Speaker
- Ethernet and RS-232 Controllable

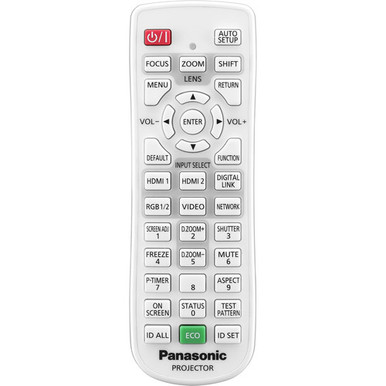

- IR Remote Included
5400 Lumens of Brightness
With up to 5400 lumens of brightness, the PT-EZ590LU can produce clear images even in rooms with high ambient light.
Dynamic Contrast of 10,000:1 with Iris Control
The 10,000:1 dynamic contrast ratio is enabled by an iris mechanism, so whites are brighter and blacks deeper with minimal loss of detail in dark images for comfortable viewing.
The PT-EZ590LU features a native resolution of WUXGA (1920 x 1200), but supports resolutions up to Full HD for detailed image reproduction.
Daylight View Basic Helps Ensure Vivid Images in Bright Rooms
Daylight View Basic uses a built-in sensor to measure ambient light and calibrates image projection to suit, enhancing brightness and halftone color while sharpening details for easy-to-see pictures in well-lit environments.
DICOM Simulation Mode for Medical Presentations
The PT-EZ590LU offers a DICOM Simulation mode that allows the projector to simulate the results of devices compliant with the Digital Imaging and Communications in Medicine (DICOM) Part 14 standardized display function, for display of grayscale images. The DICOM Simulation mode, which supports both Blue and Clear Base, adjusts the gradation between the minimum and the maximum luminance, so gradation is distributed optimally. This feature is optimized for displaying medical images such as X-rays, CAT scans, and MRIs, making the PT-EZ590LU useful for non-diagnostic purposes such as lectures, academic meetings, and hospital conferences. This feature is recommended for use in medical schools for training and educational use only.
Color Adjustment for Multi-Screen Projection
This function corrects subtle variations in the color reproduction range of individual units set up for multi-screen projection, particularly in side-by-side configuration.
Simplified Installation with DIGITAL LINK
The EZ590LU features a DIGITAL LINK connection that supports transmission of Full HD video, audio, and control signals through a single Cat5e (or higher) STP cable for distances up to 492'. An optional DIGITAL LINK Switcher or Digital Interface Box allows for source devices to be connected and signals routed to the projector via one cable, saving installation cost and simplifying the A/V system.
Powered Lens Shift, Zoom, and Focus via the Remote Control
The adjustment range of the powered lens-shift function helps assure convenience and versatility during installation. Zoom and focus can also be adjusted via the remote control. A lens is required and sold separately.
Project onto Curved Surfaces
Horizontal, Vertical, and Corner Keystone Correction adjust the image shape for clear visibility when projecting off-axis or from an unusual angle. Curved Screen Correction allows for the projection of distortion-free images onto curved or cylindrical surfaces.

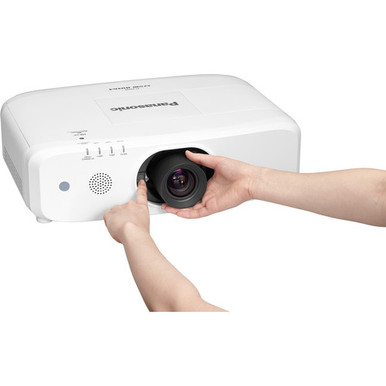

Lens Options Available
Choose from a selection of optional lenses for your system. The lens options make it easier to adapt the projector to the installation site. Lenses are designed to attach and detach with one-touch ease. A lens is required and sold separately.
Mechanical Lens Shutter
A mechanical lens shutter prevents light leakage when the projector is on standby mode or temporarily not in use, such as periods during meetings.
A symmetrical lens-centered design reduces installation complexity and makes these projectors easier to adapt to a wider range of installation sites.
Project Wirelessly with Optional Module
The optional ET-WML100 wireless USB module enables projection of a variety of media via Windows computers, iOS devices, or Android devices loaded with an appropriate app. You can also display content from more than one device at a time in Multi-Live mode.
- Presenter Light for Windows computers allows you to project stills, video, PDF and PowerPoint files, and other media from your computer screen directly through the projector. Up to four computers can be projected simultaneously.
- VueMagic Pro for iOS and Android devices allows selected still image and document formats, including PDF files, to be projected. Live Camera mode and Annotate mode are featured, and images from up to four devices can be projected simultaneously.
Integrates into Existing AV Infrastructure
With support for PJLink Class 1, Crestron Connected, AMX, and RS-232C over wired LAN, virtually any legacy unit can be swapped out for a PT-EZ590LU projector without disrupting existing control and management infrastructure. Emulation via RS-232C allows your original settings to be preserved. In addition, Multi-Monitoring and Control software are available for monitoring and controlling multiple Panasonic projectors from a single computer.
Extended Lamp Replacement Cycle
The PT-EZ590LU projector features a lamp replacement cycle up to 5000 hours with the lamp power set to Eco mode, or up to 4000 hours with the lamp power set to Normal mode.
Dust-Resistant Cabinet and Eco Filter
The PT-EZ590LU is designed to protect against dust intrusion with a one-way airflow design and enhanced sealing for the lens block, air intake duct, and Eco Filter. The electrostatic Micro Cut Filter is engineered to capture dust particles and requires no maintenance for up to 15,000 hours. It can also be washed and reused. It is designed to maintain brightness for longer in high-traffic environments while reducing servicing costs.
A variety of Eco Management functions are accessible via a button on the remote control. These include brightness optimization for ambient lighting conditions and lamp power reduction when no input signal is detected.
Quiet Operation in Eco Mode
The quiet design reduces operating noise to just 29 dB in Eco mode.

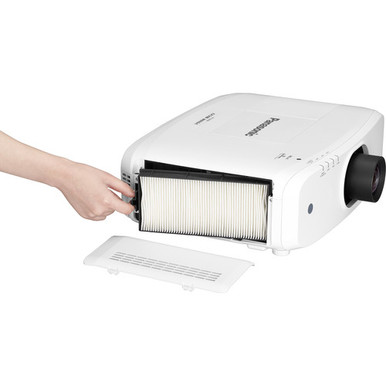

Easy-Access Lamp and Filter
To reduce hassle, the filter can be replaced via the side and the lamp from the top of the projector. There is no need to remove the unit from its ceiling mount for periodic maintenance.
- Power-saving Eco Standby mode draws just 0.3W
- Direct Power Off enables safe projector shutdown via a breaker switch
- Anti-theft measures include security bar, password protection, and personalized startup logo
- Closed captioning (NTSC, 480i YCbCr)
- Schedule function
Panasonic PT-EZ590LU Specs
|Display System||0.64" LCD|
|Native Chip Resolution||1920 x 1200 (WUXGA)|
|Maximum Brightness||5400 Lumens|
|Aspect Ratio||Native: 16:10|
|Scan||Horizontal: 15 to 90 kHz |
Vertical: 24 to 100 Hz
|Lens Shift||Vertical: ± 60% |
Horizontal: ± 30%
|Keystone Correction||Vertical: ± 25° |
Horizontal: ± 30°
|Rear Screen Projection||Yes|
|Built-In Speaker||Yes (Mono)|

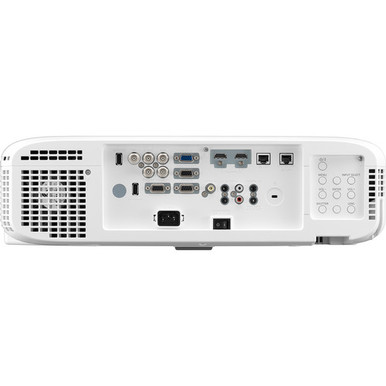

|Inputs/Outputs||2 x HDMI (HDMI Type-A) Audio, Video Input |
1 x 5BNC Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Output
1 x Composite (RCA) Video Input
1 x 2RCA Audio Input
2 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
2 x Ethernet (RJ45) LAN Input/Output
1 x USB 2.0 (USB Type-A) Data Input
1 x USB 2.0 (USB Type-A) Power Output
2 x DE-9/DB-9 Control
1 x 1/8" / 3.5 mm Mini Remote Input
|Memory Card Slot||None|
|Wireless LAN / Wi-Fi||No, Optional Adapter Available|
|Light Source||Lamp (1 x UHM)|
|Lamp Power||320 W|
|Expected Lamp Life||Full Brightness: 4000 Hours |
Low Brightness: 5000 Hours
|Fan Noise||Full Brightness: 35 dB |
Low Brightness: 29 dB
|Security||Cable Lock Slot |
|Power Consumption||Full Brightness: 484 W |
Low Brightness: 325 W
Standby Mode (Lamp Off): 12 W
|Dimensions (W x H x D)||19.6 x 5.7 x 14.1" / 498.0 x 145.0 x 358.0 mm Without lens|
|Package Weight||29 lb|
|Box Dimensions (LxWxH)||26 x 22 x 12"|
